UHF RFID Cable (TNC to RP-SMA)
This is a very simple 1m long TNC to RP-SMA cable. We like to use this cable to connect our ultra high-frequency RFID antennas to an equally powerful read...

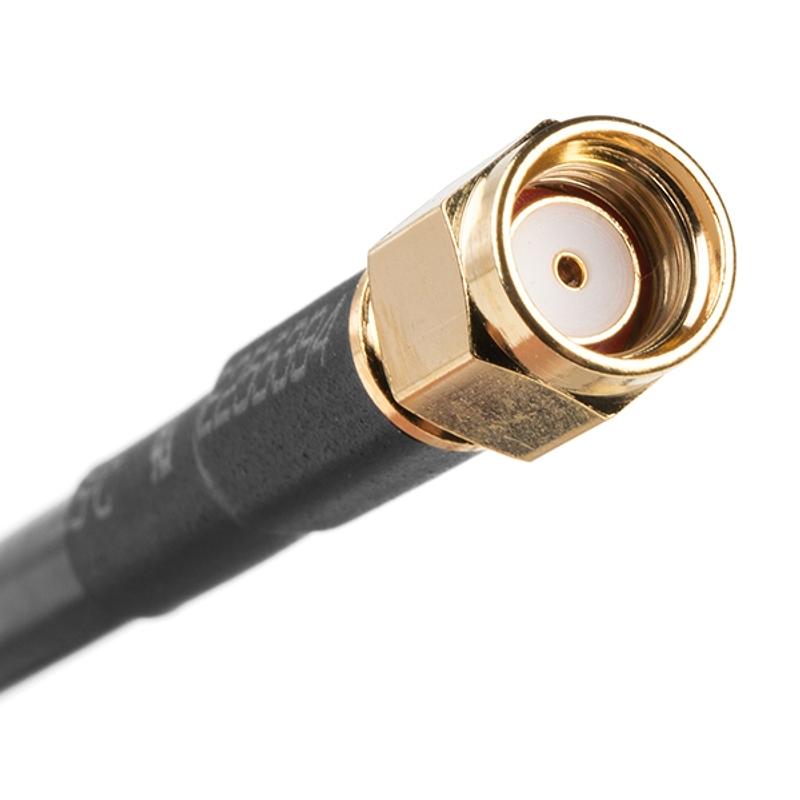

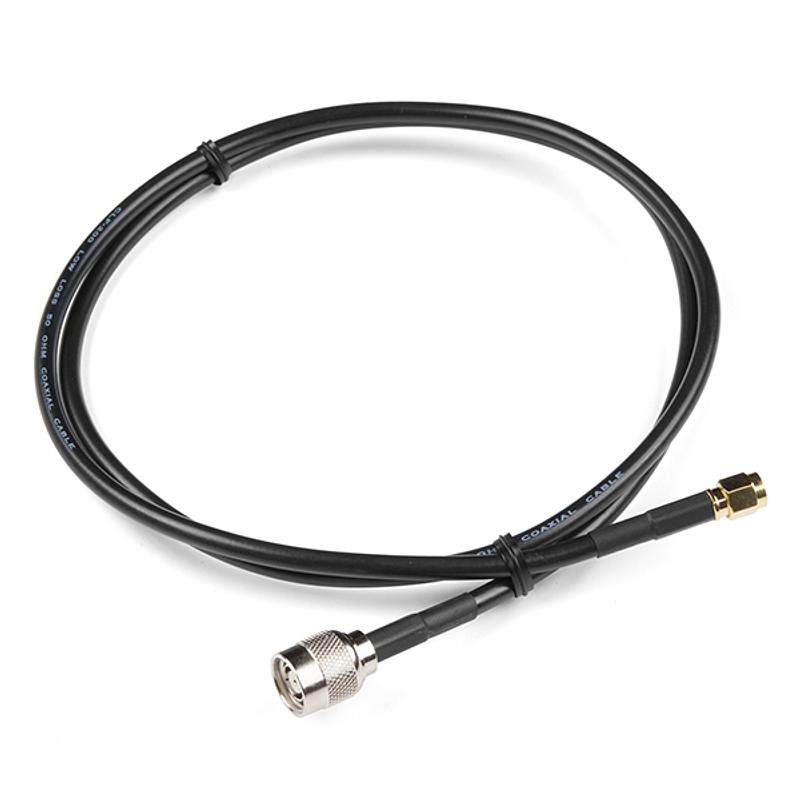

This is a very simple 1m long TNC to RP-SMA cable. We like to use this cable to connect our ultra high-frequency RFID antennas to an equally powerful reader board. This cable is perfect for extending pre-existing cables to give yourself a better range of operations when managing your RFID projects.
Each cable is capable of a nominal impedance of 50Ω with a cutoff frequency of 39GHz. If you are looking for a good antenna to pair this cable with, we recommend our UHF RFID Antenna.
Note: If you are looking to use this cable with the UHF RFID Antenna and the Simultaneous RFID Reader, you will also need the RP-SMA to U.FL Interface Cable to connect everything.
Documents:
Jargon buster
Plain-language definitions for the technical terms used above.
- SMA
- A threaded coaxial connector commonly used for antennas. It matters because you need antennas with matching SMA connectors, or suitable adapters, for the LTE and GNSS antenna ports.
Find this product in
Brands
UHF RFID Cable Datasheet
Datasheet · 176.2 KB · Click any page to view full size
UHF RFID Cable Dimensional Drawing
Mechanical Drawings · 51.5 KB · Click any page to view full size
Supplier page — sparkfun.com
Supplier Description · 352.1 KB · Click any page to view full size
