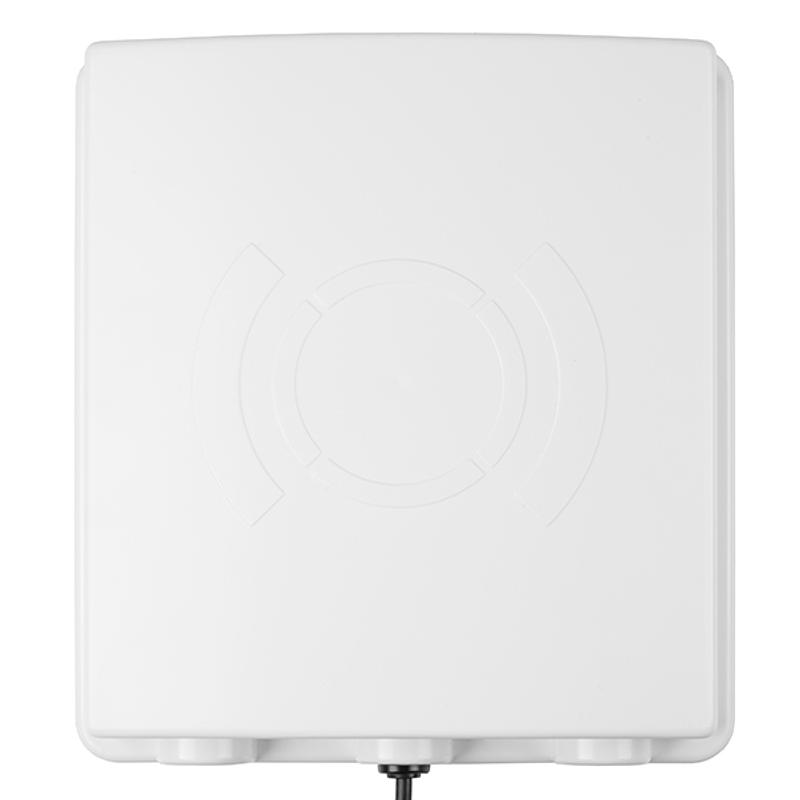

UHF RFID Antenna (TNC)

This is your solution when you absolutely, positively need to get the most out of an antenna for your next RFID project. This ultra high-frequency (UHF) RFID Antenna boasts a frequency range of 860-960 MHz with a gain of 6dBi. This is the same external antenna we use for our Simultaneous RFID Reader due to its high-quality features.

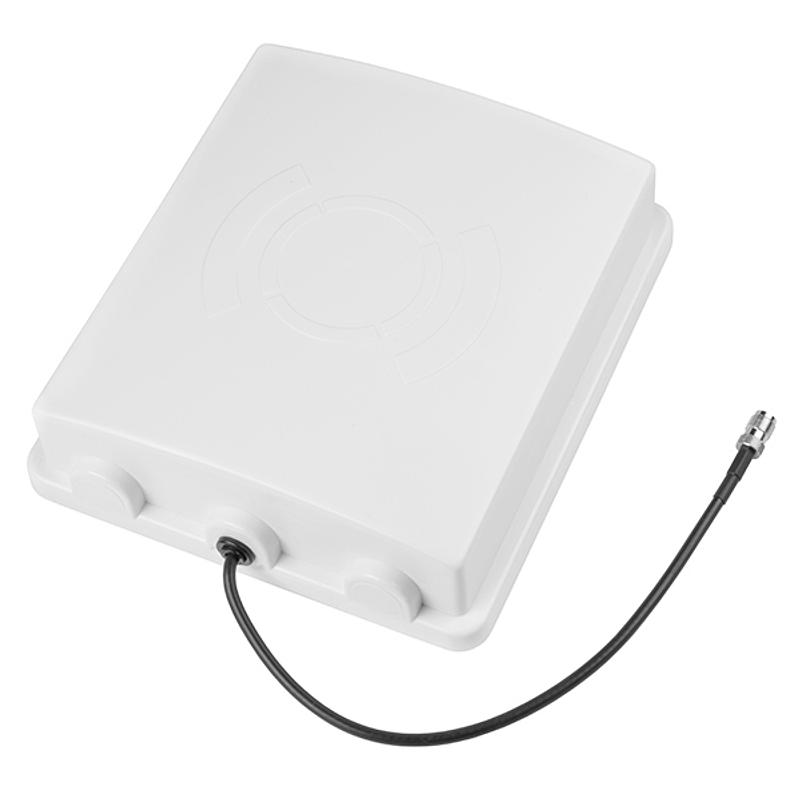

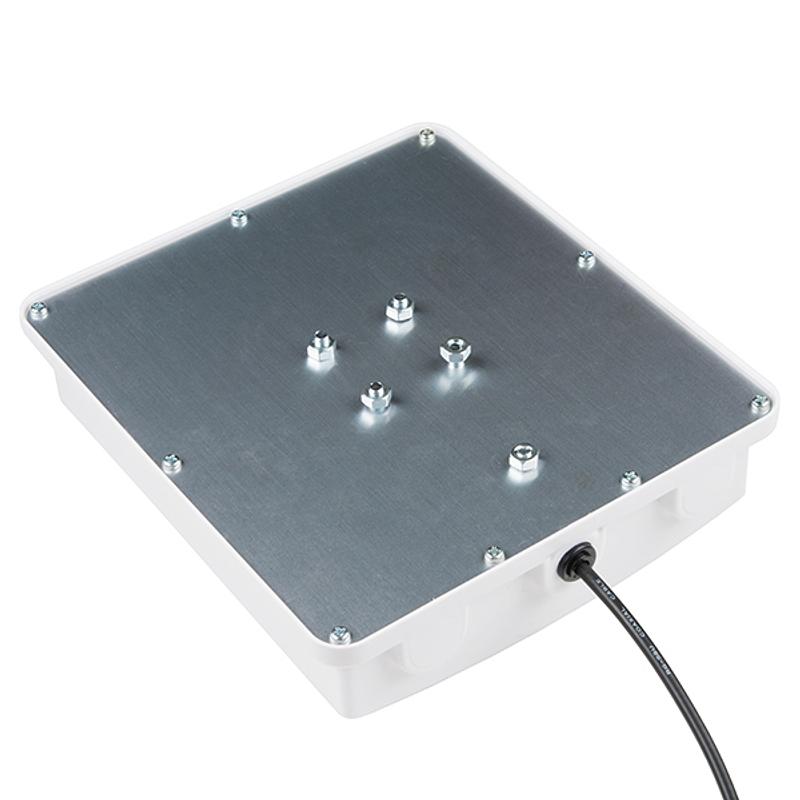

Each UHF RFID Antenna is terminated with a 30cm long TNC Female RP cable and also includes all the mounting gear you’ll need to attach it to any surface or post you need. If you need to extend the cable attached to the antenna, we offer additional cords to help you out!

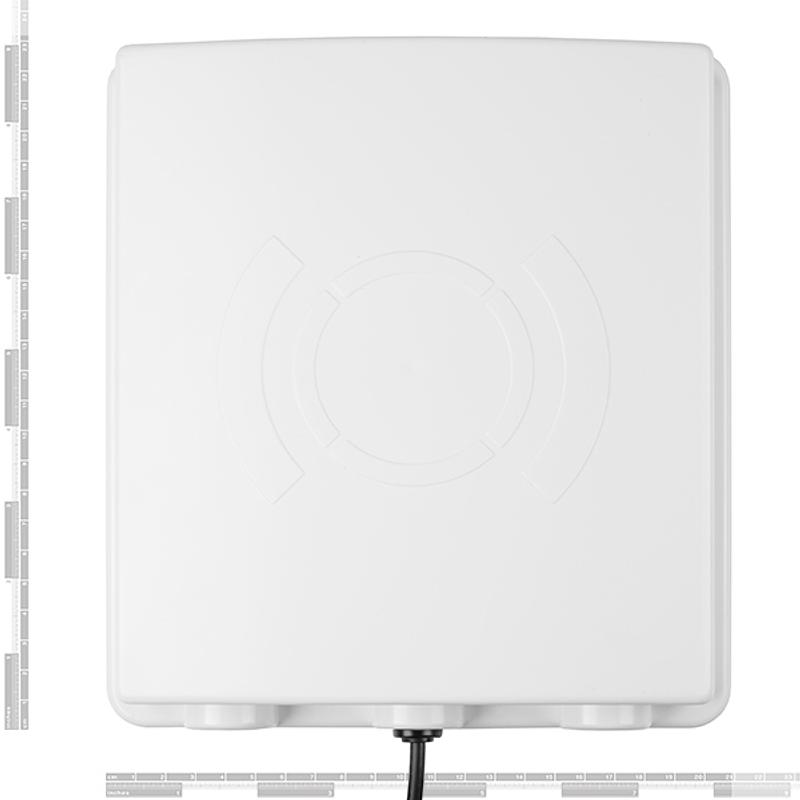

Dimensions: 223mm x 200mm x 60mm

Features:

• Frequency Range: 860-960 MHz
• Gain: 6 dBi
• VSWR: < 1.6 : 1
• Impedance: 50Ω
• Polarization: Linear Vertical
• Antenna Connector: TNC Female RP
• Max Power: 100W

Documents:

• Datasheet
• RFID Basics
• Simultaneous RFID Tag Reader Guide
