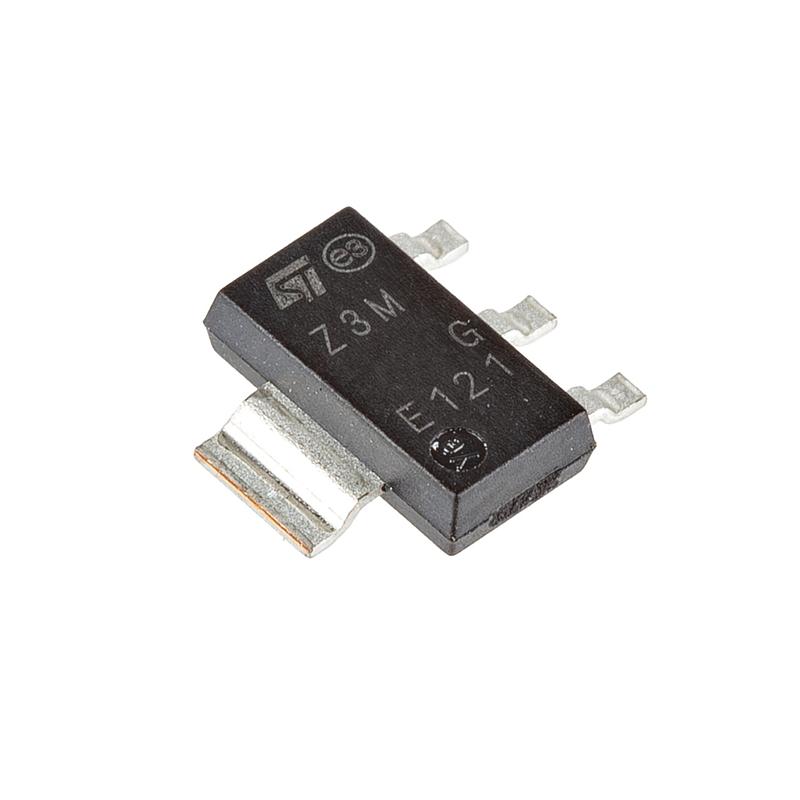

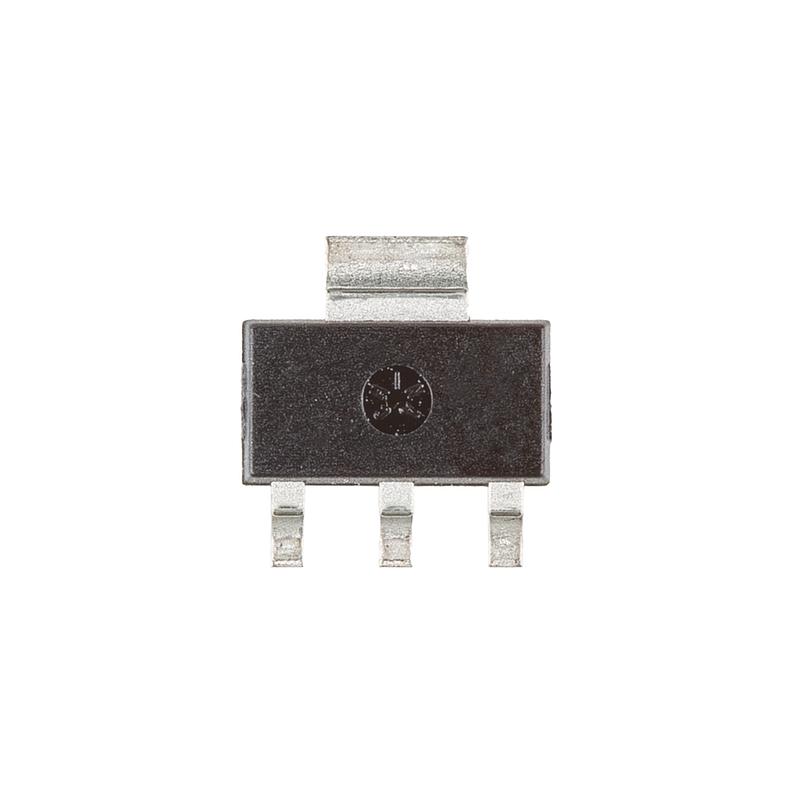

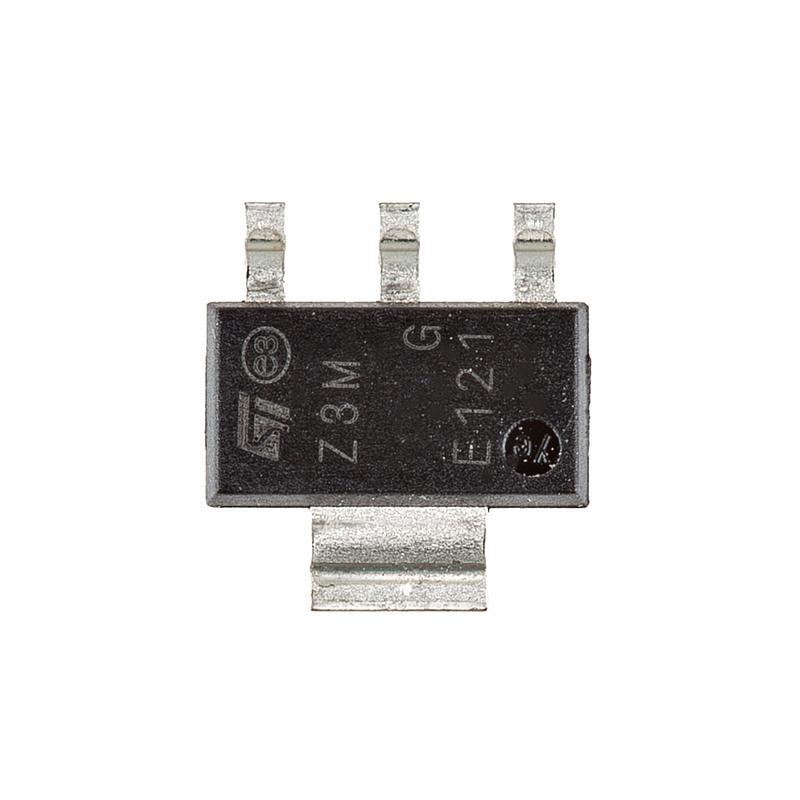

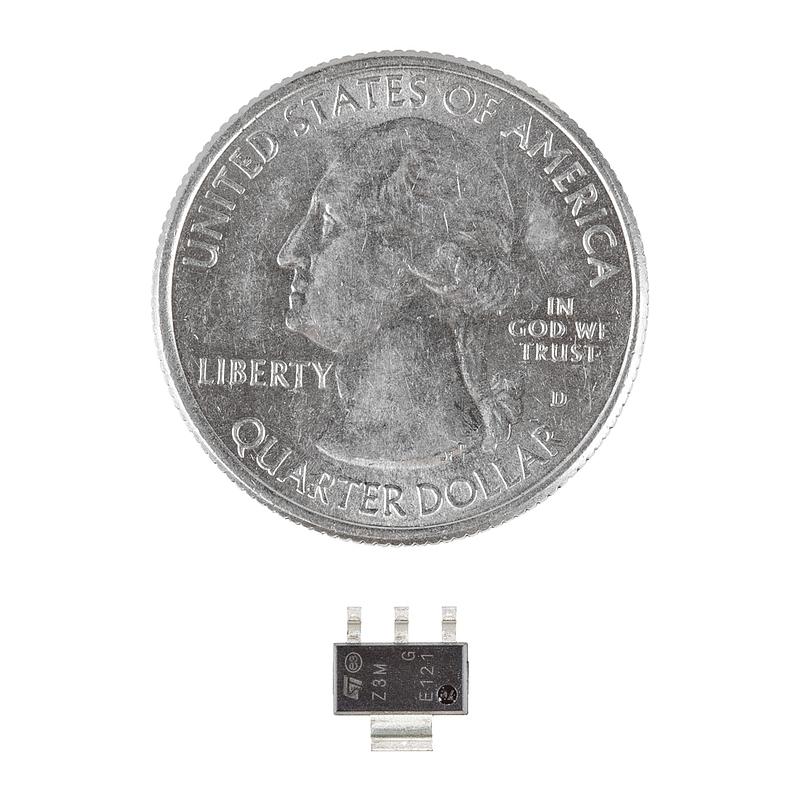

Z0103MN Sensitive Gate TRIAC - SOT223

This SOT223 surface-mount TRIAC is a planar passivated, four-quadrant device for AC switching applications.

Its very sensitive gate allows direct interfacing with logic-level ICs and low-power drivers, helping simplify circuit design and reduce component count.

The single TRIAC configuration suits compact surface-mount designs where a low gate trigger current is required.

Features:

• Planar passivated, four-quadrant TRIAC.
• Very sensitive gate.
• Direct interfacing with logic-level ICs and low-power drivers.
• Simplifies circuit design and reduces component count in AC switching applications.

Specifications:

• Triac Type: Logic - Sensitive Gate
• Voltage - Off State: 600V
• Current - On State (It (RMS)) (Max): 1A
• Voltage - Gate Trigger (Vgt) (Max): 1.3V
• Current - Non Rep. Surge 50, 60Hz (Itsm): 8A, 8.5A
• Current - Gate Trigger (Igt) (Max): 3mA
• Current - Hold (Ih) (Max): 7mA
• Configuration: Single
• Operating Temperature: 125°C (TJ)
• Mounting Type: Surface Mount
• Mfg #: Z0103MN,135
