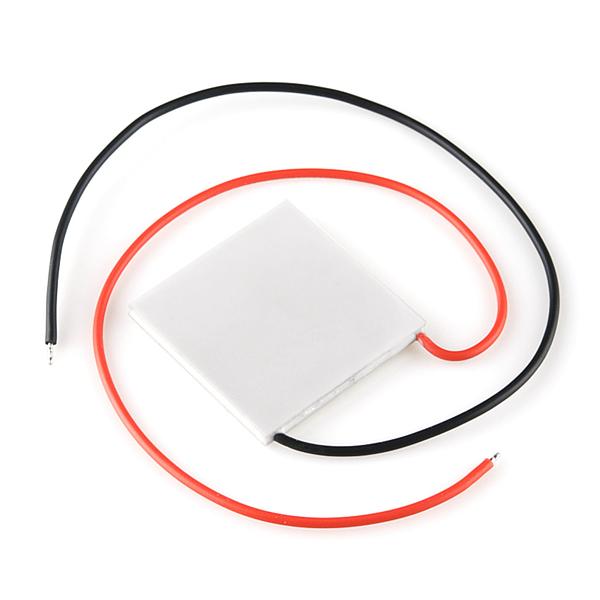

Thermoelectric Cooler - 40x40mm
Discontinued
This 40 × 40 mm thermoelectric cooler (TEC/Peltier module) creates a temperature differential between its two faces — one side heats up while the other cools down. It can be used for active cooling, heating, or even small-scale thermoelectric power generation from a temperature gradient.
The module contains 127 thermocouples and operates at up to 7 A, delivering a maximum cooling capacity of 62.2 W. A heatsink on the hot side is essential to maintain the temperature differential and prevent damage.
Key Features
- Peltier Effect – One side heats, the other cools for active thermal management
- 127 Thermocouples – High cooling capacity in a compact module
- Reversible – Swap polarity to switch heating and cooling sides
- Thermoelectric Generation – Can also generate electricity from a temperature differential
Specifications
- Dimensions – 40 × 40 × 3.6 mm
- Imax – 7 A
- Umax – 15.4 V
- Qc(max) – 62.2 W
- ΔTmax – 69 °C
- Resistance – 1.7 Ω
- Thermocouples – 127
- Operating Temperature – −50 °C to 180 °C
Ideal For
- Active cooling of electronics and enclosures
- Temperature-controlled chambers and experiments
- Thermoelectric power generation projects
- Beverage coolers and small refrigeration builds
Warning: A heatsink must be attached to the hot side of the module during operation. Running without adequate heat dissipation will cause the module to reach thermal equilibrium and may result in permanent damage.
Package Contents
- 1× Thermoelectric cooler module (40 × 40 mm)
