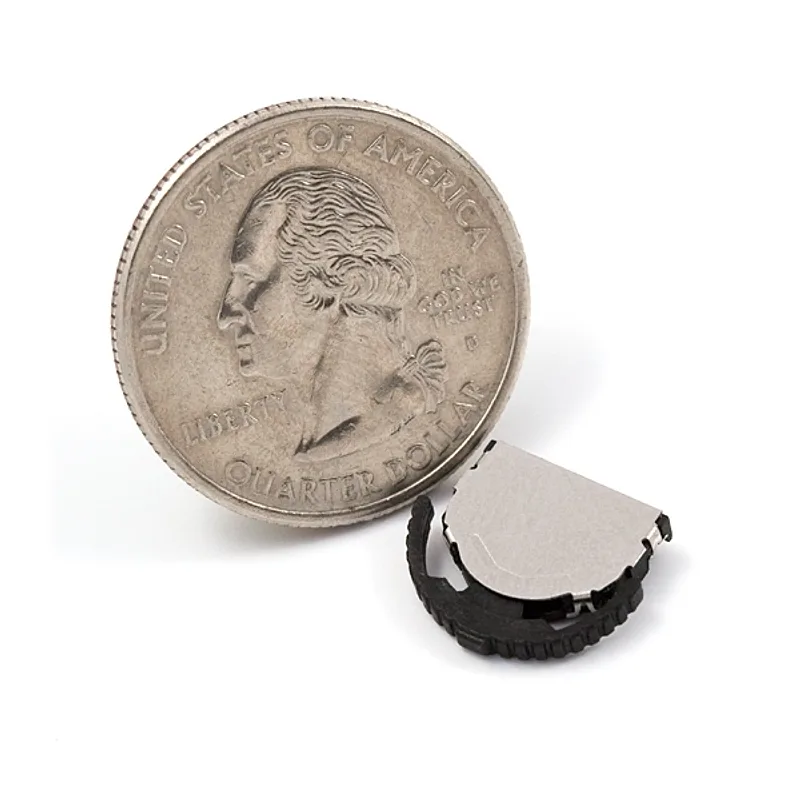

Surface Mount Navigation Switch
A compact 3-way surface-mount navigation switch commonly found in handheld devices like MP3 players. The switch provides up, down, and centre-press (select) ...
A compact 3-way surface-mount navigation switch commonly found in handheld devices like MP3 players. The switch provides up, down, and centre-press (select) actions in a single low-profile package — ideal for menu navigation interfaces in custom electronics projects.
Key Features
- 3-Way Navigation – Up, down, and centre-press select
- Surface Mount – Low-profile SMD package for compact PCB designs
- 1.2 VA Switching Capacity – 360 mA at 3.3 V or 240 mA at 5 V
Specifications
- Type: 3-way navigation switch (up/down/select)
- Mounting: Surface mount (SMD)
- Max Switching Power: 1.2 VA
- Max Current: 360 mA @ 3.3 V / 240 mA @ 5 V
Ideal For
- Menu navigation on custom handheld devices
- Compact user interfaces on embedded projects
- Custom PCB input controls
Package Contents
- 1× Surface Mount Navigation Switch
Resources
Jargon buster
Plain-language definitions for the technical terms used above.
- PCB
- A printed circuit board is a rigid board with copper tracks that connect electronic parts without loose wires. For this kit, the PCBs also form the airplane shape, so they are both the circuit base and part of the finished model.
