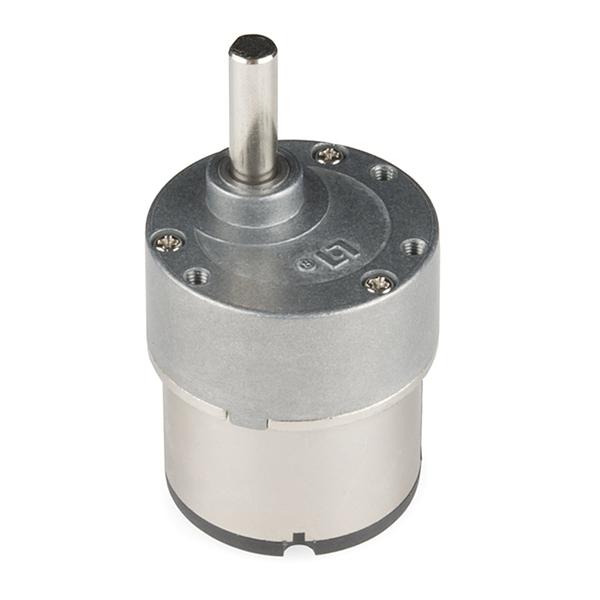

Standard Gearmotor - 4 RPM (3-12V)
Discontinued
A robust standard gearmotor with full metal gears and a 900:1 gear ratio, delivering high torque at low speed. Operating from 3–12V, it provides 992 oz-in stall torque and 4 RPM at 12V — ideal for driving wheels, gears, and mechanisms that require strong, slow rotation.
Key Features
- Full Metal Gears – Durable construction for demanding applications
- 900:1 Gear Ratio – High torque, low speed output
- 992 oz-in Stall Torque – Powerful drive capability at 12V
- DC Reversible – Change direction by reversing polarity
- 6mm D-Shaft – Standard output shaft
Specifications
- Voltage: 3–12V
- Gear Ratio: 900:1
- Speed: 4 RPM @ 12V
- Stall Torque: 992 oz-in @ 12V
- No-Load Current: 160mA @ 12V
- Stall Current: 0.5A @ 12V
- Insulation Resistance: 10 MΩ
- Dielectric Strength: 300V DC
- Shaft: 6mm diameter × 0.715" length, D-shaped
- Weight: 133g (4.7 oz)
Ideal For
- Robotics requiring high torque at low speed
- Driving wheels and gear mechanisms
- Automated turntables and rotating platforms
