SparkFun XBee Explorer Regulated
The SparkFun XBee Explorer Regulated takes care of the 3.3V regulation, signal conditioning, and basic activity indicators (Power, RSSI and DIN/DOUT activity...

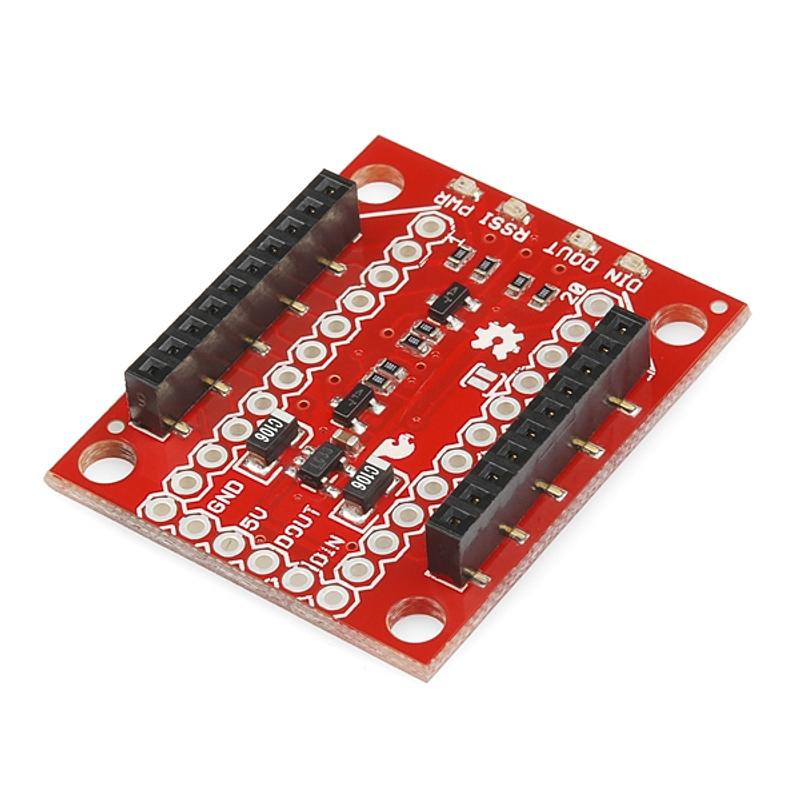

The SparkFun XBee Explorer Regulated takes care of the 3.3V regulation, signal conditioning, and basic activity indicators (Power, RSSI and DIN/DOUT activity LEDs). It translates the 5V serial signals to 3.3V so that you can connect a 5V (down to 3.3V) system to any XBee module. The board was conveniently designed to mate directly with the SparkFun Arduino Pro series of boards for wireless bootloading and USB based configuration.

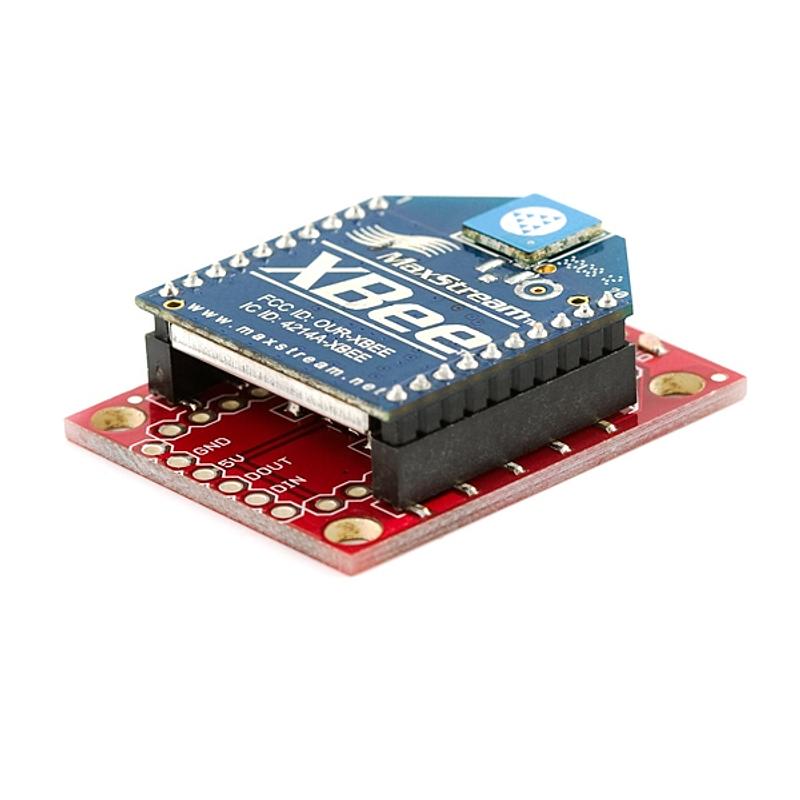

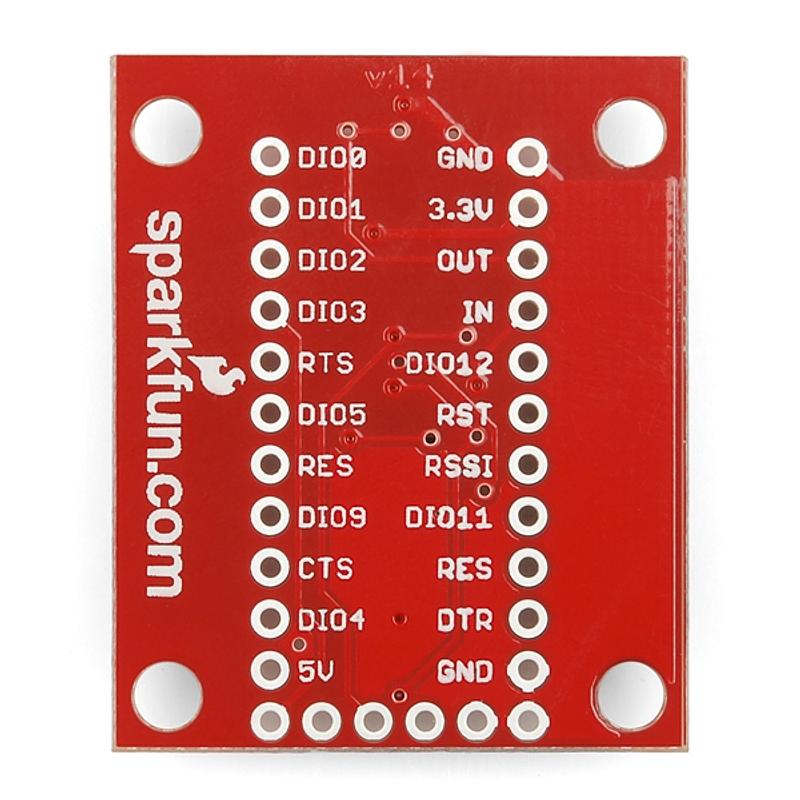

This unit works with all XBee modules including the Series 1 and 2, standard and Pro versions. Plug an XBee into this breakout and you will have direct access to the serial and programming pins on the XBee unit and will be able to power the XBee with 5V.

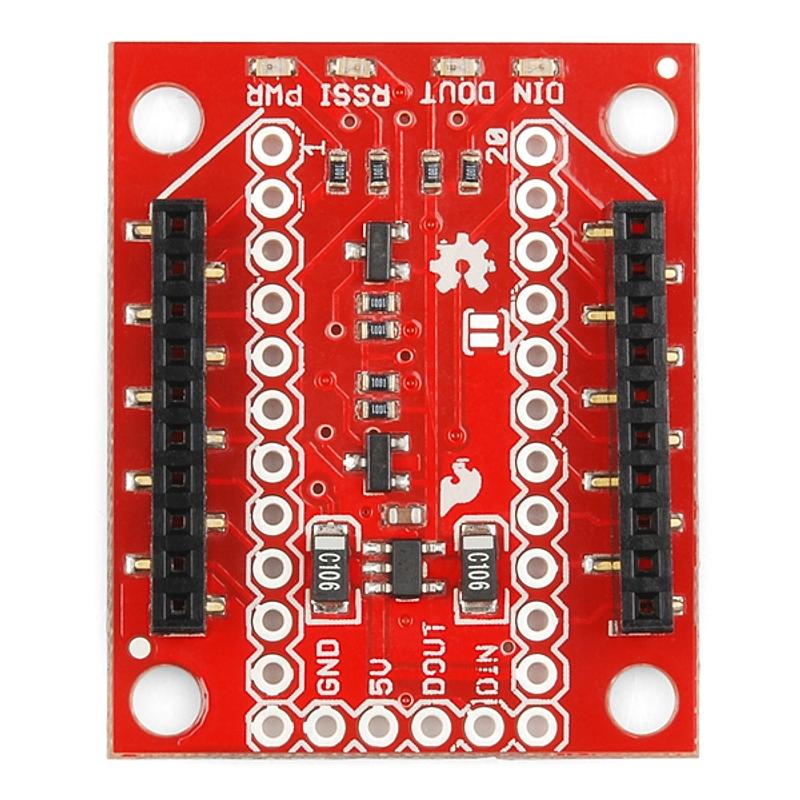

This board comes fully populated with 3.3V regulator (5V max input), XBee socket, four status LEDs, and level shifting. In the latest revision the diode level shifter is replaced with a more robust MOSFET level shifter. This board does not include and XBee module. XBee modules sold below.
Documents:
Jargon buster
Plain-language definitions for the technical terms used above.
- 3.3V regulator
- A 3.3V regulator is a power circuit that provides a steady 3.3 volts for parts that need that supply voltage. On a breakout board, it can let the sensor run safely even when the connected microcontroller or power source uses a higher voltage.
- breakout
- A breakout is a small circuit board that makes a tiny or hard-to-solder component easier to connect to with standard pins. It matters because this OLED module can be wired into a microcontroller project without needing to solder directly to the display’s fine contacts.
- DIN
- DIN means data in, the pin where this display receives data from the controller. Connecting DIN to the correct SPI data output pin is needed for the screen to receive pixel and command information.
Find this product in
Brands
XBee Explorer Regulated Schematic
Schematic · 48.8 KB · Click any page to view full size
Supplier page — sparkfun.com
Supplier Description · 646.4 KB · Click any page to view full size
