SparkFun USB UART Serial Breakout - CY7C65213
The CY7C65213 USB to UART serial breakout is designed to provide users with a means to access all available I/O pins on the IC, and to provide a 6-pin UAR...

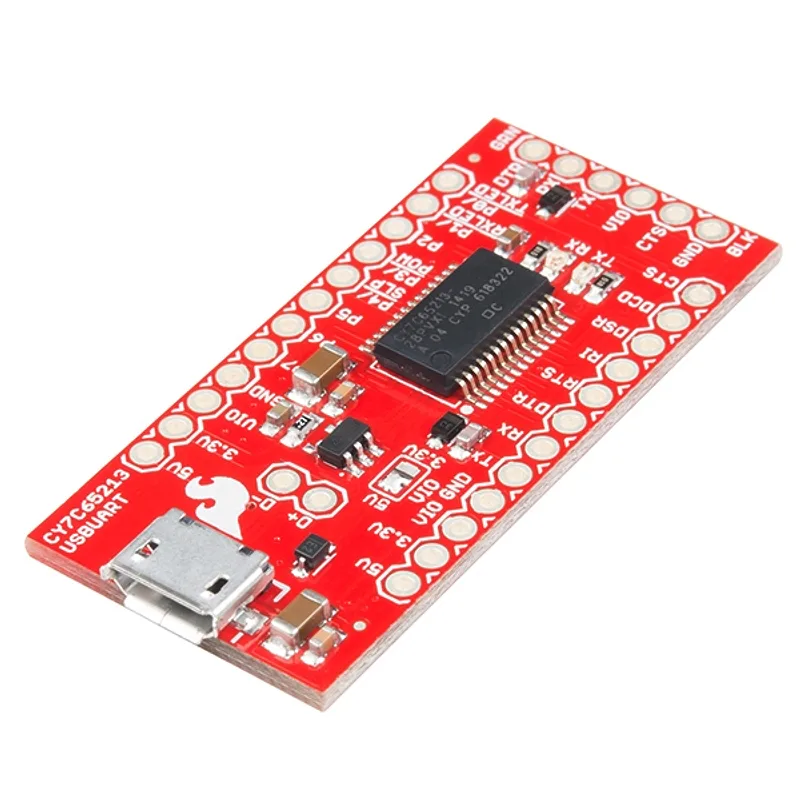

The CY7C65213 USB to UART serial breakout is designed to provide users with a means to access all available I/O pins on the IC, and to provide a 6-pin UART header that is compatible with other SparkFun breakout boards. This breakout has a microUSB connector and other support circuitry to get the IC quickly up and running.
The CY7C65213 breakout is equipped with a micro-B USB port, USB signal lines, a VIO selection jumper, a low-voltage selection jumper, and a multitude of pins that allow you to utilize the board to its fullest potential. The CY7C65213 breakout is capable of operating at both 3V and 5V based on what the VIO selection jumper is set to. Additionally this breakout can operate at 2V and below.
Get Started with the CY7C65213 Breakout Guide
Documents:
- Schematic
- Eagle Files
- Hookup Guide
- Datasheet (CY7C65213)
- Cypress USB UART SDK
- GitHub
Jargon buster
Plain-language definitions for the technical terms used above.
- breakout
- A breakout is a small circuit board that makes a tiny or hard-to-solder component easier to connect to with standard pins. It matters because this OLED module can be wired into a microcontroller project without needing to solder directly to the display’s fine contacts.
- UART
- UART is a simple serial connection that sends data over separate transmit and receive wires, often labelled TX and RX. It matters because this module is designed to replace a wired UART cable with a wireless link while keeping the same serial data format.
