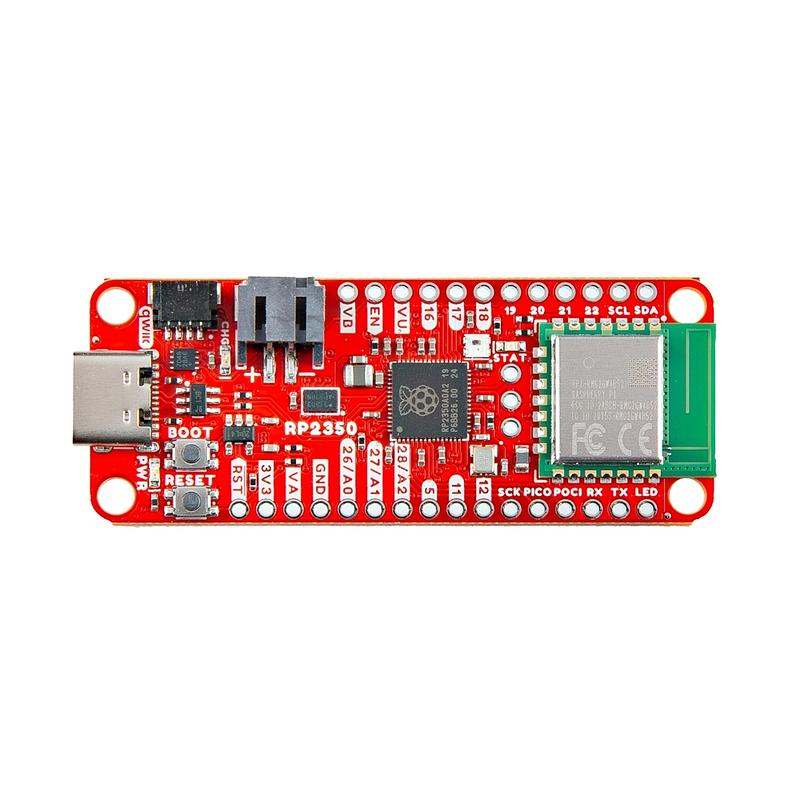

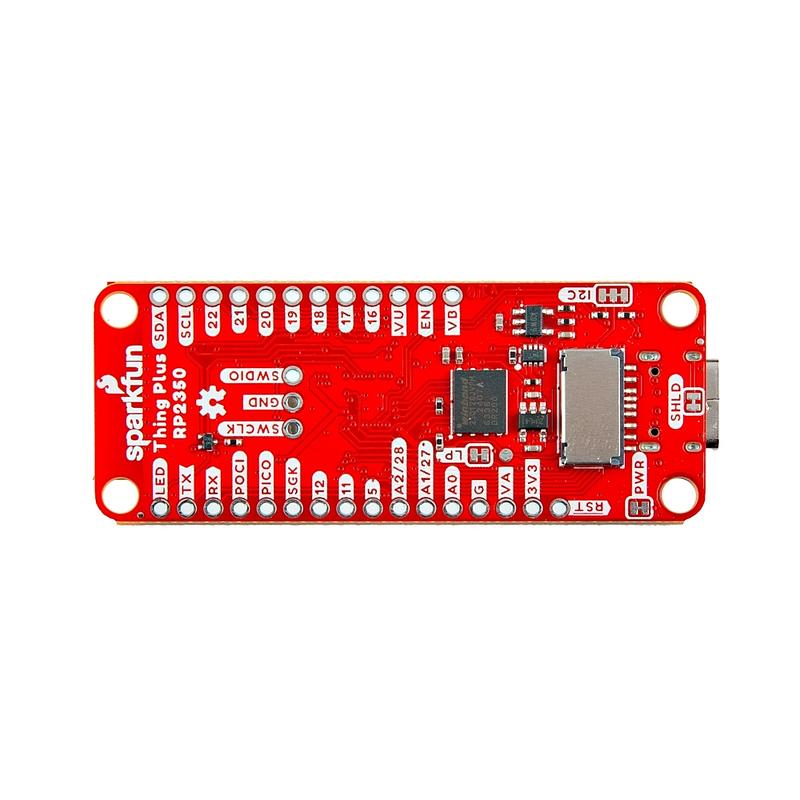

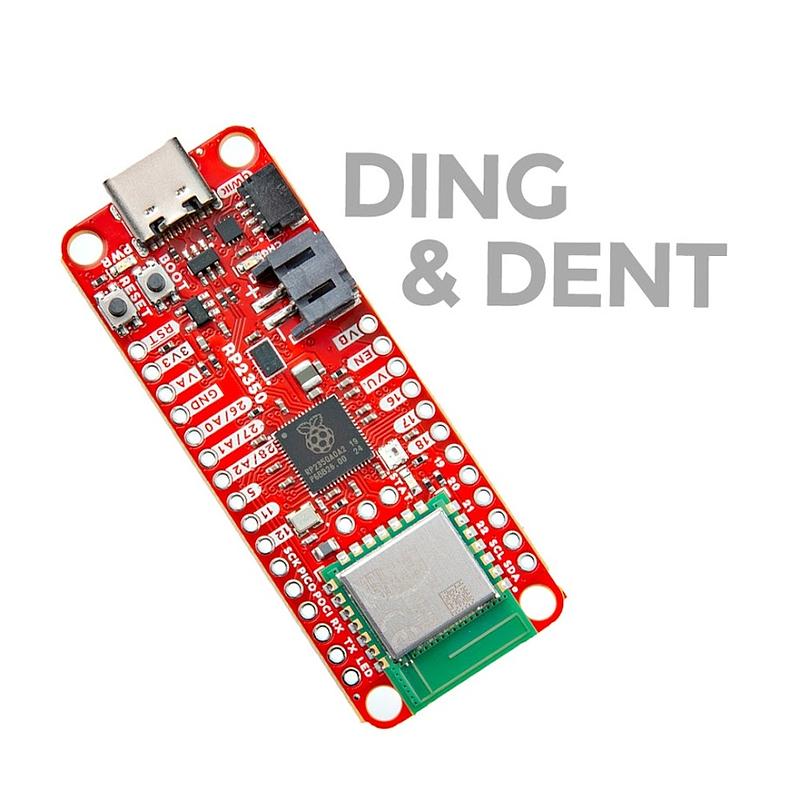

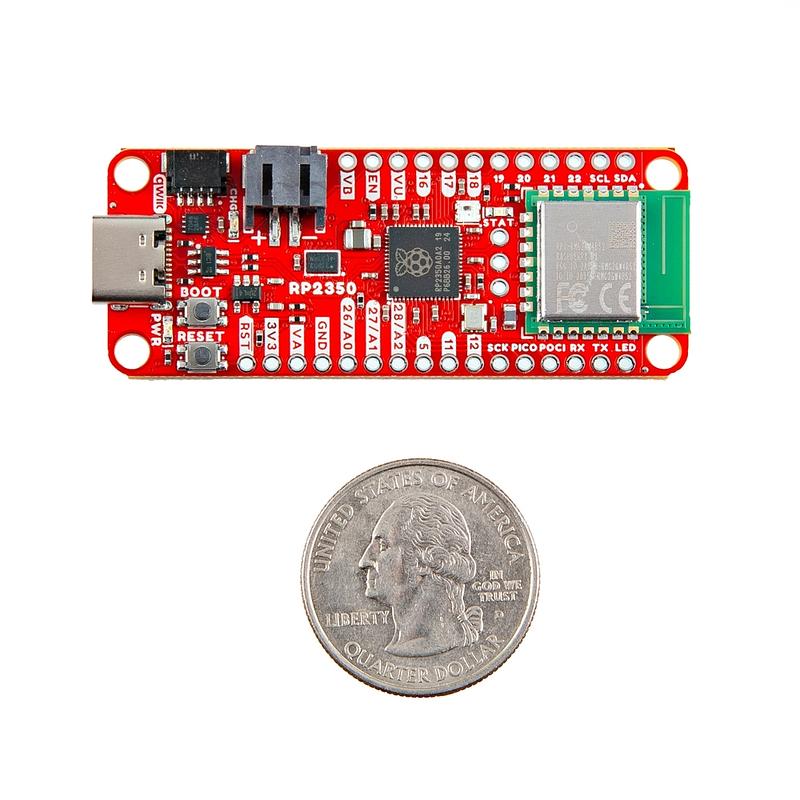

Thing Plus RP2350 Wireless Development Board (Ding & Dent)

Jargon buster

Plain-language definitions for the technical terms used above.

5V-tolerant

5V-tolerant means an input pin can safely accept a 5V logic signal even if the device itself runs at a lower voltage. It matters because it reduces the risk of damaging the module when connecting it to 5V microcontroller boards.

BLE

BLE stands for Bluetooth Low Energy, a Bluetooth mode designed for lower power use and modern phone compatibility. It matters because BLE support can make the module easier to use with Apple devices and battery-powered projects, though it may behave differently from classic serial Bluetooth.

CircuitPython

A beginner-friendly version of Python designed to run directly on microcontroller boards. If a product supports CircuitPython, you can often program it by copying code files onto the board rather than setting up a more complex toolchain.

GPIO

General-purpose input/output pins are microcontroller pins you can set in software to read signals, switch devices on and off, or connect to peripherals. The number of GPIO pins matters because it limits how many buttons, LEDs, sensors, and other parts you can wire directly to the board.

HSTX

HSTX is a high-speed transmit interface on RP2350-based boards for sending fast digital signals such as video-style data. It matters because it uses carefully routed high-speed signal pairs rather than ordinary low-speed wiring.

I2C

I2C is a two-wire communication bus used by many sensors and small modules. It matters because several I2C devices can share the same two wires, but each device needs a compatible address and your controller must support I2C.

LED

A light-emitting diode is a small electronic component that lights up when current flows through it in the correct direction. In this kit, LEDs create the flashing effect, so polarity and correct soldering matter for the project to work.

LiPo

A lithium polymer rechargeable battery commonly used in portable electronics projects. It matters because LiPo batteries need correct charging circuitry and care, and this board includes hardware intended for that battery type.

MAX17048

A battery fuel-gauge chip that estimates how much charge is left in a LiPo battery. It matters for portable projects because your software can monitor battery level instead of only measuring voltage.

MCP73831

A lithium battery charger chip used to safely charge a single-cell LiPo battery. It matters because it lets the board recharge a battery from USB or another input without needing a separate charger module.

microcontroller

A microcontroller is a small computer on a chip that runs your program and controls connected inputs and outputs. For this product, it is the part that reads buttons and sensors, drives the display and speaker, and communicates over Bluetooth.

MicroPython

A version of the Python programming language made to run on microcontrollers. It matters because it lets beginners write readable code to control LEDs, sensors, motors and displays without needing to start with lower-level languages.

PTH

Plated through-hole means the pin holes are metal-lined so solder connects the pad on both sides of the board. It is useful for connectors and headers that need a strong mechanical and electrical connection.

PWM

Pulse Width Modulation is a way for a digital pin to simulate variable output power by switching on and off very quickly. It matters for controlling things like LED brightness, motor speed, or servo-style signals from a microcontroller pin.

Qwiic

Qwiic is a plug-in connector system for I2C devices that uses small 4-pin cables, so you can connect compatible sensors without soldering. It matters because your controller or adapter also needs Qwiic, or you will need a cable or breakout to wire it up.

RGB

Short for red, green and blue, usually referring to an LED that can mix those three colours. It matters because controlling an RGB LED teaches how separate outputs combine to create different colours.

RISC-V

An open processor architecture used inside some modern microcontroller chips. It matters because it affects the software tools, performance, and low-power features available for developing projects on the board.

RP2350

A microcontroller chip from Raspberry Pi used as the main processor on some development boards. Knowing the board is built around an RP2350 helps you check software support, pin capabilities and whether it suits MicroPython projects.

SPI

A fast serial communication bus often used for displays, memory cards, and sensors. It matters because SPI devices need specific pins for clock and data, plus a separate chip-select line for each device.

SRAM

Fast temporary memory used by a processor while a program is running. More SRAM helps with projects that handle larger data buffers, networking, displays, or more complex code.

Thing Plus

Thing Plus is SparkFun’s development-board form factor with a small rectangular layout and connections suited to wireless and battery-powered projects. It matters because boards and accessories in the same form factor are easier to mount, wire, and swap between projects.

Tolerance

Tolerance tells you how far the real resistance value may be from the printed value. A 1% resistor is useful when a circuit needs more predictable behaviour than a looser 5% or 10% part.

UART

UART is a simple serial connection that sends data over separate transmit and receive wires, often labelled TX and RX. It matters because this module is designed to replace a wired UART cable with a wireless link while keeping the same serial data format.

USB-C

A modern reversible USB connector used for power and data connections. On this product it matters because it can connect directly to a computer as well as to a microcontroller project.
