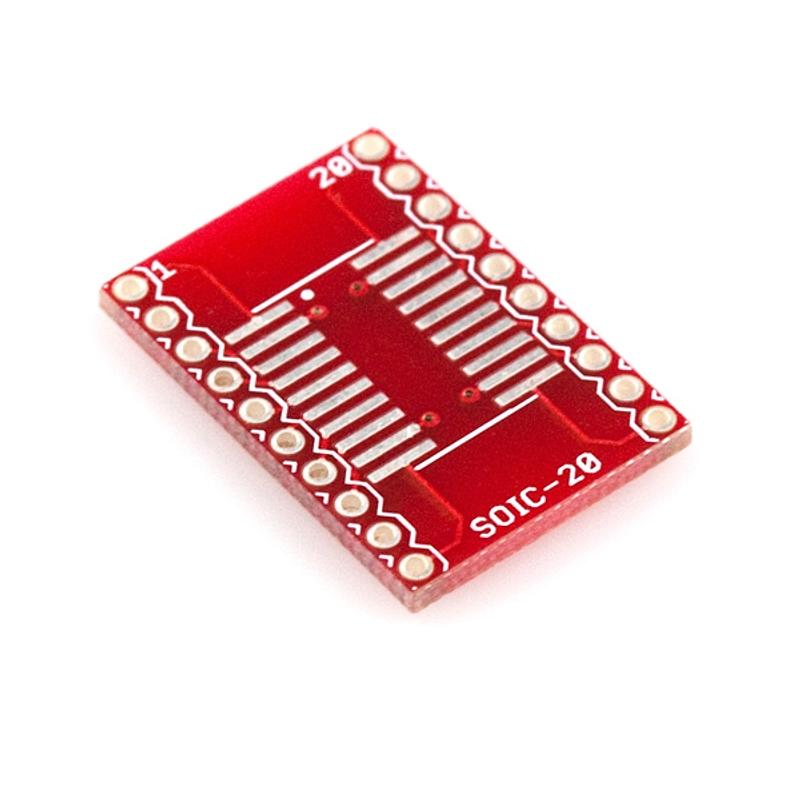

SparkFun SOIC to DIP Adapter - 20-Pin
A simple breakout PCB that adapts a 20-pin SOIC package IC to standard 0.1″ DIP headers for easy breadboard prototyping. Solder your SOIC chip to the board a...
A simple breakout PCB that adapts a 20-pin SOIC package IC to standard 0.1″ DIP headers for easy breadboard prototyping. Solder your SOIC chip to the board and plug it straight into a breadboard or socket.
Key Features
- SOIC to DIP Conversion – Use surface-mount ICs on breadboards
- 20-Pin Layout – Standard 0.6″ row spacing
- 0.1″ Header Compatible – Works with standard break-away or machine pin headers

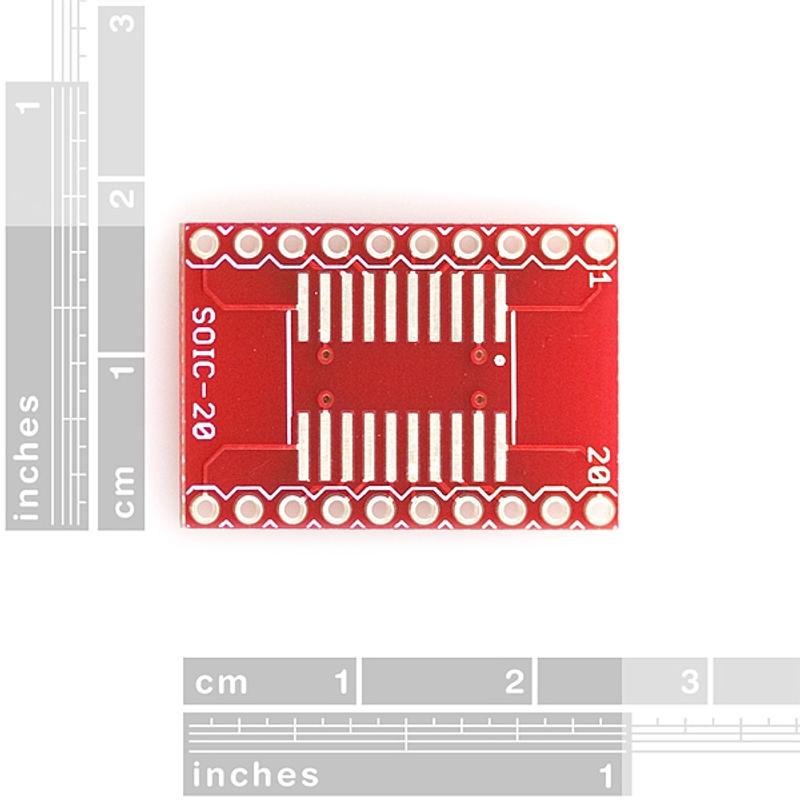

- Compact – 0.7″ × 1.1″ board dimensions
Specifications
- Pins – 20
- Input Package – SOIC-20
- Output Spacing – 0.1″ headers, 0.6″ row spacing (DIP standard)
- Dimensions – 0.7″ × 1.1″
Ideal For
- Prototyping with SOIC-packaged ICs on breadboards
- Converting surface-mount chips for through-hole use
- Testing and debugging SMD components
Package Contents
- 1× SOIC to DIP Adapter PCB (20-pin)
