Soft Power Switch - JST 2mm

Name: Soft Power Switch - JST 2mm
Brand: SparkFun
SKU: SF-PRT-26993
Price: 14.45 AUD
Availability: InStock

· MPN: PRT-26993

Buttons & Switches Power Management

$14.45 |

In stock at supplier

No reviews yet

This compact power-control board gives battery-powered projects a laptop-style on/off button while still allowing your microcontroller to take part in the sh...

Add to Wishlist

Compare

Estimated Delivery

Arrives

Disclaimer

View Markdown

Secure checkout

This compact power-control board gives battery-powered projects a laptop-style on/off button while still allowing your microcontroller to take part in the shutdown process. A quick press turns the system on, another press can be handled by the MCU for an orderly shutdown, and a long press provides a hard power-down override if your code gets stuck.

It is built around a fully digital Texas Instruments design and includes a self-resetting 2A fuse, VIN and VOUT status LEDs, and very low quiescent current to help preserve battery life. This version is fitted with JST 2mm battery connectors and is intended for DC loads up to 5.5V only.

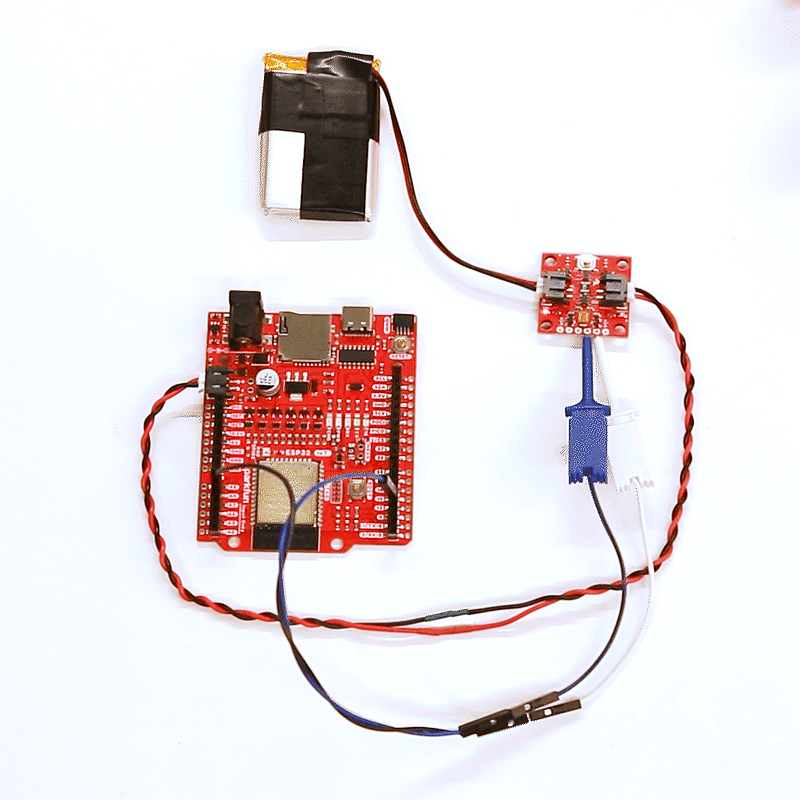

The board breaks out GND, VIN, VOUT, BTN, PUSH and OFF through PTH pads. Connect PUSH and OFF to your microcontroller to detect button presses and request a controlled power-off, or add an external momentary button between BTN and GND.

Supporting documentation from SparkFun includes schematic files, KiCad files, a 3D model, board dimensions, hookup guide, component datasheets, an example sketch and the hardware repo.

Features:

Software feedback and control: passive, hard on/off switching with MCU interaction.
Simple press on: a simple press will turn the system on.
MCU-assisted power-off: another press can, with MCU intervention, turn off the system.
Hard override: pressing and holding the button for ~10 seconds will force a power-down.
Overcurrent protection: self-resetting 2A fuse.
Visual feedback: input and output LEDs.
Microcontroller pins: PUSH and OFF pins for monitoring button presses and initiating controlled shutdown.
Timing control: wake-up and power-down times can be customised.
Battery charging: supports battery charging while powering your project.
Load type: designed for DC loads and not designed for AC loads.

Specifications:

Input voltage: 5.5V maximum, 1.8V minimum
Typical input: Typically ~3.7V from a single cell LiPo Battery
Maximum current draw: 2A continuous, 4A peak (fuse protected)
MOSFET: SIL2308 N&P-Channel MOSFET
P-Channel on-resistance: 70mΩ (0.070 Ohm) typical P-Channel on-resistance
Quiescent current: Very low quiescent current: <1µA @ 3.75V, with VIN LED disabled
Connectors: 2x 2-Pin JST Right-Angle Connectors
VIN: VIN
VOUT: VOUT
Battery charging: Supports battery charging
Push button: Built-in momentary push button
Hard override: push and hold the button for ~10 seconds
Breakout PTH: provided
Breakout PTH pins: GND, VIN, VOUT
BTN: if desired, connect an external button between BTN and GND
PUSH: open-drain output, requires pull-up, low indicates button is pushed
OFF: drive high to turn the output off
LEDs: VIN and VOUT (can be disabled if desired)
Jumpers: provided
Input power LED: Input power LED
Output power LED: Output power LED
Dimensions: 1.0in. x 1.0in. (25.4mm x 25.4mm)
Weight: 3.10g

A handy choice for enclosed LiPo-powered builds that need a reliable front-panel power button and controlled shutdown behaviour.
