SparkFun Qwiic Shield for Teensy - Extended
An extended Qwiic shield that adds four Qwiic connectors to Teensy 4.1, Teensy 3.6, and Teensy 3.5 boards. Connects the I²C bus (GND, 3.3 V, SDA, SCL) to two...
Get notified when back in stock

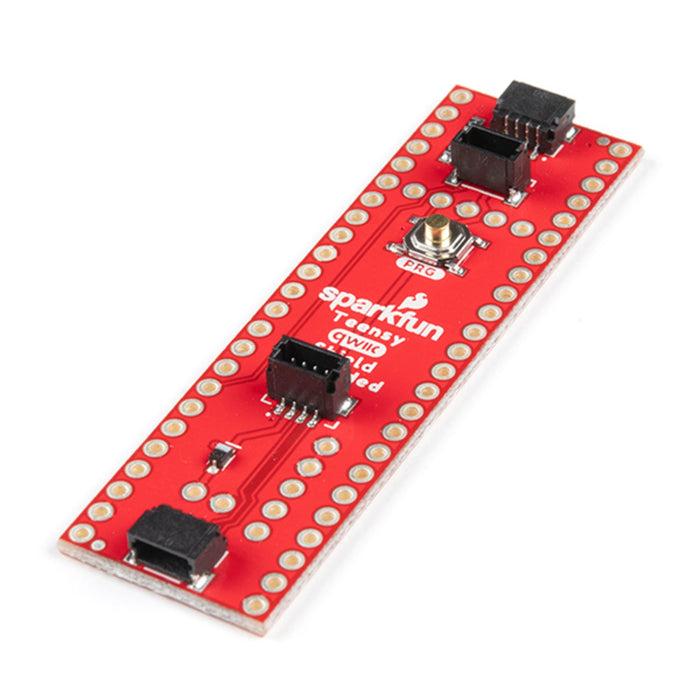

An extended Qwiic shield that adds four Qwiic connectors to Teensy 4.1, Teensy 3.6, and Teensy 3.5 boards. Connects the I²C bus (GND, 3.3 V, SDA, SCL) to two horizontal and two vertical Qwiic ports for easy daisy-chaining of I²C sensors and actuators.
Includes a PROG button that mirrors the Teensy's built-in programming button, so you can trigger programming mode from either the shield or the Teensy itself. Headers are included but require soldering.
Key Features
- 4 Qwiic Connectors – 2 horizontal + 2 vertical JST connectors for I²C devices
- Extended Footprint – Sized for Teensy 4.1, 3.6, and 3.5
- PROG Button – Electrically parallel with the Teensy's programming button
- Daisy-Chainable – Connect multiple Qwiic devices (unique addresses required)
- Headers Included – 2× 24-pin and 1× 5-pin headers (soldering required)
Ideal For
- Adding I²C sensors to Teensy projects
- Rapid prototyping with the Qwiic ecosystem
- Audio and high-performance Teensy 4.1 builds
- Multi-sensor data acquisition
Package Contents
- 1× SparkFun Qwiic Shield for Teensy (Extended)
- 2× 24-pin headers
- 1× 5-pin header
Resources
Jargon buster
Plain-language definitions for the technical terms used above.
- GND
- GND is the ground or reference connection (0 V) for a circuit. When connecting two devices together, their grounds must be joined so both agree on what counts as a low or high signal.
- Headers
- Rows of connector contacts on a fixed pitch (commonly 2.54 mm) used to link a board to a breadboard, jumper wires, or another board. They come as male pin headers and female socket headers; when a module ships with pre-soldered headers it can be used straight away, whereas bare pads require soldering the pins yourself.
- Qwiic
- Qwiic is a plug-in connector system for I2C devices that uses small 4-pin cables, so you can connect compatible sensors without soldering. It matters because your controller or adapter also needs Qwiic, or you will need a cable or breakout to wire it up.
- Shield
- An add-on board that plugs into a main controller board to give it extra features such as sensing, motor control or communication. Knowing a product supports shields helps you judge whether it can connect neatly into an existing maker-board setup.
