SparkFun Qwiic OLED - (1.3in., 128x64)
· MPN: LCD-23453
The SparkFun Qwiic 1.3in OLED is a compact, easy-to-use display perfect for adding a visual element to your Arduino, Raspberry Pi, or other microcontroller p...

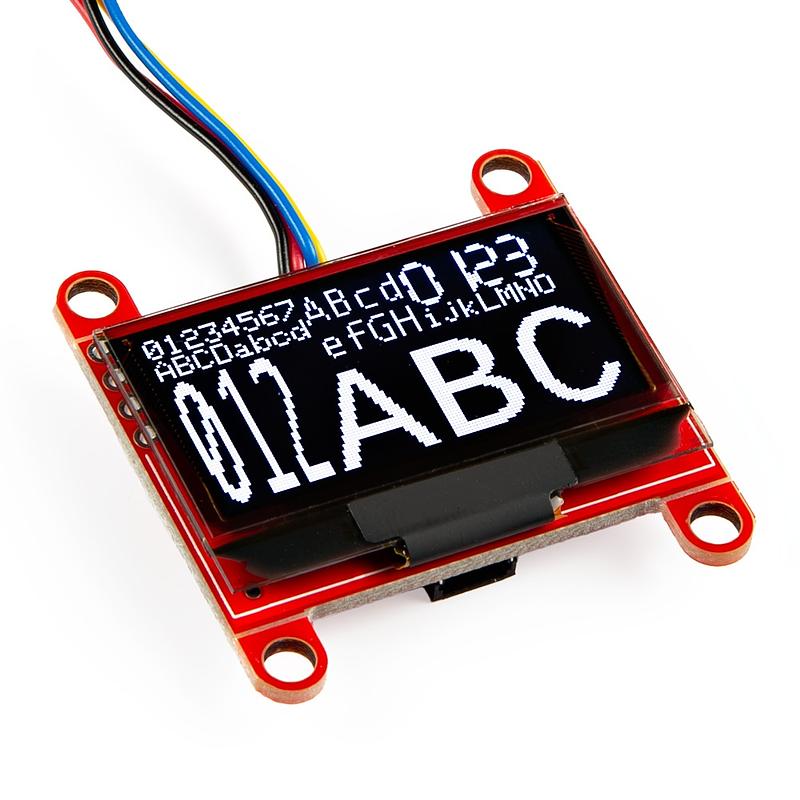

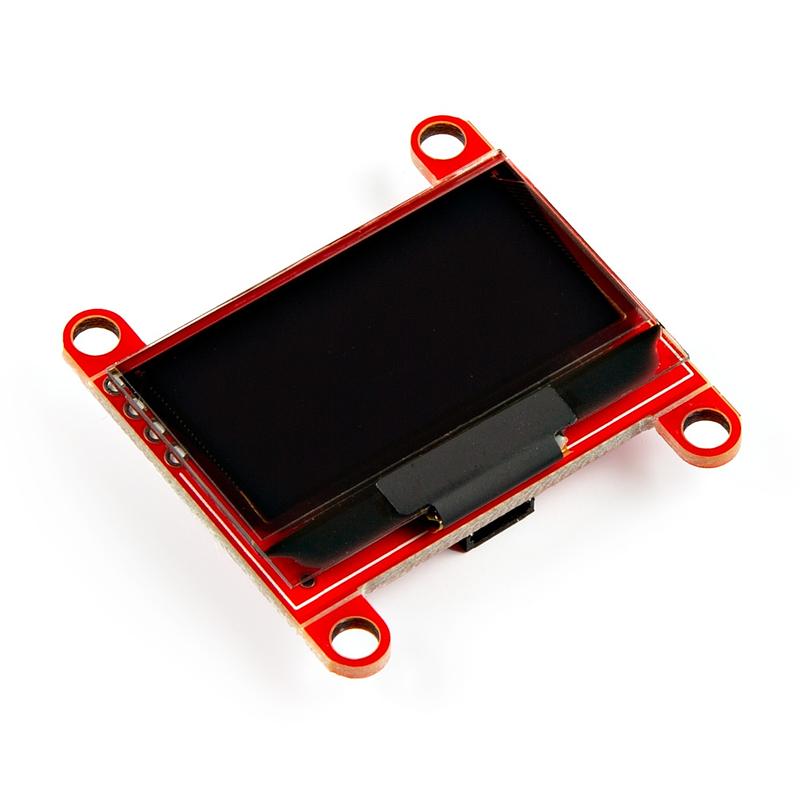

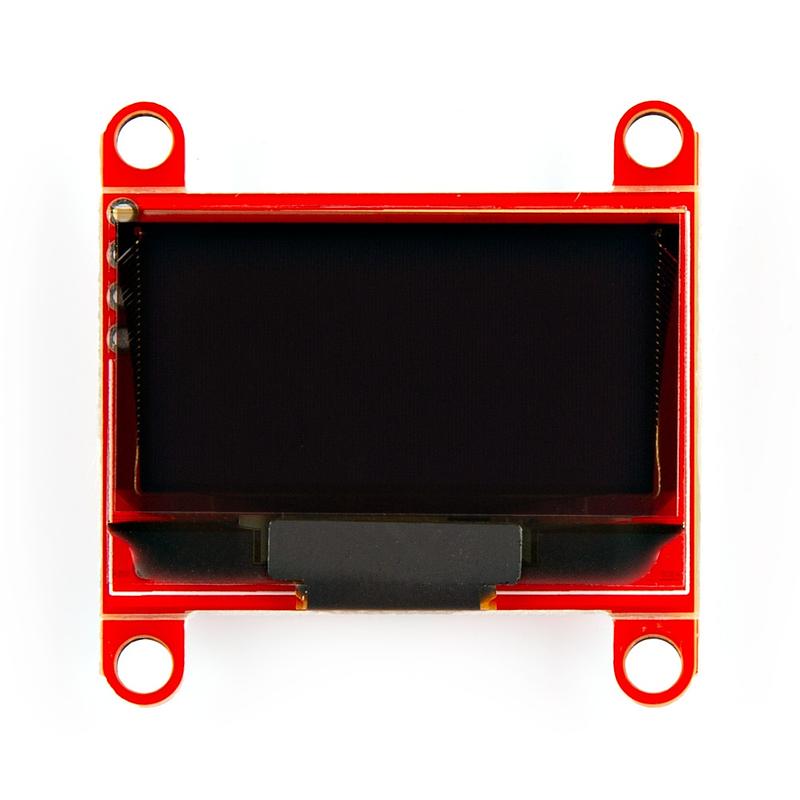

The SparkFun Qwiic 1.3in OLED is a compact, easy-to-use display perfect for adding a visual element to your Arduino, Raspberry Pi, or other microcontroller projects. With a vibrant 1.3-inch OLED screen and a resolution of 128x64 pixels that deliver crisp white-on-black, it's ideal for displaying text, graphics, and even simple animations.
Since this OLED is Qwiic-enabled, hook-up is a breeze and requires no soldering! The default I2C address is 0x3D, but by soldering the address jumper on the back of the board, you can select 0x3C.
The SparkFun Qwiic OLED 1.3in. takes advantage of the existing SparkFun OLED Arduino library to make it simple to get up and running quickly. Download it through the Arduino Library Manager tool by searching for 'SparkFun OLED' or download it from the GitHub repository linked in the Documents tab.
Whether you're a beginner or an experienced maker, the SparkFun Qwiic OLED is a versatile and affordable display that can add a lot of functionality to your projects.
The SparkFun Qwiic Connect System is an ecosystem of I2C sensors, actuators, shields and cables that make prototyping faster and less prone to error. All Qwiic-enabled boards use a common 1mm pitch, 4-pin JST connector. This reduces the amount of required PCB space, and polarized connections mean you can’t hook it up wrong.
Features:
- Number of Pixels: 128 x 64
- Panel Size: 34.5 x 23.0 x 1.4 (mm)
- Active Area: 29.42 x 14.7 (mm)
- I2C Address: 0x3D (default), 0x3C (selectable)
- 2x Horizontal Qwiic Connectors
- Supply Voltage: 3.0-3.3V
Documents:
Jargon buster
Plain-language definitions for the technical terms used above.
- microcontroller
- A microcontroller is a small computer on a chip that runs your program and controls connected inputs and outputs. For this product, it is the part that reads buttons and sensors, drives the display and speaker, and communicates over Bluetooth.
- OLED
- OLED stands for organic light-emitting diode, a display type where each pixel produces its own light. It matters because OLED screens are thin, high-contrast and easy to read for small status displays, but they can be more sensitive to image burn-in than some other display types.
- PCB
- A printed circuit board is a rigid board with copper tracks that connect electronic parts without loose wires. For this kit, the PCBs also form the airplane shape, so they are both the circuit base and part of the finished model.
- Qwiic
- Qwiic is a plug-in connector system for I2C devices that uses small 4-pin cables, so you can connect compatible sensors without soldering. It matters because your controller or adapter also needs Qwiic, or you will need a cable or breakout to wire it up.
