SparkFun Joystick Shield Kit

The SparkFun Joystick Shield Kit contains all the parts you need to enable your Arduino with a joystick! The shield sits on top of your Arduino and turns it into a simple controller. Five momentary push buttons (4+ joystick select button) and a two-axis thumb joystick gives your Arduino functionality on the level of old Nintendo controllers. Soldering is required, but it’s relatively easy and requires minimal tools. We even have a step by step guide!

The momentary push buttons are connected to Arduino digital pins 2-6; when pressed they will pull the pin low (utilizing the internal pull-ups of the Arduino). Vertical movement of the joystick will produce a proportional analog voltage on analog pin 0, likewise, horizontal movement of the joystick can be tracked on analog pin 1.

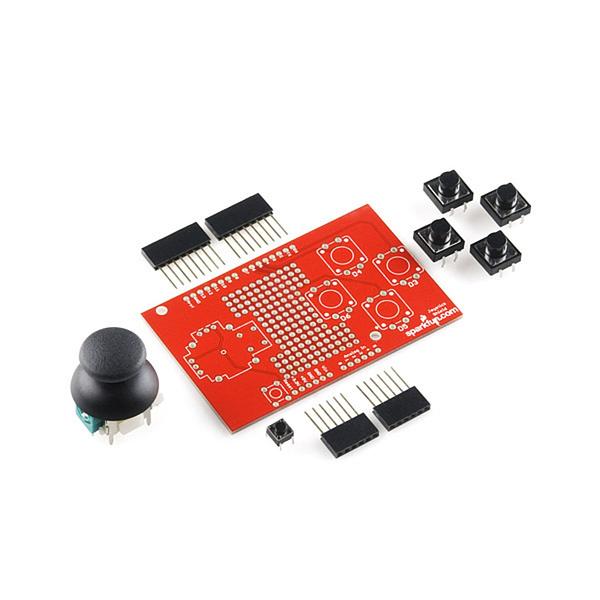

Kit Includes:

• 1x Joystick Shield PCB
• 4x Momentary Push Button Switch - 12mm Square
• 1x Thumb Joystick
• 1x Mini Push Button Switch (breaks out Arduino’s reset switch)
• 2x 6-pin Arduino Stackable Header
• 2x 8-pin Arduino Stackable Header

Documents:

• Schematic
• Eagle Files
• Joystick Assembly Tutorial
• Joystick Quickstart Guide
• Arduino Sample Sketch
• GitHub
