SparkFun ISP Pogo Adapter v2
· MPN: KIT-23451
Pogo pins make life so much easier when you are trying to program without having to solder a single thing, and when you attach them to an In-system programmi...
Get notified when back in stock
Pogo pins make life so much easier when you are trying to program without having to solder a single thing, and when you attach them to an In-system programming (ISP) adapter, they become instantly better. This simple kit allows you to do just that. The ISP Pogo Adapter is a simple and easy way to adapt pogo pins to a 6-pin ISP header, allowing you to program an IC without soldering a header.
We've also included a labeled SIP header row and 10 6in. M/M jumper wires allowing you to use your Arduino (or other single-board microcontroller) as an ISP device!
This adapter comes as a kit, and assembly will be required.
Includes:

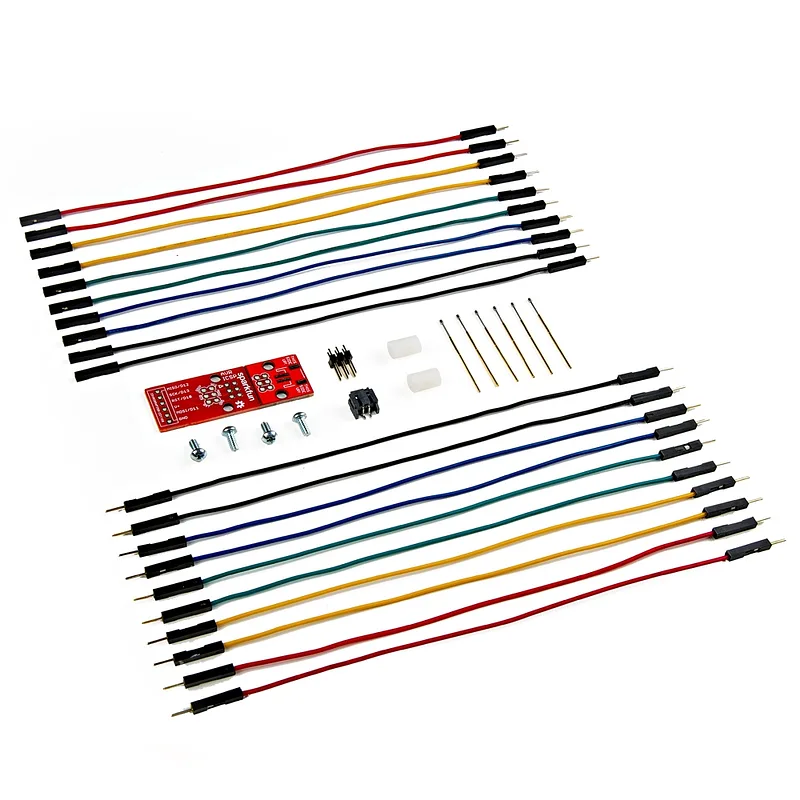

- 1x ISP Pogo Adapter PCB
- 1x 6in. M/M Jumper Wires (pack of 10)
- 1x 6in. M/F Jumper Wires (pack of 10)
- 1x JST Right Angle Connector
- 1x Male ISP 2x3 Header
- 2x 3/8" Plastic Standoff
- 4x 1/4" Phillips Head Screw
- 6x Pogo Pin with Pointed Tip
