Single-Ended Flexible LED Filament - 3V 25mm - Pink
· MPN: ADA6142
Add a miniature neon-style pink glow to small builds with this flexible LED filament. It is made from dozens of micro LED diodes bonded to a flexible printed...
Get notified when back in stock

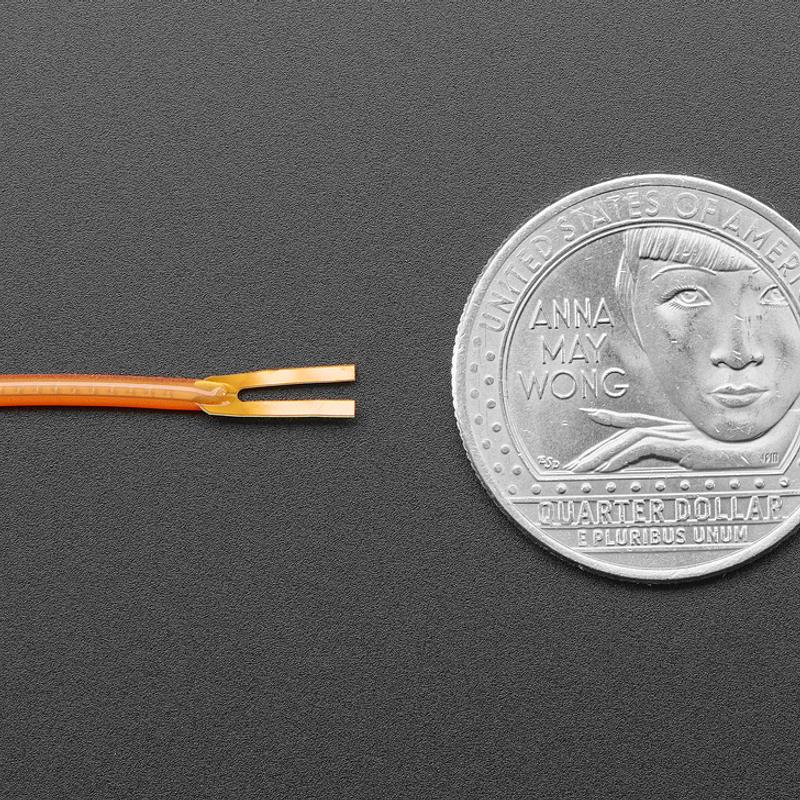

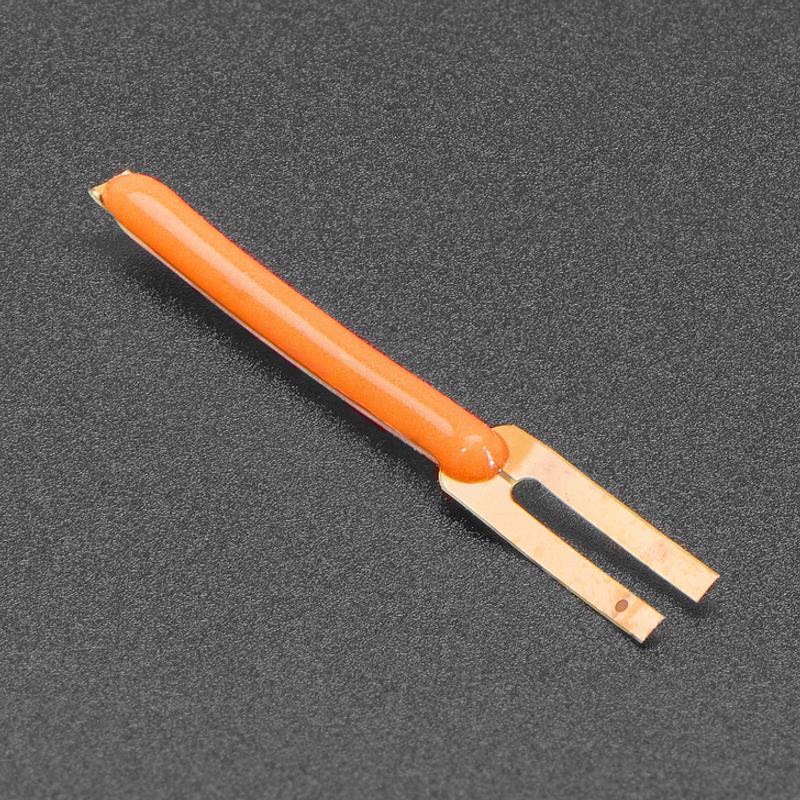

Add a miniature neon-style pink glow to small builds with this flexible LED filament. It is made from dozens of micro LED diodes bonded to a flexible printed circuit backing and coated in silicone for protection.
The filament runs from about 3V, with the LEDs arranged in parallel. Use a current-limiting resistor and keep the current to a maximum of 50mA.

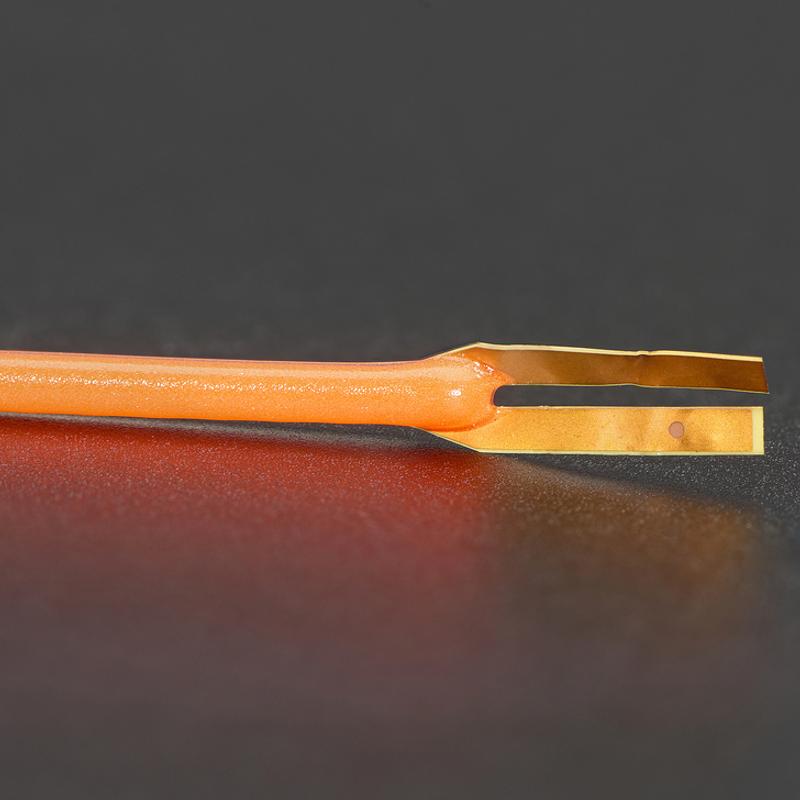

Both contacts are on one end for easier installation. The anode positive is the metal end with the small hole; if it does not light straight away, try reversing the connection. As it behaves like one long LED, it can also be PWM dimmed.
Specifications:
- Colour: Pink
- Voltage: ~3V
- Length: 25mm
- Recommended maximum current: 50mA
- Contacts: Two contacts on one end
Great for miniature sets, dioramas, dollhouses and other small decorative lighting projects.
Jargon buster
Plain-language definitions for the technical terms used above.
- LED
- A light-emitting diode (LED) is a small electronic component that emits light when current flows through it in the correct direction. Because it only conducts one way, its polarity matters, and a through-hole LED must be soldered the correct way around to light up.
- PWM
- Pulse Width Modulation is a way for a digital pin to simulate variable output power by switching on and off very quickly. It matters for controlling things like LED brightness, motor speed, or servo-style signals from a microcontroller pin.
