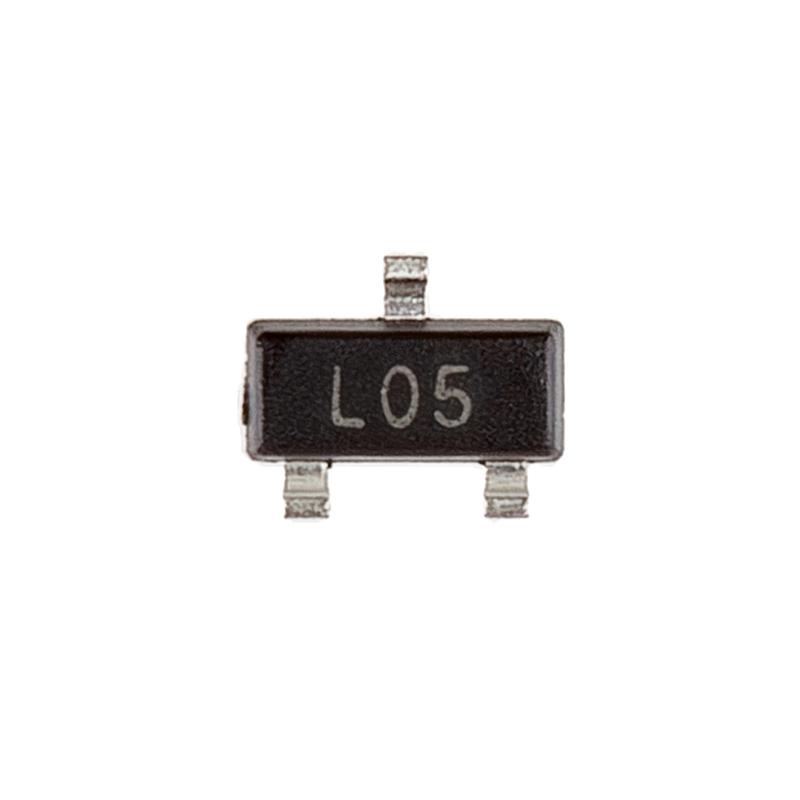

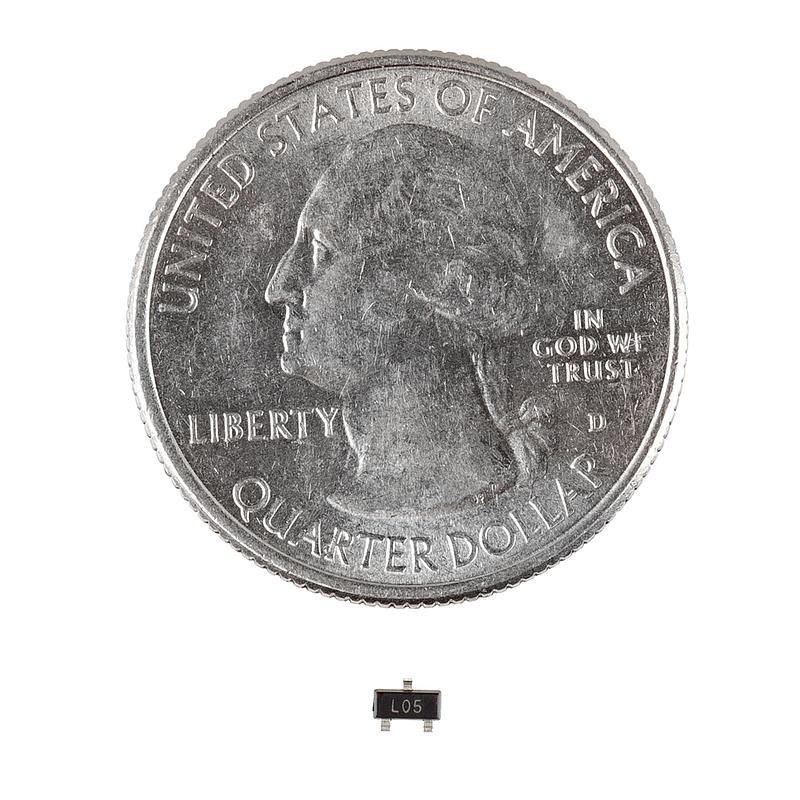

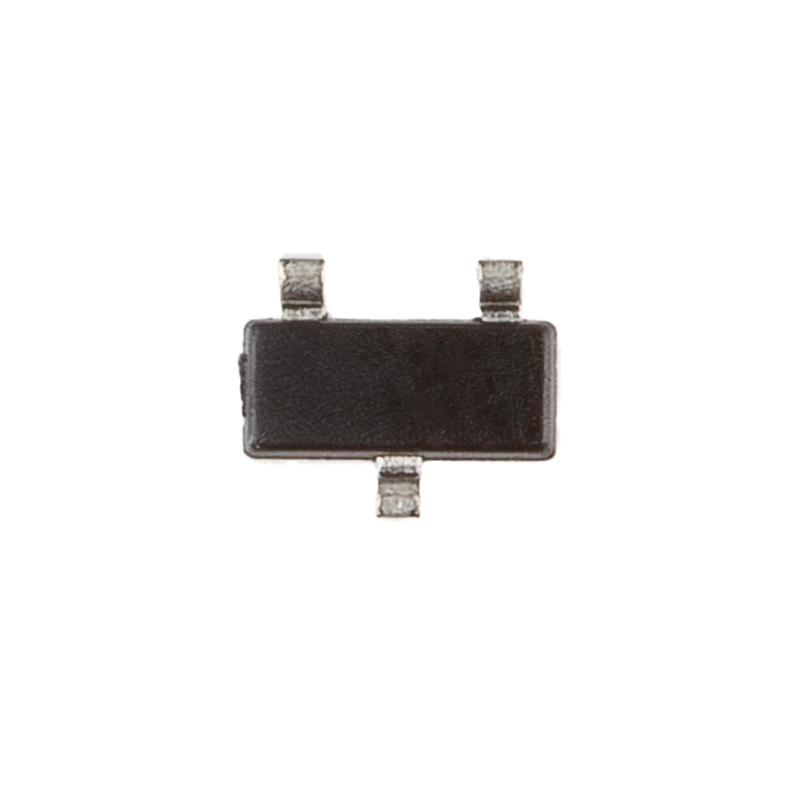

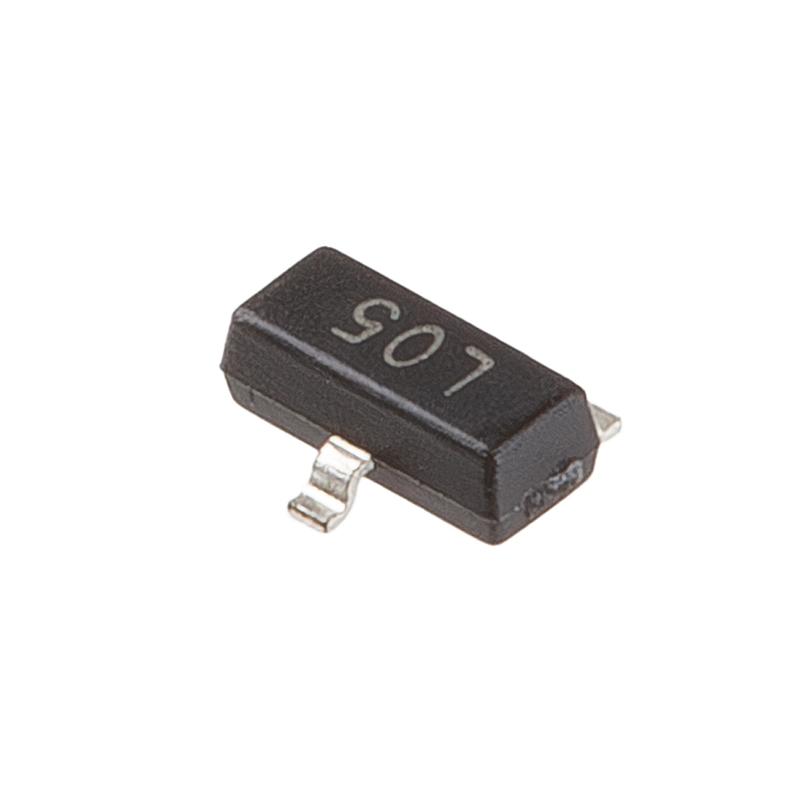

Schottky Diode 40V 700mA ZLLS500TA
· MPN: COM-29757
This compact Schottky diode is designed for efficient rectification where low forward voltage, low leakage and fast switching are important.It suits circuits...
Get notified when back in stock
This compact Schottky diode is designed for efficient rectification where low forward voltage, low leakage and fast switching are important.
It suits circuits that need higher current operation in a small surface-mount part, including designs operating at higher temperatures above 85°C.
The manufacturer part number is ZLLS500TA, and a datasheet is provided in the product documentation for detailed design information.
Specifications:
- Voltage - DC Reverse (Vr) (Max): 40V
- Current - Average Rectified (Io): 700mA
- Voltage - Forward (Vf) (Max) @ If: 530mV @ 500mA
- Speed: Fast Recovery =< 500ns, >200mA (Io)
- Reverse Recovery Time (trr): 3ns
- Current - Reverse Leakage @ Vr: 10 µA @ 30 V
- Capacitance @ Vr, F: 16pF @ 30V, 1MHz
- Mounting Type: Surface Mount
- Mfg #: ZLLS500TA
A handy choice for compact power, protection and fast-switching circuits where a surface-mount Schottky diode is required.
Jargon buster
Plain-language definitions for the technical terms used above.
- capacitance
- Capacitance is the amount of electrical charge a capacitor can store, usually measured in farads such as uF. Choosing the right capacitance value matters because it affects how well a circuit filters power, handles timing, or stores short bursts of energy.
- DC
- DC means direct current, where electricity flows in one constant direction, as supplied by batteries, USB ports and many plug-pack power supplies. When a product specifies DC, it runs from a DC supply rather than mains AC, so you need to provide the correct voltage and polarity.
- schottky
- A Schottky diode is a type of diode with a low forward voltage drop and very fast switching. It matters when choosing parts for power protection, voltage regulation, or high-speed circuits because it wastes less power than many standard diodes but usually has higher reverse leakage and lower voltage ratings.
- Schottky diode
- A diode type with a low forward voltage drop and fast switching behaviour. It is useful when you want less power loss or quicker response, such as in battery-powered circuits, switching supplies, or reverse-current protection.
