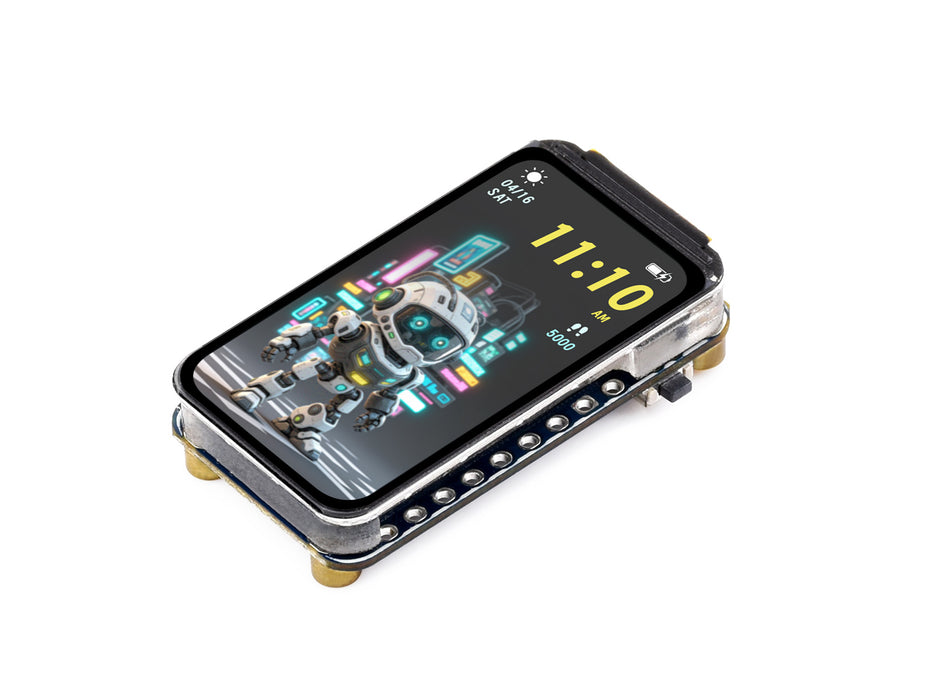

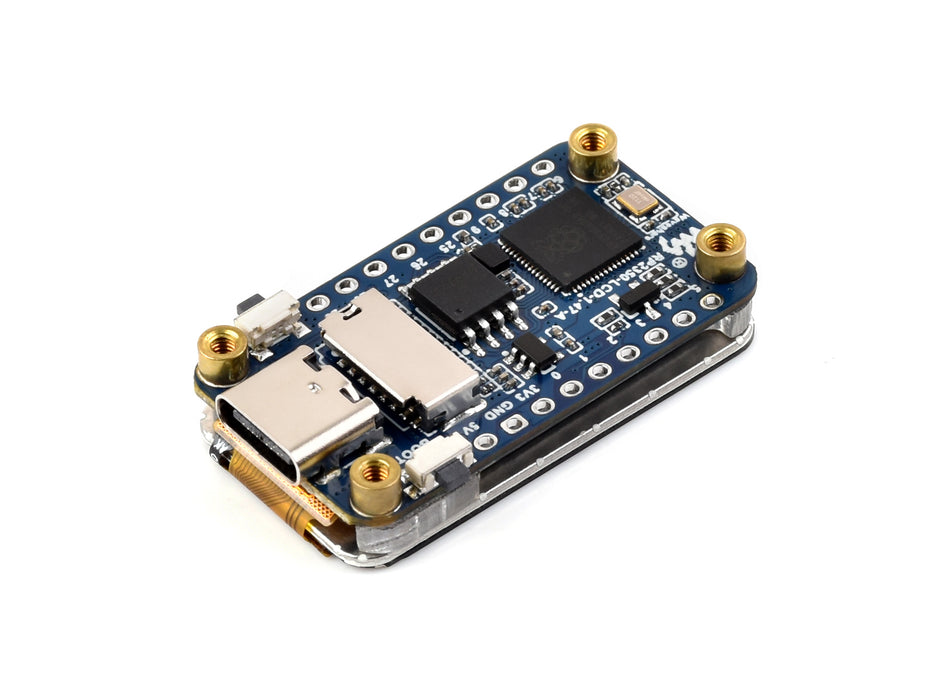

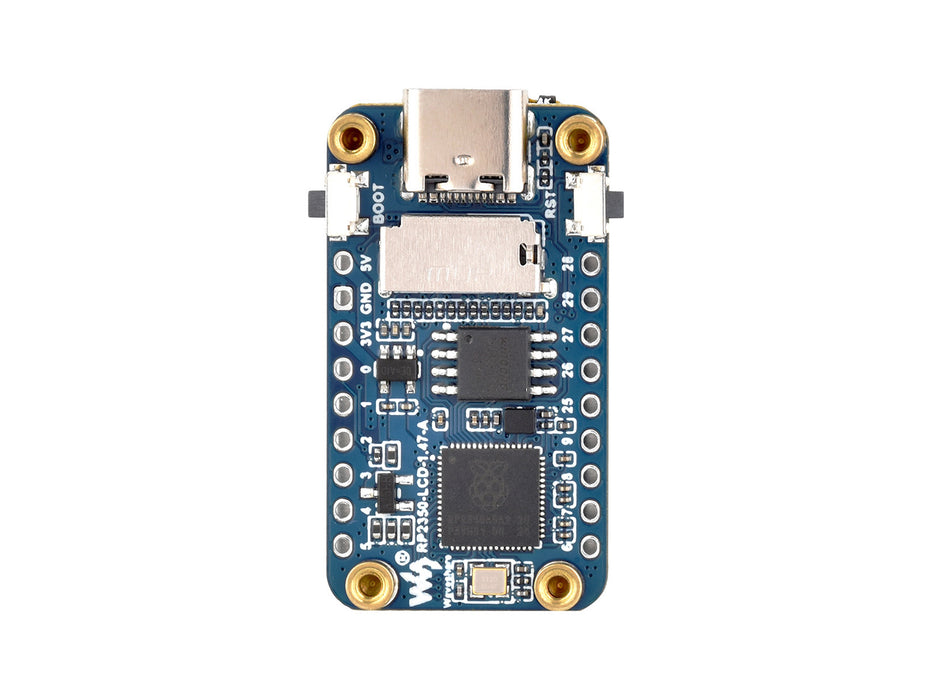

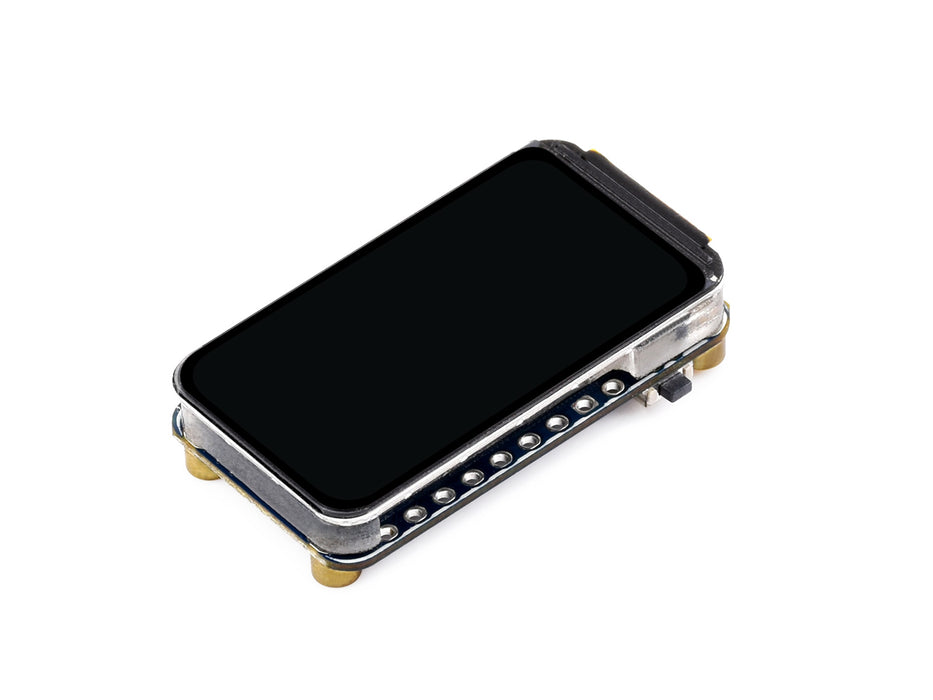

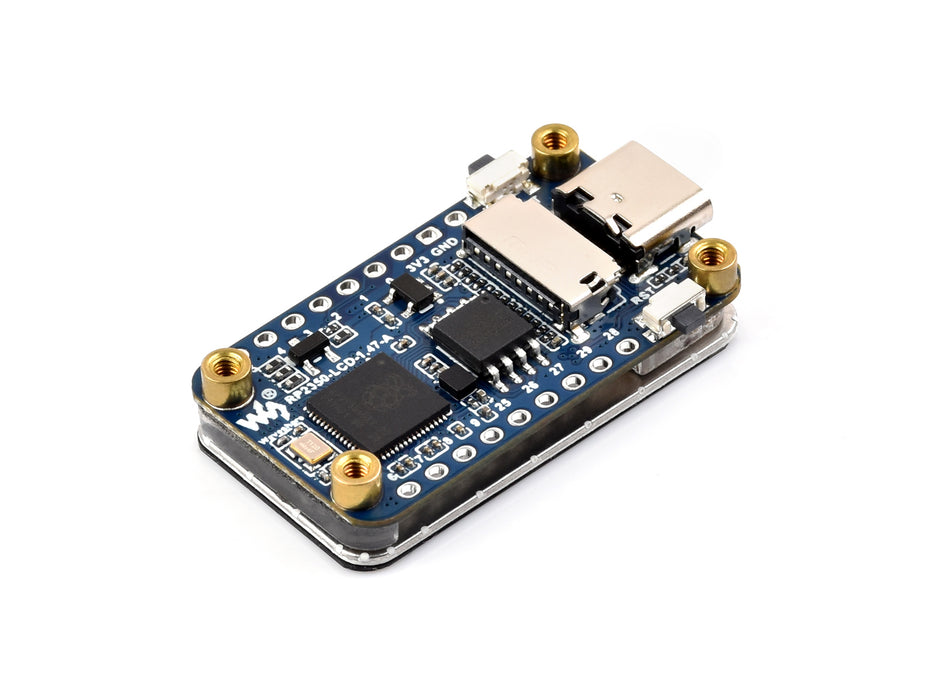

RP2350 1.47" Display Board – 172x320, Dual-core MCU, RGB LED

Jargon buster

Plain-language definitions for the technical terms used above.

Arm Cortex-M33

A 32-bit, low-power Arm microcontroller core designed for real-time, timing-sensitive control tasks such as reading sensors or driving motors. It can act as a chip's main controller, or in some systems-on-chip run alongside larger application cores that handle an operating system like Linux.

Flash memory

Flash memory is non-volatile memory that retains stored data even when power is removed, and can be erased and rewritten in blocks. It lets data such as firmware, settings or saved records persist across power cycles.

IoT

Short for Internet of Things, meaning physical devices that connect to networks or the internet to send data or be controlled remotely. It matters if you want projects such as connected sensors, remote controls or classroom data-logging activities.

LCD

LCD stands for liquid crystal display, a screen technology that uses a backlight and liquid crystals to show images or text. It matters because LCD modules usually need a display driver and enough controller pins or a bus interface to send image data.

LED

A light-emitting diode (LED) is a small electronic component that emits light when current flows through it in the correct direction. Because it only conducts one way, its polarity matters, and a through-hole LED must be soldered the correct way around to light up.

microcontroller

A microcontroller is a small computer on a single chip that runs a stored program and controls connected inputs and outputs such as buttons, sensors, displays and communication interfaces. In a device built around one, it is the part that executes the code and coordinates the device's behaviour.

RGB

Short for red, green and blue, the three primary colours of light that are mixed in varying amounts to make a wide range of colours. In electronics RGB can refer to an LED or pixel that blends these three colours, or to a colour signal or interface that carries separate red, green and blue channels.

RISC-V

RISC-V is an open, royalty-free processor instruction-set architecture used in chips ranging from tiny microcontrollers to Linux-capable application processors. The choice of RISC-V determines which compilers, software tools, and performance or low-power features are available, separate from the more common Arm or x86 architectures.

RP2350

A microcontroller chip from Raspberry Pi used as the main processor on some development boards. Knowing the board is built around an RP2350 helps you check software support, pin capabilities and whether it suits MicroPython projects.

RST

RST (reset) is a control pin used to restart or reinitialise a device to a known state. Connecting an RST pin to a microcontroller lets the host reset the device, which can help with reliable start-up or recovery.

SRAM

Fast temporary memory used by a processor while a program is running. More SRAM helps with projects that handle larger data buffers, networking, displays, or more complex code.

Type-C

USB Type-C (USB-C) is a small, reversible USB connector used for charging, power, and data transfer on many modern devices. A Type-C port or plug indicates the cable and charger connection needed to power, charge, or communicate with a device.

USB 1.1

USB 1.1 is an older USB standard with much slower data transfer than USB 2.0 and later versions. Compatibility with it allows connection to very old computers, though data-heavy tasks such as video may be limited at that speed.

USB mass storage

USB mass storage is the standard USB device class used by many flash drives and external storage devices. If a board supports it, your project may be able to read and write files on compatible USB storage, provided the software library also supports the device.
