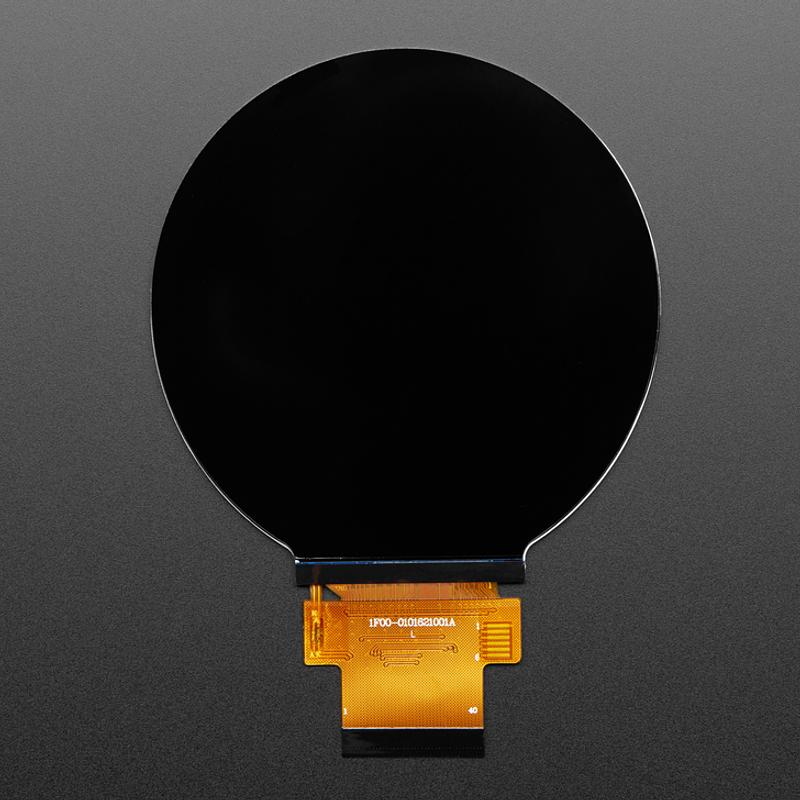

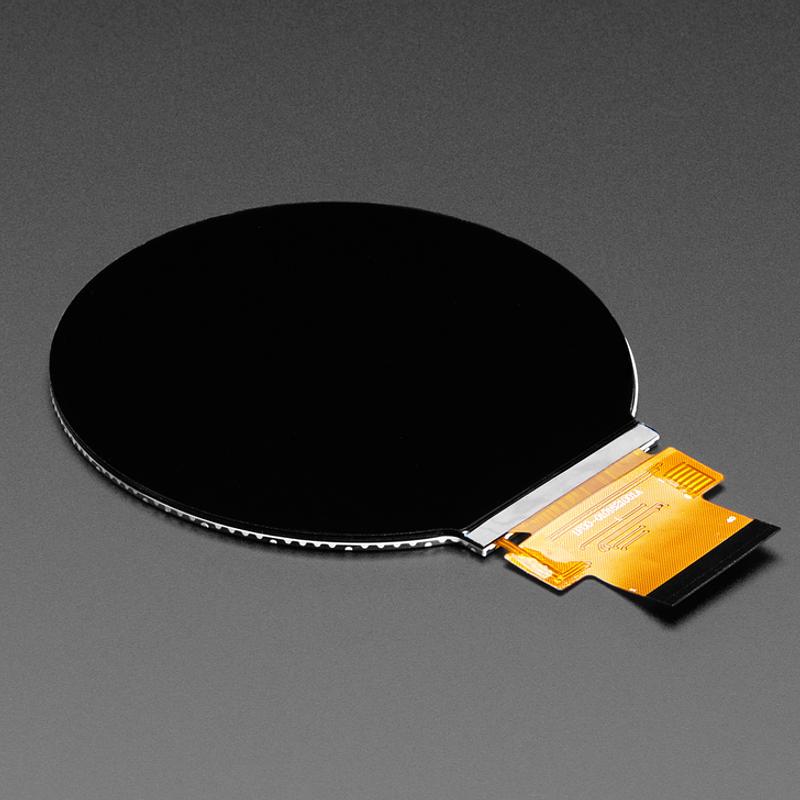

Round 2.8in RGB-666 TTL TFT Display - 480x480 No Touch

Jargon buster

Plain-language definitions for the technical terms used above.

Colour depth

Colour depth describes how many different colours a display can show. A 65K-colour display can show about 65,000 colours, which is useful for icons, graphs, and simple full-colour interfaces but is less detailed than modern phone or computer screens.

ESP32

ESP32 is a family of low-cost microcontroller chips and modules from Espressif with built-in WiFi and Bluetooth. They support programmable firmware and over-the-air updates, and are commonly programmed with toolchains such as the Arduino core and ESP-IDF.

IPS

IPS is a type of LCD panel that keeps colours and contrast more consistent when viewed from an angle. This matters for small displays that may be mounted in a dashboard, handheld project, or enclosure where the viewer is not always looking straight on.

octal PSRAM

Octal PSRAM is external pseudo-static RAM that uses an eight-line data interface for higher bandwidth than simpler single- or quad-line connections. It provides extra working memory for tasks that exceed a microcontroller's built-in RAM, such as large frame buffers, camera or image data, audio, or sizeable data sets.

PCB

A printed circuit board (PCB) is a board, usually rigid, with etched copper tracks that connect electronic components together without loose wiring. Components are mounted on the board and signals route between them through the copper layout.

RGB

Short for red, green and blue, the three primary colours of light that are mixed in varying amounts to make a wide range of colours. In electronics RGB can refer to an LED or pixel that blends these three colours, or to a colour signal or interface that carries separate red, green and blue channels.

RGB-666

A parallel display colour interface that sends 6 bits each for red, green and blue, using many pins to stream pixel data to a screen. It matters because RGB-666 panels need a driver board with the right connector, timing signals, and software setup, rather than the simpler wiring used by small SPI displays.

SPI

A fast serial communication bus often used for displays, memory cards, and sensors. It matters because SPI devices need specific pins for clock and data, plus a separate chip-select line for each device.

TFT

A thin-film transistor display is a common type of colour LCD used for graphics screens. Knowing a product is for TFTs helps you check that the driver board matches the display’s connector, resolution, backlight, and signalling method.
