RGB Full Colour Backlight Display - 84mm x 45mm
· MPN: ADA6156
This diffused RGB backlight is a rigid acrylic light panel like the kind normally found behind LCD displays, but with a full-colour LED instead of a plain wh...
Get notified when back in stock

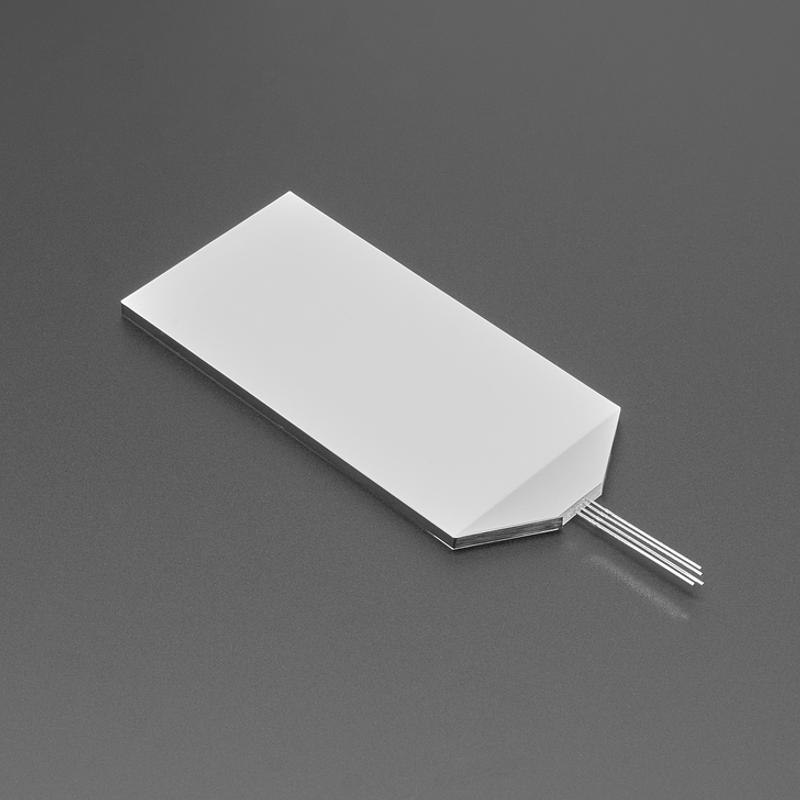

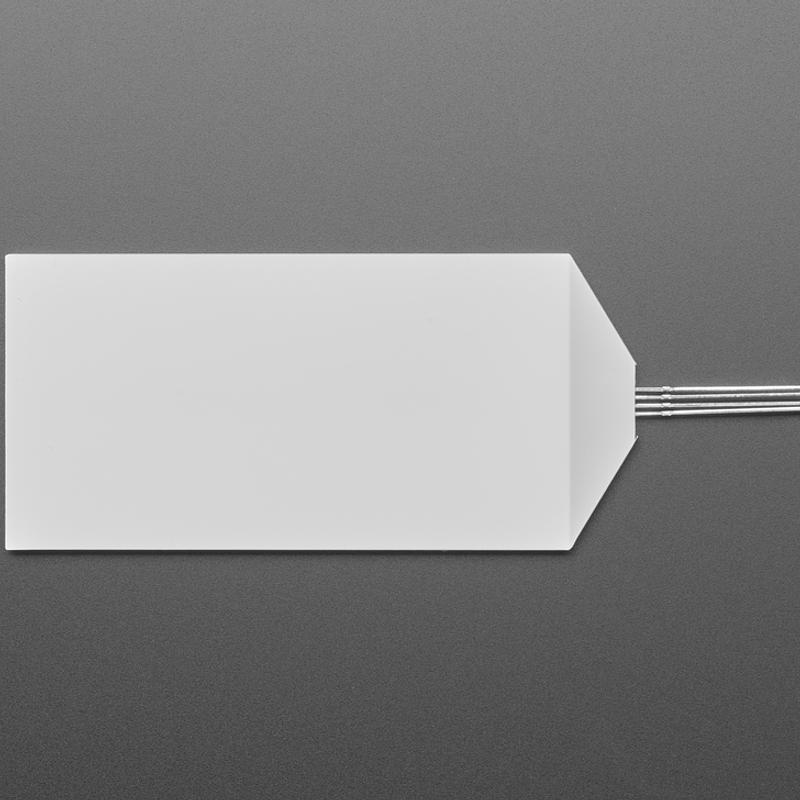

This diffused RGB backlight is a rigid acrylic light panel like the kind normally found behind LCD displays, but with a full-colour LED instead of a plain white backlight. The acrylic spreads the light from a single LED to give a near-uniform glow across the lit area.
The flat rear side includes a reflector, so light is directed out of the top surface rather than being wasted out the back. You can mask it with vinyl or draw on it with a marker to create illuminated shapes, labels or display effects.
It can be driven like a common-anode RGB LED: connect the longest pin to 3~5VDC, then connect the red, green and blue pins through suitable series resistors to ground. Each colour channel should be limited to no more than 20mA.
These make a bright alternative to EL panels for wearable projects, signage and small illuminated interfaces, without needing an inverter. The trade-off is that the panel is not flexible.
Specifications:

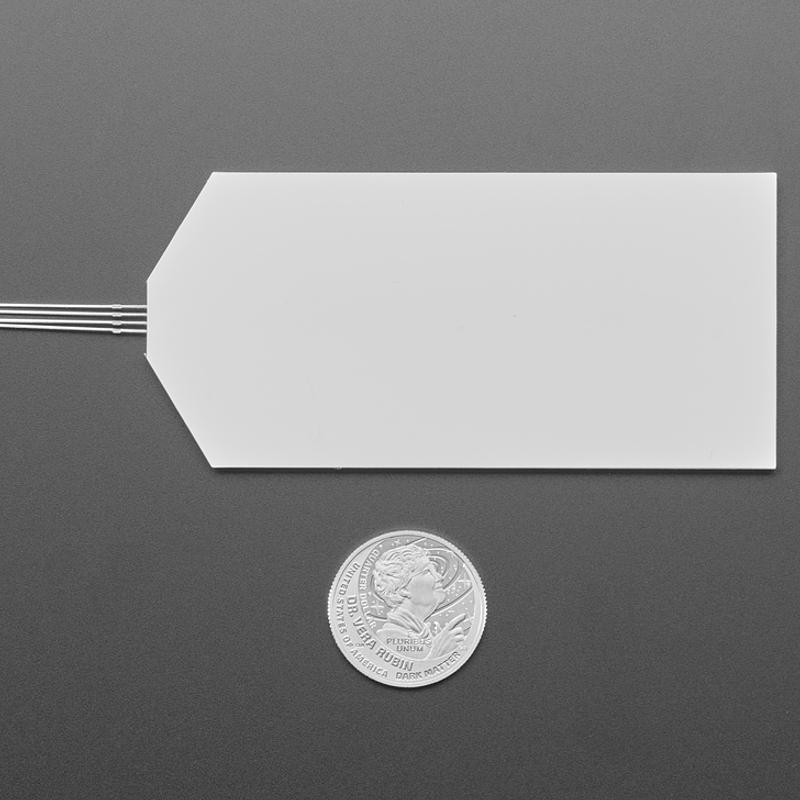

- Lit area: 1.7" by 3.3" (45mm x 84mm)
- Acrylic strip thickness: 3.3mm
- LED type: RGB LED variant
- Anode pin: Longest pin
- Anode supply: 3~5VDC
- Red, green and blue pins: Connect through resistors to ground
- Maximum current per colour: No more than 20mA
- Flexibility: Not flexible
