3.7in 240x960 RGB TTL TFT Display - ST7701S
· MPN: ADA5799

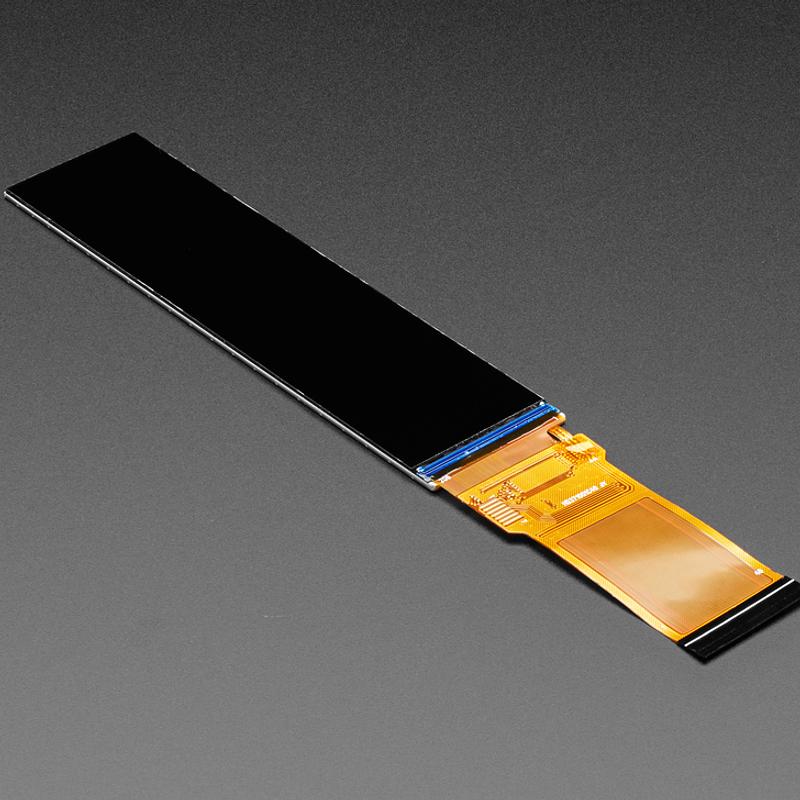

This long rectangular TFT module is made for advanced display projects that need a very wide bar-style screen with plenty of pixels. It has a 3.7" IPS panel ...

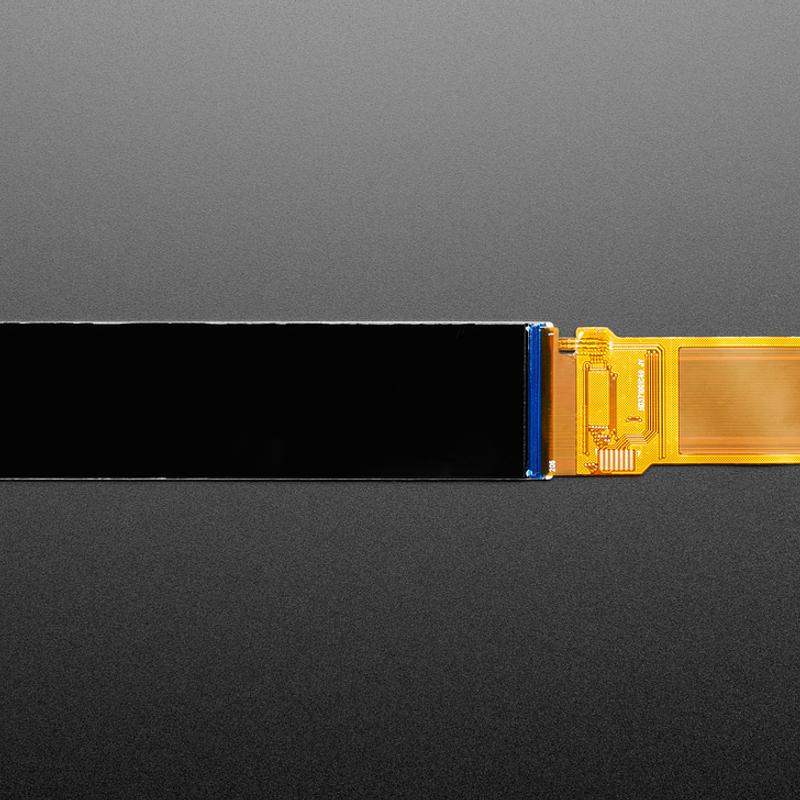

This long rectangular TFT module is made for advanced display projects that need a very wide bar-style screen with plenty of pixels. It has a 3.7" IPS panel with 240x960 18-bit full-colour pixels and good off-axis viewing up to 80 degrees in any direction.
The display uses an ST7701S driver with SPI plus TTL RGB “dot clock” data. SPI is only used to configure the display, so you cannot draw pixels over SPI. You will need hardware that specifically supports RGB-666 / TTL RGB TFT driving, such as an ESP32-S3 with octal PSRAM or a Raspberry Pi using direct DPI or an intermediary chip such as the ICN6211.

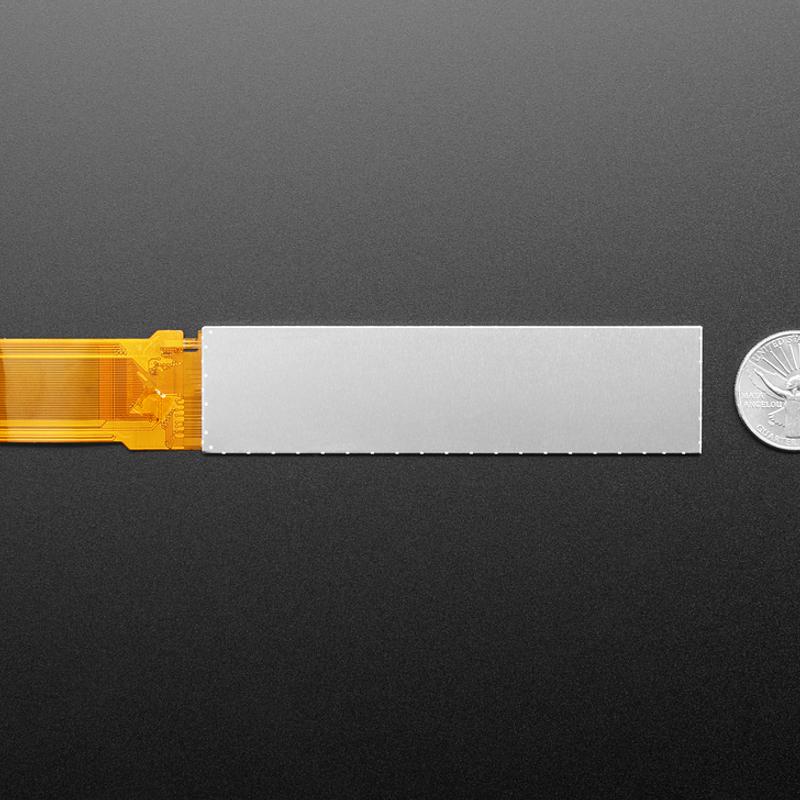

This is just the display module, with no PCB included. Although it uses a 40-pin connector, it does not share the same pinout as standard rectangular 800x480 or 480x272 displays, so check your driver board and pinout carefully before designing it in.
Specifications:
- Display size: 3.7"
- Resolution: 240x960
- Colour depth: 18-bit full-color pixels
- Panel type: IPS display
- Viewing angle: up to 80 degrees off-axis in any direction
- Touchscreen: This version does not have a touchscreen.
- TFT driver: ST7701S
- Interface: SPI and TTL RGB 'dot clock' data
- SPI function: only for configuring the display - you cannot draw pixels over SPI
- Connector: 40-pin connector
- Pinout compatibility: does not have the same pinout as standard 'rectangular' 800x480 (4.3", 5" or 7") or 480x272 (4.3") displays
- Internal memory setup: 360x960
- Overscan: the leftmost 120 pixels are considered overscan and don't show up
- Included hardware: just the display module; no PCB is included
- Technical resource: Display Spec Sheet
- Technical resource: ST7701 Datasheet
- Technical resource: Display Init Code Listing
- Technical resource: Timing Diagram
Choose this display only if your controller or driver board can handle RGB-666 / TTL RGB output and the correct pinout.
