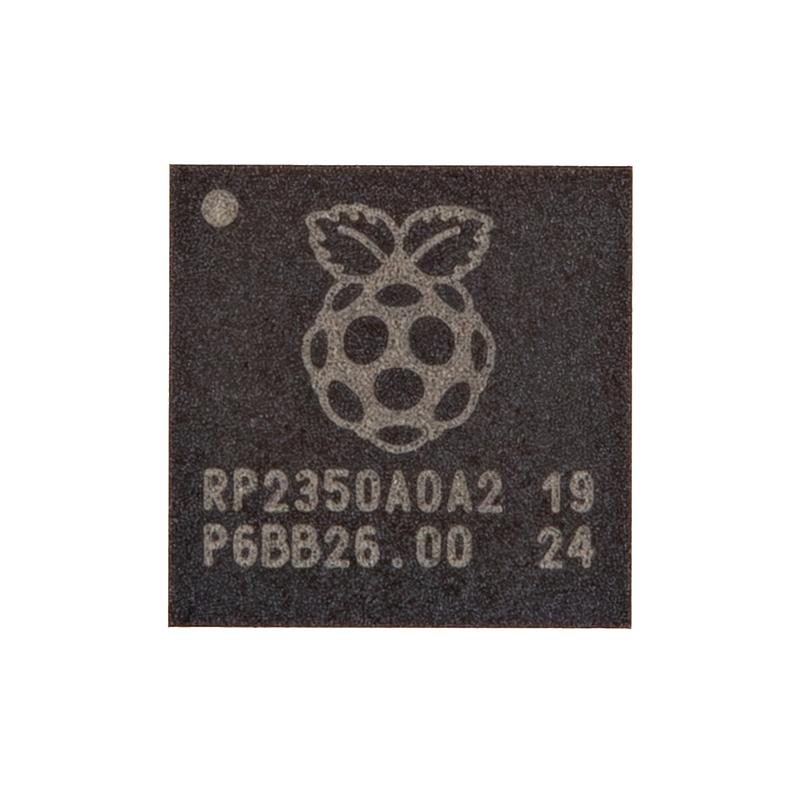

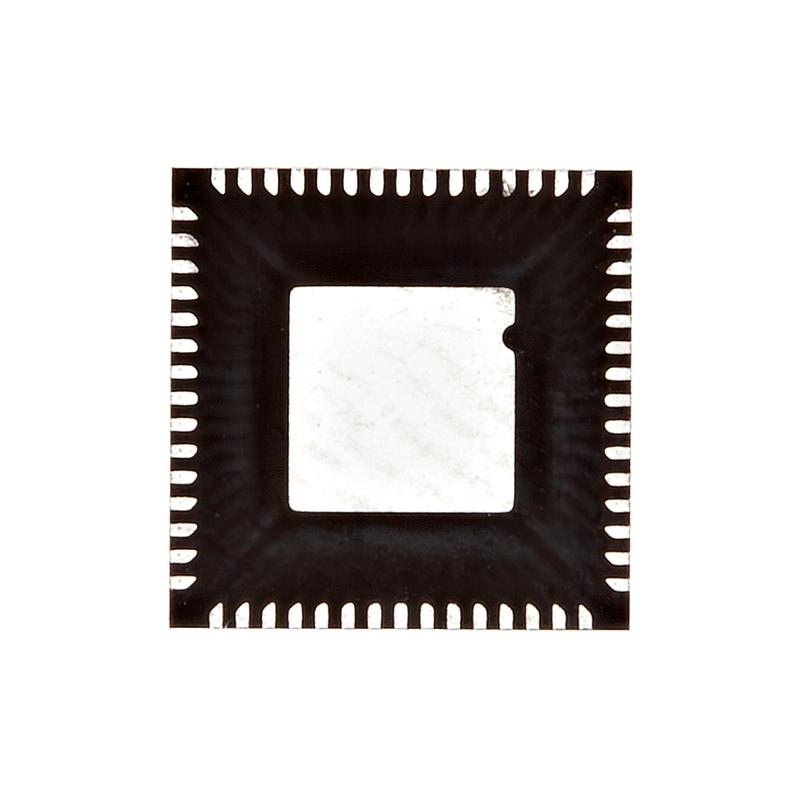

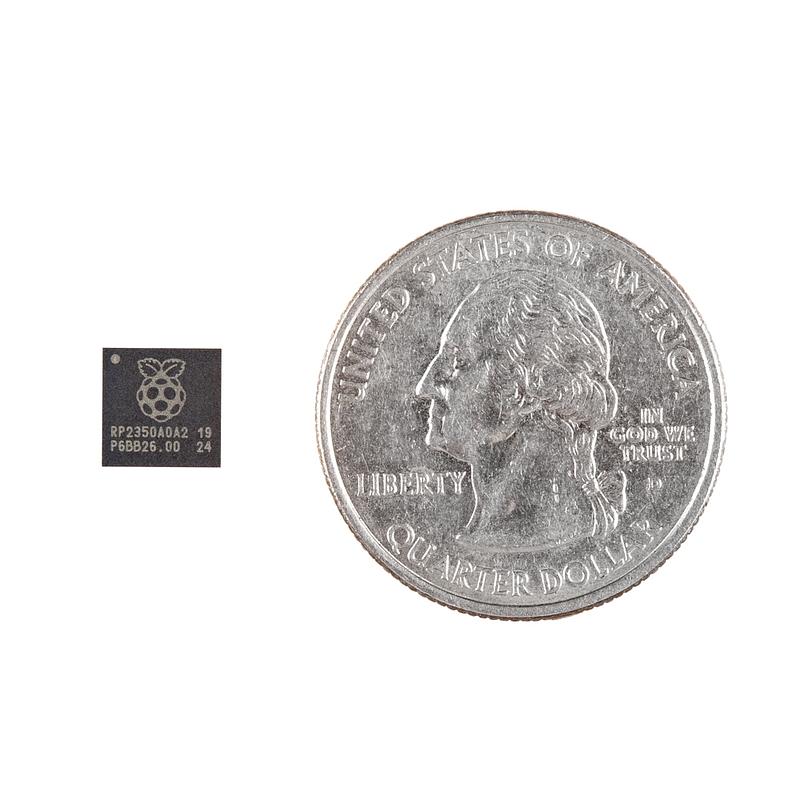

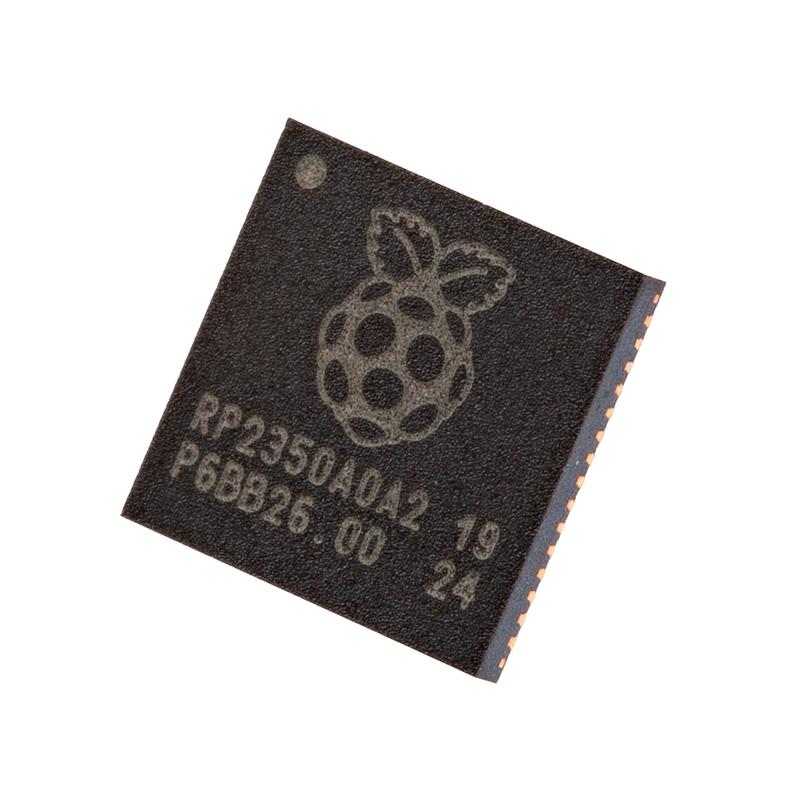

Raspberry Pi RP2350A Microcontroller IC

Jargon buster

Plain-language definitions for the technical terms used above.

ADC

An analogue-to-digital converter reads a changing voltage and turns it into a number the microcontroller can use. It matters when connecting analogue sensors such as light, sound, or variable-resistor sensors.

Arm Cortex-M33

A low-power Arm microcontroller core designed for real-time control tasks. It matters because it can handle timing-sensitive jobs such as reading sensors or driving motors while the main processor runs Linux.

CS

CS stands for chip select, a control pin used by SPI devices to tell which connected device should listen. It matters when you connect more than one SPI module to the same microcontroller, because each device usually needs its own CS pin.

GPIO

General-purpose input/output pins are microcontroller pins you can set in software to read signals, switch devices on and off, or connect to peripherals. The number of GPIO pins matters because it limits how many buttons, LEDs, sensors, and other parts you can wire directly to the board.

HSTX

HSTX is a high-speed transmit interface on RP2350-based boards for sending fast digital signals such as video-style data. It matters because it uses carefully routed high-speed signal pairs rather than ordinary low-speed wiring.

I2C

I2C is a two-wire communication bus used by many sensors and small modules. It matters because several I2C devices can share the same two wires, but each device needs a compatible address and your controller must support I2C.

IoT

Short for Internet of Things, meaning physical devices that connect to networks or the internet to send data or be controlled remotely. It matters if you want projects such as connected sensors, remote controls or classroom data-logging activities.

microcontroller

A microcontroller is a small computer on a chip that runs your program and controls connected inputs and outputs. For this product, it is the part that reads buttons and sensors, drives the display and speaker, and communicates over Bluetooth.

PWM

Pulse Width Modulation is a way for a digital pin to simulate variable output power by switching on and off very quickly. It matters for controlling things like LED brightness, motor speed, or servo-style signals from a microcontroller pin.

RISC-V

An open processor architecture used inside some modern microcontroller chips. It matters because it affects the software tools, performance, and low-power features available for developing projects on the board.

RP2040

A microcontroller chip used on many maker boards, with enough speed and flexible I/O for some camera and display projects. Compatibility with RP2040 matters because camera modules often need many pins and careful timing to read image data successfully.

RP2350

A microcontroller chip from Raspberry Pi used as the main processor on some development boards. Knowing the board is built around an RP2350 helps you check software support, pin capabilities and whether it suits MicroPython projects.

SPI

A fast serial communication bus often used for displays, memory cards, and sensors. It matters because SPI devices need specific pins for clock and data, plus a separate chip-select line for each device.

SRAM

Fast temporary memory used by a processor while a program is running. More SRAM helps with projects that handle larger data buffers, networking, displays, or more complex code.

UART

UART is a simple serial connection that sends data over separate transmit and receive wires, often labelled TX and RX. It matters because this module is designed to replace a wired UART cable with a wireless link while keeping the same serial data format.
