Pimoroni PiGlow

$23.20

Part Number:  AF-1488
Brand:  Adafruit Australia

DescriptionGet visual feedback from your Pi! The PiGlow is a small add on board for the Raspberry Pi that provides 18 individually controllable LEDs. You can use it for all sorts of things! And of course, it fits inside a Pibow! There are tons of things you can do with it: Mood lighting / ambiance Showing current system load Notify you of events like mentions...
We can dispatch today: - units (delivered by -)
We can dispatch in - days: - units (delivered by -)

Description

Get visual feedback from your Pi!

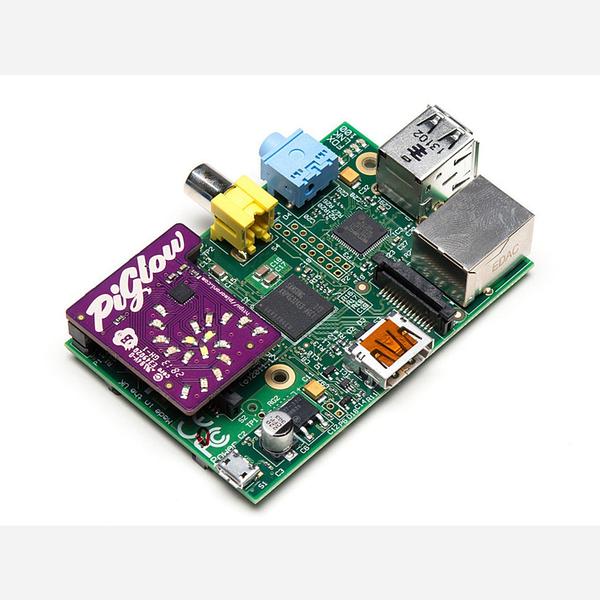

The PiGlow is a small add on board for the Raspberry Pi that provides 18 individually controllable LEDs. You can use it for all sorts of things! And of course, it fits inside a Pibow!

There are tons of things you can do with it:

  • Mood lighting / ambiance
  • Showing current system load
  • Notify you of events like mentions in tweets or incoming e-mail
  • Feedback the status of scripts/daemons running on your Pi
  • Works great when VESA mounted to provide a cast against a wall
  • ...and pretty much anything else you can think of!

This board uses the SN3218 8-bit 18-channel PWM chip to drive 18 surface mount LEDs. Communication is done via I2C over the GPIO header with a bus address of 0x54 (Python example code provided). Each LED can be set to a PWM value of between 0 and 255. Comes fully assembled and ready to rock.

  • 18 LEDs (three each of red, orange, yellow, green, blue, and white)
  • Great to provide feedback if you're running your Pi headless
  • PWM (dimming) control for each channel
  • Fully assembled (no soldering required)
  • Python code to access and control lighting provided

Lots of example code for Python, Scratch, WiringPi, etc over at the Pimoroni page

Pimoroni PiGlow (3:55)

Technical Details

  • Max Dimensions: 36.75mm / 1.44" x 33.64mm / 1.32"

For product support, replacement parts and warranty for Pimoroni products visit the Pimoroni forum or contact Pimoroni directly.
