This product is no longer available
We no longer stock NVIDIA Jetson AGX Orin 64GB Developer Kit, but here are current alternatives in NVIDIA Jetson Developer Kits.

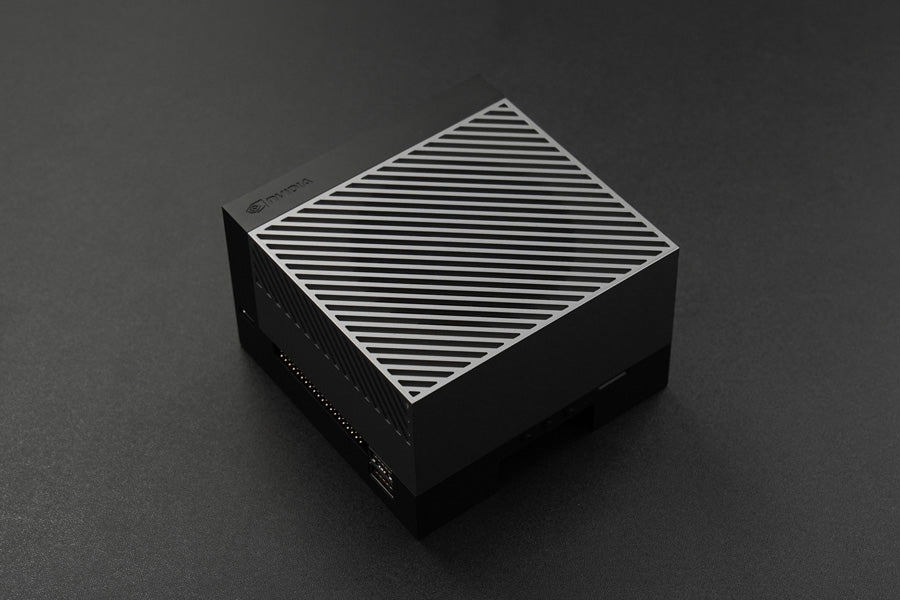

NVIDIA Jetson AGX Orin 64GB Developer Kit
Discontinued
The NVIDIA Jetson AGX Orin 64GB Developer Kit delivers up to 275 TOPS of AI performance in a compact form factor. Built on the NVIDIA Ampere GPU architecture with next-generation deep learning and vision accelerators, it's designed for prototyping advanced AI-powered robots and autonomous machines.
The kit includes a Jetson AGX Orin 64GB module and can emulate all Jetson Orin modules. It supports multiple concurrent AI application pipelines and is compatible with the full Jetson software stack, including NVIDIA JetPack SDK, Isaac for robotics, DeepStream for vision AI, and Riva for conversational AI. Pre-trained models from the NGC catalogue and the NVIDIA Transfer Learning Toolkit accelerate development workflows.
Key Features
- 275 TOPS AI Performance – NVIDIA Ampere GPU with 2048 CUDA cores and 64 Tensor cores
- 12-Core ARM CPU – Cortex-A78AE v8.2 64-bit with 3 MB L2 + 6 MB L3 cache
- 64 GB LPDDR5 Memory – 256-bit interface at 204.8 GB/s bandwidth
- Dual Deep Learning Accelerators – 2× NVDLA v2.0 plus PVA v2.0 vision accelerator
- Extensive I/O – PCIe Gen 4, 10 GbE, USB 3.2, DisplayPort 1.4a, 16-lane MIPI CSI-2, 40-pin header
- Full Software Stack – JetPack SDK with CUDA-X, TensorRT, cuDNN, DeepStream, and NVIDIA Container Runtime
- Module Emulation – Can emulate all Jetson Orin modules for development flexibility
Specifications
- GPU: NVIDIA Ampere – 2048 CUDA cores, 64 Tensor cores
- CPU: 12-core ARM Cortex-A78AE v8.2 64-bit, 3 MB L2 + 6 MB L3
- DL Accelerator: 2× NVDLA v2.0
- Vision Accelerator: PVA v2.0
- Memory: 64 GB 256-bit LPDDR5, 204.8 GB/s
- Storage: 64 GB eMMC 5.1
- Video Encode: 2×4K60 | 4×4K30 | 8×1080p60 | 16×1080p30 (H.265)
- Video Decode: 1×8K30 | 3×4K60 | 7×4K30 | 11×1080p60 | 22×1080p30 (H.265)
- Power: 15 W – 60 W
- Camera: 16-lane MIPI CSI-2 connector
Connectivity
- PCIe: x16 slot (up to x8 PCIe 4.0), M.2 Key M (up to x4 PCIe 4.0), M.2 Key E (up to x1 PCIe 4.0)
- Ethernet: RJ45, up to 10 GbE
- USB Type-C: 2× USB 3.2 Gen 2
- USB Type-A: 2× USB 3.2 Gen 2, 2× USB 3.2 Gen 1
- USB Micro-B: USB 2.0
- Display: DisplayPort 1.4a (+MST)
- microSD: UHS-1 up to SDR104 mode
- Headers: 40-pin (I2C, GPIO, SPI, CAN, I2S, UART, DMIC), 12-pin automation, 10-pin audio panel, 10-pin JTAG, 4-pin fan, 2-pin RTC battery backup
- Buttons: Power, Force Recovery, Reset
- Dimensions: 110 × 110 × 71.65 mm (includes feet, carrier board, module, and thermal solution)
Ideal For
- AI-powered robotics and autonomous machines
- Multi-sensor fusion and 3D perception
- Intelligent video analytics with DeepStream
- Edge AI deployment and prototyping
Package Contents
- 1× NVIDIA Jetson AGX Orin 64GB Developer Kit
