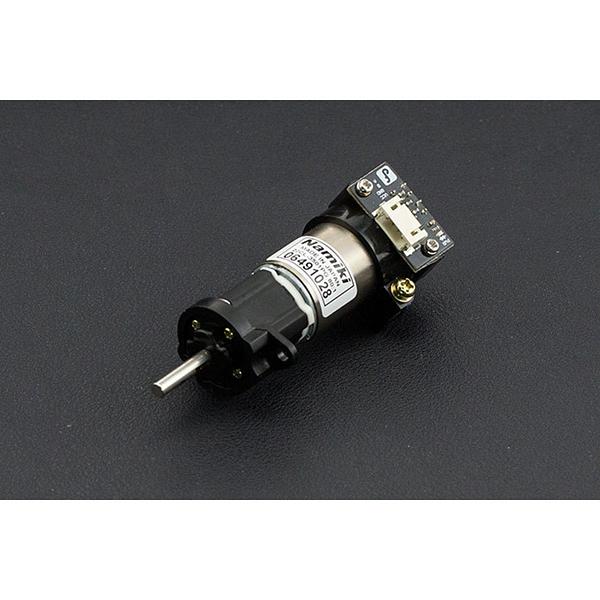

Namiki 12V Coreless DC Motor 120rpm w/Encoder (16.5kg*cm) (USED)

$27.60

Part Number:  DF-FIT0413
Brand:  DFRobot Australia

Introduction This geared motor is made from Japan; its model is 22CL-3501PG. It comes with the photoelectric encoder output, planetary gear reducer and 80:1 gear ratio, which provide 120 rpm with 12VDC rated voltage. The encoder ouput is compatible with DFRobot's Gravity interface.  Specification Brand: Namiki Coreless Motor (Japan) Model: 22CL-3501PG Operating Voltage: 12VDC Rated power: 15W Stall torque: 16.5kg*cm Continuous torque: 5kg*cm Diameter: 22mm Shaft length:...
We can dispatch today: - units (delivered by -)
We can dispatch in - days: - units (delivered by -)

Introduction

This geared motor is made from Japan; its model is 22CL-3501PG. It comes with the photoelectric encoder output, planetary gear reducer and 80:1 gear ratio, which provide 120 rpm with 12VDC rated voltage.

The encoder ouput is compatible with DFRobot's Gravity interface.

Specification

  • Brand: Namiki Coreless Motor (Japan)
  • Model: 22CL-3501PG
  • Operating Voltage: 12VDC
  • Rated power: 15W
  • Stall torque: 16.5kg*cm
  • Continuous torque: 5kg*cm
  • Diameter: 22mm
  • Shaft length: 19mm (with 90 degree double-cut)
  • Length: 65mm (includes encoder gear box)
  • Stall current: 1.8A
  • Reduction ratio: 80:1 (metal planetary reduction gear)
  • Output speed: 120 RPM@12VDC
  • Weight: 140g

Documents

Shipping List

  • Namiki 12V Coreless DC Motor 120rpm w/Encoder x1
  • Encoder cable x1
