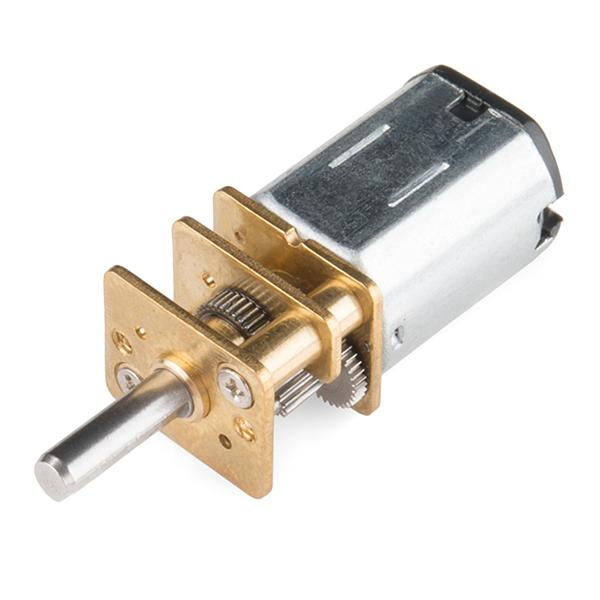

These micro gearmotors are incredibly tough and feature full metal gears. They have a gear ratio of 5:1 and operate up to 12 volts and have a stall torque of 2 oz-in. and a max speed of 4900 RPM. Each micro gearmotor sports a 3mm D-shaft.

Note: The micro gearmotor enclosures are sold separately, you can find them here.


  • Voltage: 6 - 12 Volts
  • Gear Ratio: 5:1
  • Stall Torque: ½ oz-in. (6/12V)
  • Speed: 2500/4900 RPM (6/12V)
  • No Load Current: 50/120 mA (6/12V)
  • Stall Current: 360/1600 mA (6/12V)
  • DC Reversible


  • Motor Size: 26 x 12 x 10mm
  • Shaft Size: 3mm Diameter x 10mm Length
  • Weight: 17g

The Micro Gearmotor - 4900 RPM (6-12V) appears in the following collections:

SKU SF-ROB-12408
