Mean Well Switching Power Supply - 24VDC 14.6A
This is the big kahuna from Mean Well, a 350W single output switching power supply. This power supply is extremely reliable and beefy, able to output 24VDC a...
Get notified when back in stock

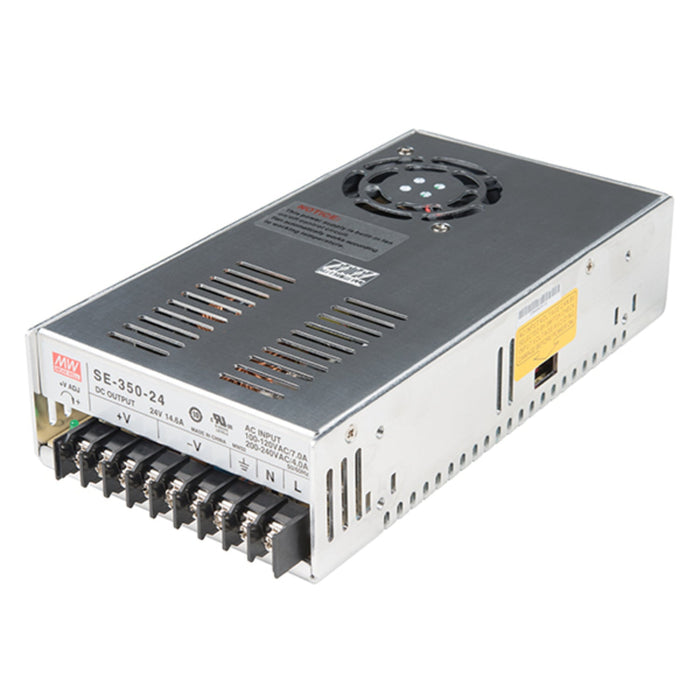

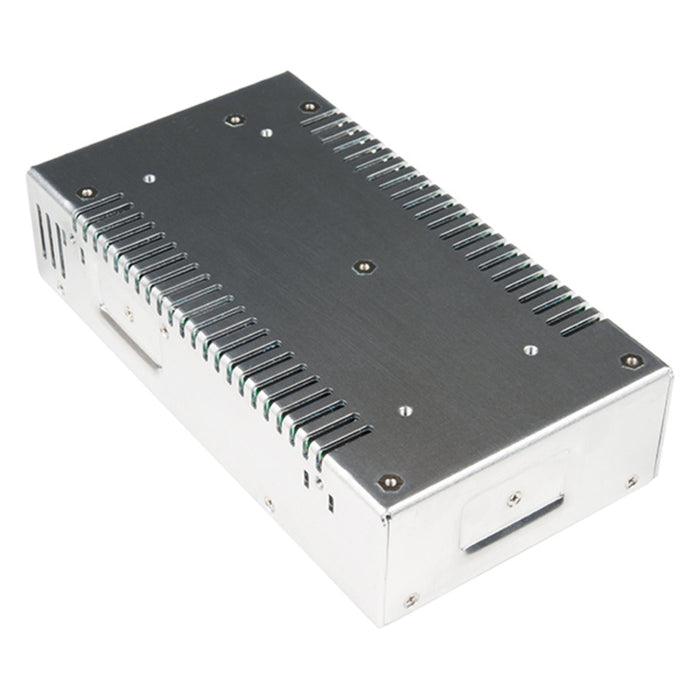

This is the big kahuna from Mean Well, a 350W single output switching power supply. This power supply is extremely reliable and beefy, able to output 24VDC at 14.6A. If you’ve been looking for a powerful power supply for your next big project, look no further. We can definitely attest to its durability with its metal casing, built-in constant current-limiting circuit, fixed switching frequency at 90KHz and ability to withstand a 300VAC surge input for up to five seconds.

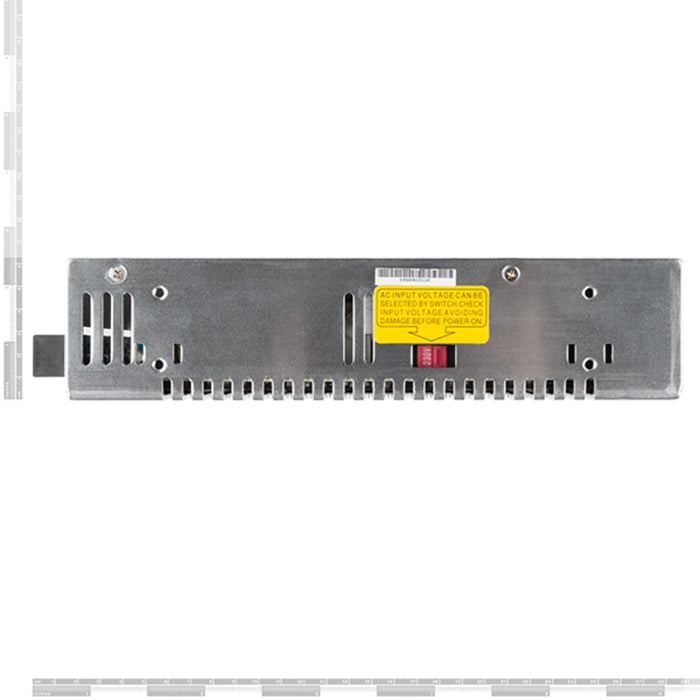

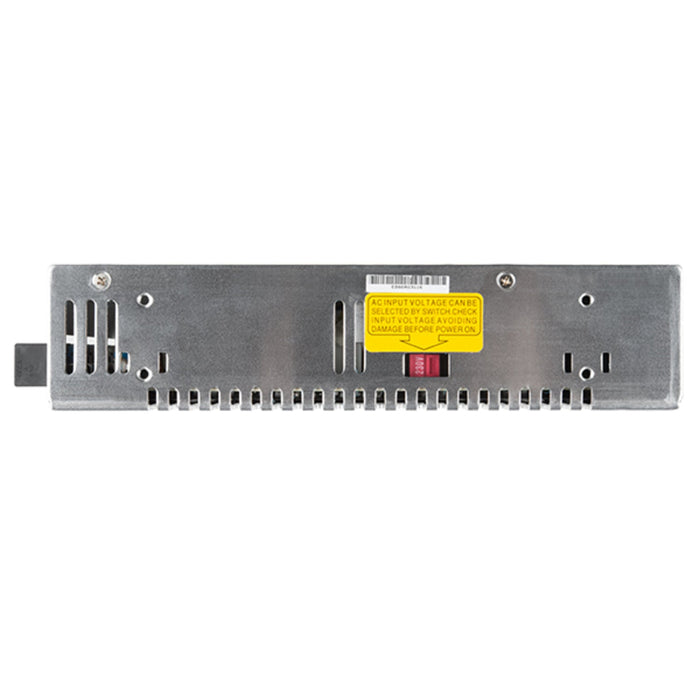

Inside the metal case that surrounds the power supply you will find a selector switch to change the voltage range between 90VAC to 132VAC and 180VAC to 264VAC, or 254VDC to 370VDC. This specific model is cooled by forced air cooling with a built-in DC fan (with On/Off control) and operates at a temperature of -20°C to +60°C. Mean Well has really outdone themselves with their power supplies, which are high quality and should last for quite some time without any loss in reliability!
Features:
- Output Voltage: 24VDC
- Output Current Range: 0–14.6A
- Output Rated Power: 350W
- Input Voltage Range: 90–132VAC / 180–264VAC by switch, 254–370VDC

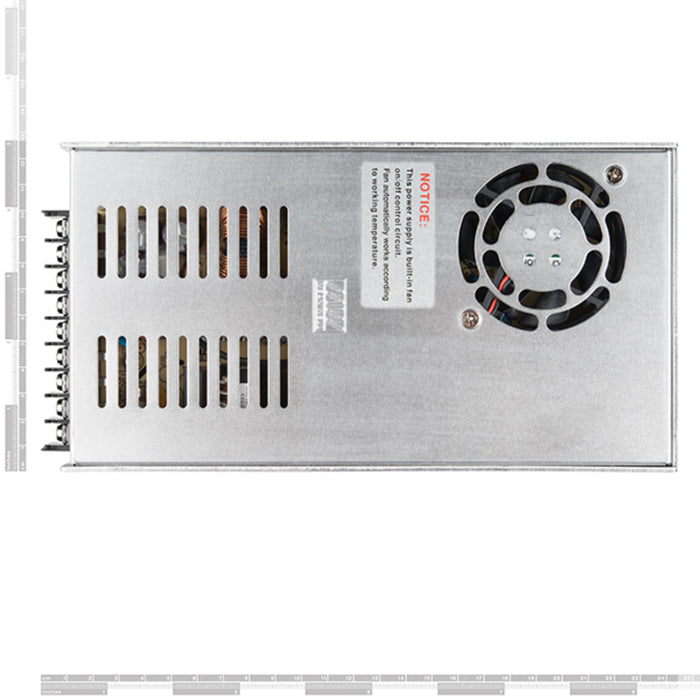

- Forced air cooling by built-in DC fan
- Withstand 300VAC surge input for 5 seconds

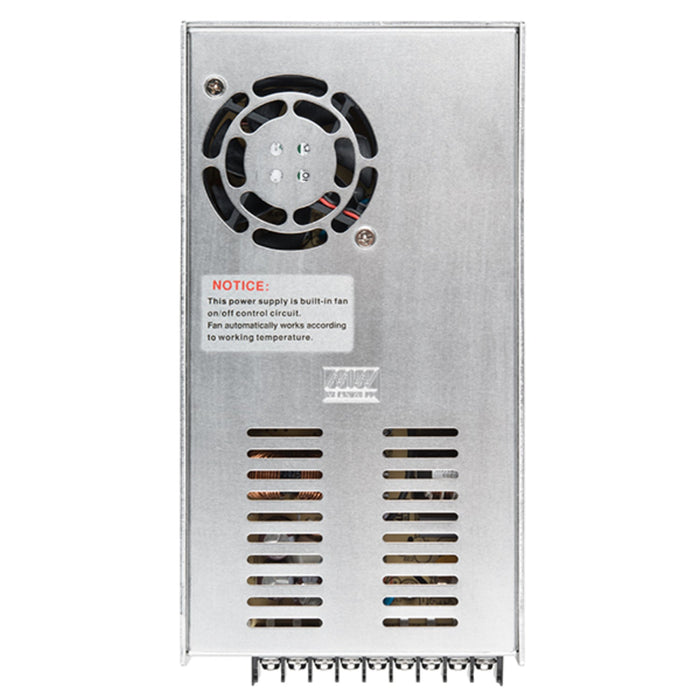

- Built-in cooling Fan On/Off control
- Built-in constant current-limiting circuit
- LED indicator for power on
- Fixed switching frequency at 90KHz
- 100% full load burn-in test
Documents:
- Datasheet (SE-350-24)
Jargon buster
Plain-language definitions for the technical terms used above.
- DC
- DC means direct current, where electricity flows in one constant direction, as supplied by batteries, USB ports and many plug-pack power supplies. When a product specifies DC, it runs from a DC supply rather than mains AC, so you need to provide the correct voltage and polarity.
- LED
- A light-emitting diode (LED) is a small electronic component that emits light when current flows through it in the correct direction. Because it only conducts one way, its polarity matters, and a through-hole LED must be soldered the correct way around to light up.
