This product is no longer available
We no longer stock Mean Well Switching Power Supply - 12VDC, 12.5A, but here are current alternatives in Power Supplies.
Mean Well Switching Power Supply - 12VDC, 12.5A
Discontinued

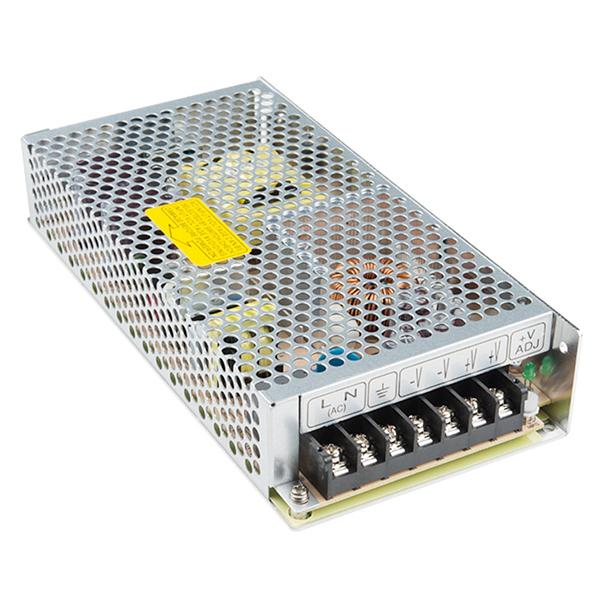

A 150 W single-output switching power supply from Mean Well (NES-150-12), delivering 12 V DC at up to 12.5 A. The enclosed metal case provides durability and shielding, while built-in protections guard against short circuits, overloads, and overvoltage conditions.
A voltage range selector switch inside the enclosure lets you choose between 90–132 V AC and 180–264 V AC input ranges (also supports 254–373 V DC). Cooled by free air convection with no fan required.
Key Features
- 150 W Output – 12 V DC at up to 12.5 A
- Universal AC Input – 90–132 V AC or 180–264 V AC (switch-selectable)
- Enclosed Metal Case – Durable construction with built-in shielding
- Multiple Protections – Short circuit, overload, and overvoltage
- Fanless Cooling – Free air convection, no moving parts
- LED Power Indicator – Visual confirmation of operation
- 100% Burn-In Tested – Full load tested at the factory
Specifications
- Output Voltage – 12 V DC
- Output Current – 0–12.5 A
- Output Power – 150 W
- Input Voltage – 90–132 V AC / 180–264 V AC (selectable) or 254–373 V DC
- Operating Temperature – −20°C to +60°C
