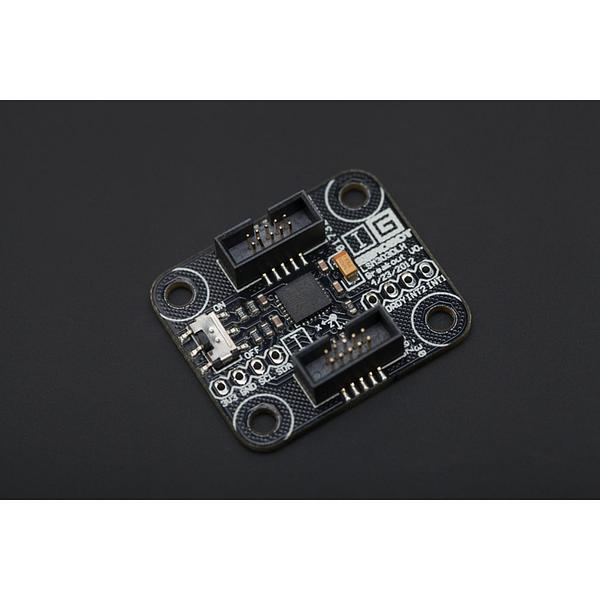

LSM303 Compass Module (Gadgeteer Compatible)

$31.26

Part Number:  DF-TOY0035
Brand:  DFRobot Australia

Introduction This LSM303 Compass Module is .NET Gadgeteer compatible, which uses the .NET Micro Framework to make writing code for your device as easy as writing a desktop, Web or Windows Phone application.   This module carries LSM303DLH, which is a triple axis accelerometer combined with a triple axis magnetic sensor. It can supply tilt compensation. It is nearly the most cost-effective compass sensor on...
We can dispatch today: - units (delivered by -)
We can dispatch in - days: - units (delivered by -)
Introduction
This LSM303 Compass Module is .NET Gadgeteer compatible, which uses the .NET Micro Framework to make writing code for your device as easy as writing a desktop, Web or Windows Phone application.

This module carries LSM303DLH, which is a triple axis accelerometer combined with a triple axis magnetic sensor. It can supply tilt compensation. It is nearly the most cost-effective compass sensor on the market now.

This module can be used in various situations like Map rotation, Display orientation and etc.

NOTE: SDK or drivers for Gadgeteer platform not included. Drivers are a community maintained projects, for contributions please forward directly to Github or Codeplex.
Applications
  • Compensated compassing
  • Map rotation
  • Position detection
  • Motion-activated functions
  • Free-fall detection
  • Intelligent power-saving for handheld devices
  • Display orientation
  • Gaming and virtual reality input devices
  • Impact recognition and logging
  • Vibration monitoring and compensation
Specification
  • .NET Gadgeteer Compatible
  • Power supply 3.3V
  • Chip LSM303DLH
  • ±1.3 to ±8,1 gauss magnetic field full-scale
  • ±2 g/±4 g/±8 g dynamically selectable fullscale
  • 16-bit data out
  • 2 independent programmable interrupt
  • generators for free-fall and motion detection
  • Embedded self-test
  • Accelerometer sleep-to-wakeup function
  • 6D orientation detection
  • Dimensions: 32x27mm
Documents Shipping List
  • LSM303 Compass Module(.NET Gadgeteer Compatible) x1
  • Cable for Gadgeteer x1
