Lipo Charger-Type C
This is a Type-C Lipo charger designed for single-cell 3.7V lithium battery. The compact size makes it easy to integrate into your applications. The ch...
Get notified when back in stock

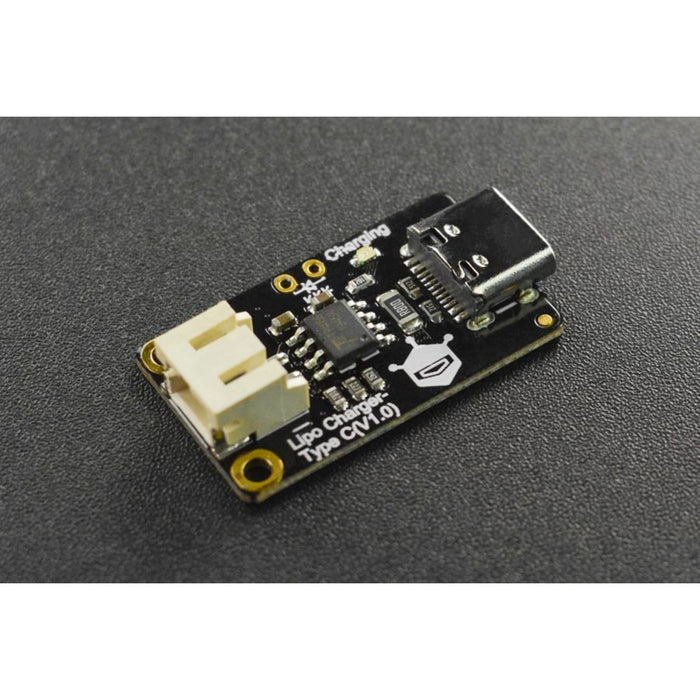

This is a Type-C Lipo charger designed for single-cell 3.7V lithium battery. The compact size makes it easy to integrate into your applications. The charger adopts TP4056X lithium battery charging IC, which guarantees you quick and safe charging, and also you can easily switch between 3 output currents (the default output current is 50mA) by selecting different bonding pads on the back. The thermal feedback inside the TP4056X can automatically adjust the charging current to limit the chip temperature under high power operation or high ambient temperature conditions.
Plug this charger into power source via its Type-C port, the LED on the charger will flash when no battery is not connected; keep on when charging and go off when the battery is fully charged. So, this LED will consume nothing of your battery. Besides, you can also connect an external indicator, which allows you to easily check the charging status when this module is integrated into your projects.
There are 3 charging stages provided: trickle charge, constant current charge, and constant voltage charge, which guarantee the safety and save the charging time.
Note: The low-current mode can charge large-capacity batteries, but the high-current gear cannot charge small-capacity batteries. If the charging current is too large, it may cause the battery explosion.
Battery Capacity Recommended Charging Gear 100-400mAh 50mA 400-1000mAh 200mA 1000mAh above 500mAFEATURES
- Multiple current output modes（50/200/500mA）
- Mini size
- External indicator available
- Safe and quick charging
SPECIFICATION
- Input Voltage: 5V
- Charging Current: 50mA, 200mA, 500mA
- Limited Charging Voltage: 4.2V±1%
- Working Temperature: -40℃~85℃
- Dimension: 16.5 x 28mm/0.65x1.10”
DOCUMENTS
Jargon buster
Plain-language definitions for the technical terms used above.
- LED
- A light-emitting diode (LED) is a small electronic component that emits light when current flows through it in the correct direction. Because it only conducts one way, its polarity matters, and a through-hole LED must be soldered the correct way around to light up.
- LiPo
- A LiPo (lithium polymer) battery is a rechargeable lithium battery widely used in portable projects because it is light and compact. LiPo cells need correct charging circuitry and careful handling to stay safe, so equipment that supports LiPo generally includes charging or protection hardware suited to that battery type.
- Type-C
- USB Type-C (USB-C) is a small, reversible USB connector used for charging, power, and data transfer on many modern devices. A Type-C port or plug indicates the cable and charger connection needed to power, charge, or communicate with a device.
