LattePanda Windows 10 Mini PC (2G/32GB) - A Powerful Windows 10 Mini PC
$324.05
|
Only 1 left
You are viewing a 2GB RAM LattePanda Windows 10 mini PC with 32GB eMMC memory. It does include a Windows 10 OEM activation key, which will activate ...
Get notified when back in stock
Estimated Delivery
Arrives
Order now — ships Thu 6 Aug
Disclaimer
Secure checkout

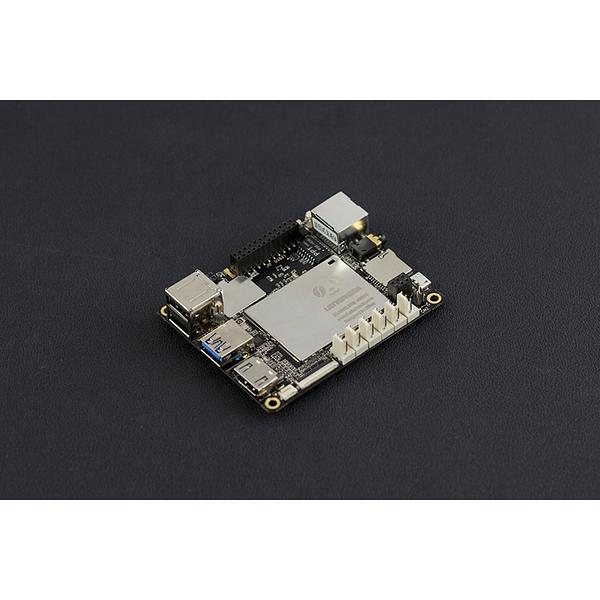

You are viewing a 2GB RAM LattePanda Windows 10 mini PC with 32GB eMMC memory. It does include a Windows 10 OEM activation key, which will activate on the initial boot. A LattePanda is a complete Windows 10 single board computer. It has everything a regular PC has and can do anything that a regular PC does. It is compatible with almost every gadget you know: printers, joysticks, cameras and more. Any peripherals that work on your PC will work on a LattePanda. A LattePanda comes pre-installed with a full edition of Windows 10 Home Edition, so you can run powerful tools such as Visual Studio, NodeJS, Java, Processing, and more. With existing APIs, you can develop your own software and hardware projects on a LattePanda like you would on a normal PC - C#, Javascript, Ruby etc. Say goodbye to your bulky laptop! But wait! A LattePanda also includes an integrated Arduino compatible co-processor, which means it can be used to control and sense the physical world! Whether you are a Windows developer, IoT developer, DIY fanatic, interactive designer, robotics whizz, or maker, a LattePanda single board computer can aid your creative process! We have updated the processor since LattePanda V1.0. All versions of the LattePanda now ship with an upgraded CPU (Intel Z8350 - up to 1.92GHz!) Featured on EEVBlog! Featured on Explaining Computers! Official Forum! Note: If you have a problem with Win10 activation, please check Lattepanda FAQ
SPECIFICATIONS
- Intel Cherry Trail Z8350 Quad Core Processor
- Base Frequency: 1.44GHz (1.92GHz Burst Frequency)
- Operating System: Windows 10 Home Edition
- RAM: 2GB DDR3L
- Storage Capacity: 32GB
- GPU: Intel HD Graphics, 12 EUs @200-500Mhz, single-channel memory
- USB 3.0 x 1, USB 2.0 x 2
- Wi-Fi 802.11n 2.4G
- Bluetooth 4.0
- Integrated Arduino Co-processor: ATmega32u4 (Arduino Leonardo)
- Video output: HDMI and MIPI-DSI
- Onboard touch panel overlay connector
- Supports 100Mbps Ethernet
- Intel Processor GPIO x 6
- ATmega Processor GPIO x 20
- Gravity Interface Connectors x 6
- Voltage: 5V@2A
- Board Dimensions: 88 x 70mm / 3.46 x 2.76"
- Package Dimensions: 110 x 94 x 30 mm/4.33 x 3.70 x 1.18"
- NET Weight: 55g
- Gross Weight: 100g
- RoHS, FCC and CE Compliant
DOCUMENTS
SHIPPING LIST
- LattePanda 2G/32GB x 1
- WiFi Antenna x 1
- Printed Safety Precautions x 1
Jargon buster
Plain-language definitions for the technical terms used above.
- DSI
- DSI stands for Display Serial Interface, a high-speed connection commonly used to send video data from a computer board to a display. It matters because DSI signals are not simple GPIO wires, so the cable, connector, and signal routing need to match the display interface.
- eMMC
- Embedded MultiMediaCard is built-in flash storage soldered onto a board, similar in purpose to an SD card but integrated. It matters because it holds the operating system and files without needing a separate memory card.
- GPIO
- General-purpose input/output pins are microcontroller pins you can set in software to read signals, switch devices on and off, or connect to peripherals. The number of GPIO pins matters because it limits how many buttons, LEDs, sensors, and other parts you can wire directly to the board.
- Gravity
- Gravity is DFRobot’s plug-in connector system for sensors, motors and modules, using standard cables to reduce loose jumper wiring. It matters because Gravity-compatible parts can connect directly to these ports, while non-Gravity parts may need adapters or manual wiring.
- HDMI
- HDMI is a common digital video and audio connection used by computers, media players, and many displays. If a display kit has HDMI input, it is usually much easier to test with a single-board computer because it can act like a normal monitor.
- IoT
- Short for Internet of Things, meaning physical devices that connect to networks or the internet to send data or be controlled remotely. It matters if you want projects such as connected sensors, remote controls or classroom data-logging activities.
- MIPI
- MIPI is a high-speed display and camera interface often used inside phones, tablets, and embedded devices. It matters because raw MIPI displays usually need special driver hardware or software support, unlike plug-and-play HDMI screens.
- RAM
- RAM (random-access memory) is fast, temporary memory a device uses for working data while it is running; in its common volatile form, its contents are lost when power is removed. Some devices offer a mode that applies settings to RAM only, which is handy for testing changes temporarily because they are not stored permanently and disappear at power-off.
- USB 2.0
- USB 2.0 is a widely used wired standard for carrying both data and power between a device and a computer or other compatible host, with data rates up to 480 Mbps. It indicates the kind of port a device uses and that it should work with most modern and many older computers.
