Jetson Nano Development Kit
All Products
New Arrivals
NVIDIA Jetson AI & Robotics Kits
NVIDIA Jetson Developer Kits
Brands and Manufacturers
Waveshare
$334.55
|
In stock at supplier
A complete Jetson Nano development kit that serves as an alternative to the official B01 kit. This kit includes a Jetson Nano module with 16GB onboard eMMC s...
Get notified when back in stock
Estimated Delivery
Arrives
Disclaimer
Secure checkout

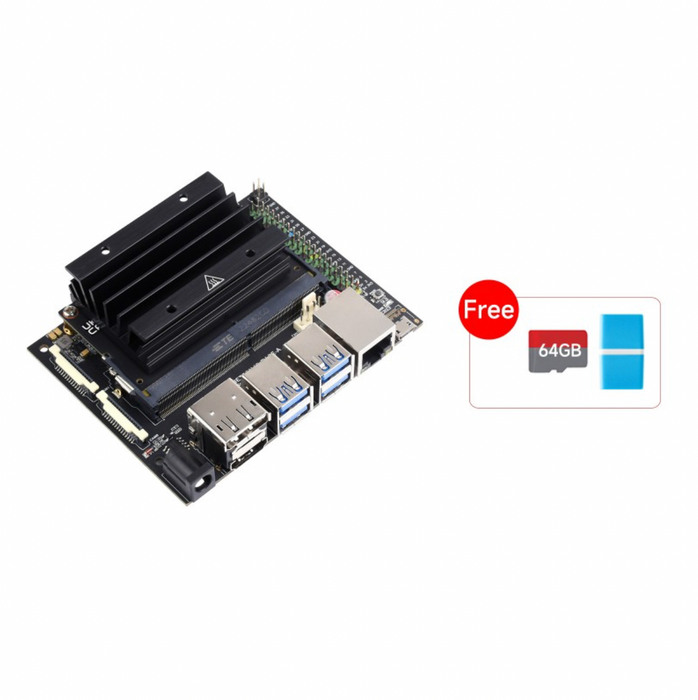

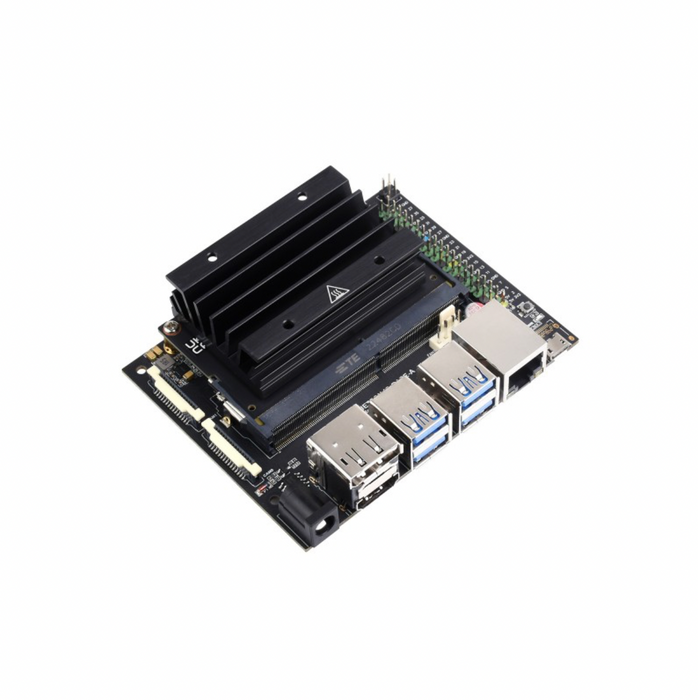

A complete Jetson Nano development kit that serves as an alternative to the official B01 kit. This kit includes a Jetson Nano module with 16GB onboard eMMC storage plus a 64GB TF card, eliminating the need to purchase storage separately.

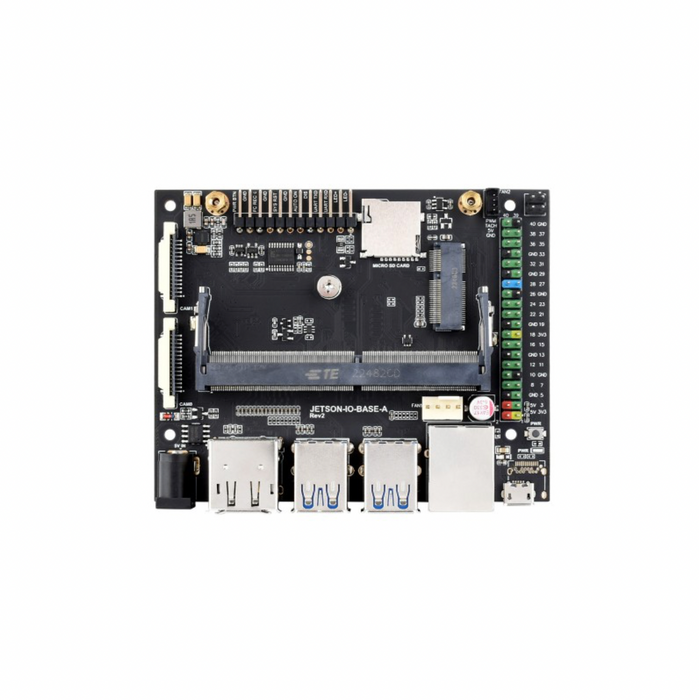

The carrier board provides nearly identical peripheral interfaces, size, and thickness to the official B01 kit, making it compatible with existing expansion modules and cases. Ideal for AI applications including image classification, object detection, segmentation, and speech processing.
Key Features
- 16GB Onboard eMMC – More stable than TF card boot, no external card required
- 64GB TF Card Included – Extra storage for complex projects
- 4× USB 3.0 Ports – High-speed data transfer for peripherals
- Dual Display Output – HDMI and DisplayPort connectors
- 2× MIPI CSI Camera – Connect up to two camera modules
- 40-Pin GPIO Header – Colour-coded with clear labels
- B01 Compatible – Works with existing cases and expansion modules
Ideal For
- AI and machine learning projects
- Image classification and object detection
- Computer vision applications
- Robotics and autonomous systems
- Speech processing and NLP
Interfaces
- USB: 4× USB 3.0, 1× Micro USB (power/data)
- Display: HDMI, DisplayPort
- Camera: 2× MIPI CSI connectors
- Network: Gigabit Ethernet (10/100/1000, PoE-ready with external module)
- Storage: TF card slot, M.2 Key E connector
- GPIO: 40-pin header
- Power: DC jack (5V) or Micro USB (5V)
- Cooling: 1.25mm and 2.54mm fan headers
Package Contents
- 1× Jetson Nano Module (16GB eMMC)
- 1× Carrier Board
- 1× 64GB TF Card
Tip: The onboard eMMC provides more stable read/write performance compared to TF card boot. The included TF card can be used for additional storage or as an alternative boot disk.
Jargon buster
Plain-language definitions for the technical terms used above.
- DC
- DC means direct current, where electricity flows in one constant direction, as supplied by batteries, USB ports and many plug-pack power supplies. When a product specifies DC, it runs from a DC supply rather than mains AC, so you need to provide the correct voltage and polarity.
- DisplayPort
- A digital display interface used to connect monitors and other video displays. It matters because the supported DisplayPort version affects display resolution, refresh rate and monitor compatibility.
- eMMC
- Embedded MultiMediaCard is built-in flash storage soldered onto a board, similar in purpose to an SD card but integrated. It matters because it holds the operating system and files without needing a separate memory card.
- GPIO
- General-purpose input/output pins are microcontroller pins you can set in software to read signals, switch devices on and off, or connect to peripherals. The number of GPIO pins matters because it limits how many buttons, LEDs, sensors, and other parts you can wire directly to the board.
- HDMI
- HDMI is a common digital video and audio connection used by computers, media players, and many displays. If a display kit has HDMI input, it is usually much easier to test with a single-board computer because it can act like a normal monitor.
- Headers
- Rows of connector contacts on a fixed pitch (commonly 2.54 mm) used to link a board to a breadboard, jumper wires, or another board. They come as male pin headers and female socket headers; when a module ships with pre-soldered headers it can be used straight away, whereas bare pads require soldering the pins yourself.
- M.2
- M.2 is a compact edge-connector standard for plugging small modules - such as SSDs, wireless cards or microcontroller modules - into a host board without soldering. The same slot shape can carry different interfaces (for example PCIe, SATA or USB), so keying and the supported module type need to be checked.
- MIPI
- MIPI is a high-speed display and camera interface often used inside phones, tablets, and embedded devices. It matters because raw MIPI displays usually need special driver hardware or software support, unlike plug-and-play HDMI screens.
- PoE
- Power over Ethernet lets one Ethernet cable carry both network data and electrical power. This is useful when installing a device where running a separate power adaptor would be difficult.
