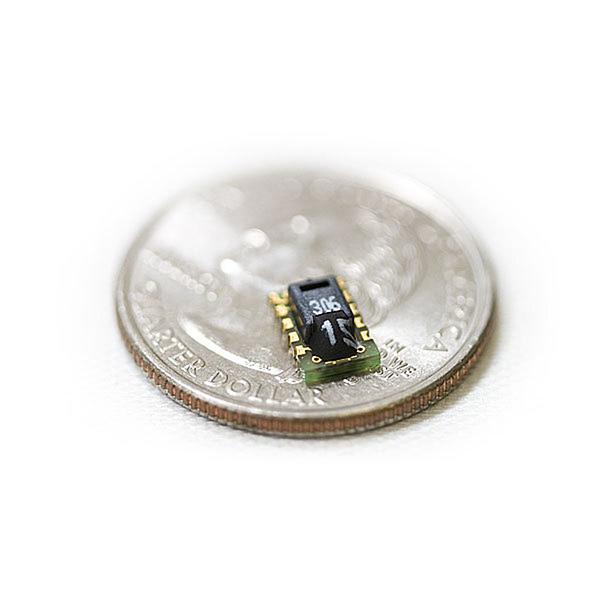

Humidity and Temperature Sensor - SHT15

$49.81

Part Number:  SF-COM-08227
Brand:  SparkFun Australia

This is a compact and easy to use relative humidity sensor from Sensirion. The SHT15 digital humidity and temperature sensor is fully calibrated and offers high precision and excellent long-term stability at low cost. The digital CMOSens Technology integrates two sensors and readout circuitry on one single chip. These sensors are really impressive! Very sensitive and straight forward to use. Features: 2 factory calibrated sensors...
We can dispatch today: - units (delivered by -)
We can dispatch in - days: - units (delivered by -)

This is a compact and easy to use relative humidity sensor from Sensirion. The SHT15 digital humidity and temperature sensor is fully calibrated and offers high precision and excellent long-term stability at low cost. The digital CMOSens Technology integrates two sensors and readout circuitry on one single chip.

These sensors are really impressive! Very sensitive and straight forward to use.

Features:

  • 2 factory calibrated sensors for relative humidity & temperature
  • Digital 2-wire interface
  • Precise dewpoint calculation possible
  • Measurement range: 0-100% RH
  • Absolute RH accuracy: +/- 2% RH (10…90% RH)
  • Repeatability RH: +/- 0.1% RH
  • Temp. accuracy: +/- 0.3°C @ 25°C
  • Fast response time < 4 sec.
  • Low power consumption (typ. 30 µW)
  • Low cost
  • High precision sensor at low cost
  • Leading CMOSens Technology for superior long-term stability

Applications:

  • Precise data logging
  • Transmitters
  • Automation & process control
  • Building control and HVAC
  • Test & Measurement
  • Medical
