Gravity LED Button Module for Arduino/micro:bit - Green
· MPN: DFR0785-G
This compact illuminated push-button module adds a simple, visible input to interactive electronics, classroom prototypes and maker projects. A transparent c...
Get notified when back in stock

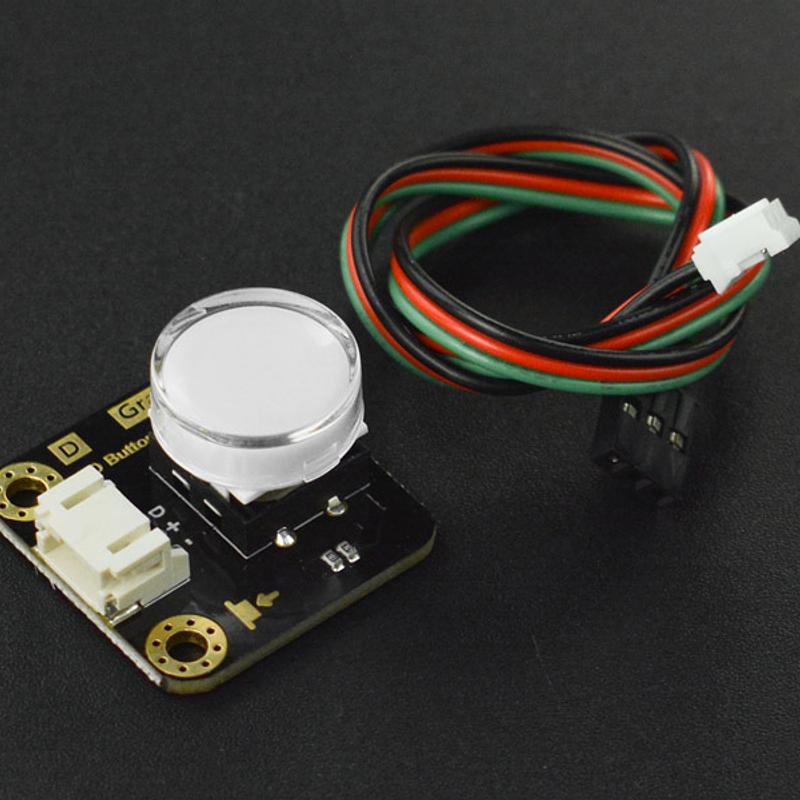

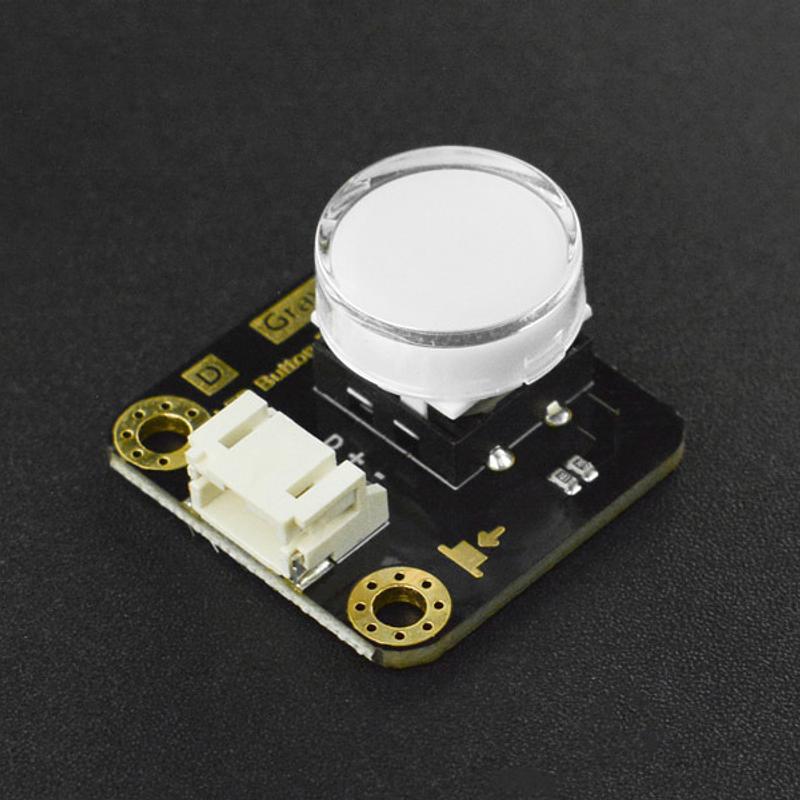

This compact illuminated push-button module adds a simple, visible input to interactive electronics, classroom prototypes and maker projects. A transparent cap shows the integrated LED, which lights as soon as the button is pressed for clear visual feedback.
It uses the Gravity PH2.0-3P connector for straightforward plug-and-play wiring with compatible expansion boards and controllers. The module outputs High when pressed and Low when released, making it easy to read as a digital input from platforms such as micro:bit and other microcontroller projects.
The green version is supplied with the LED button module and a digital sensor connector, making it suitable for control panels, robotics interfaces, interactive displays and STEM demonstrations.
Features:
- Integrated LED indicator lights when the button is pressed
- Digital signal output for simple microcontroller input detection
- Gravity PH2.0‑3P connector for plug‑and‑play wiring
- Multiple LED color options: red, yellow, green, blue, and white
- Compact design suitable for interactive electronics projects
Specifications:
- Operating Voltage: +3.3-5V (3.3V is recommended)
- Output: digital
- Connector: PH2.0-3P
- Dimension: 27×26.5mm/1.06×1.04”
- Colors Available: red, yellow, green, blue, white
A handy choice for adding tactile input with instant visual indication to beginner-friendly hardware experiments and creative computing builds.
