Graphic KS0108 LCD 128x64 + extras [white on blue]

$36.22

Part Number:  AF-188
Brand:  Adafruit Australia

DescriptionA big, bold, beautiful blue LCD with white back-lit pixels. This LCD is the graphical upgrade to those popular 16x2 LCDs, but allows full graphical control. Blue background with 128 x 64 'monochrome' white pixels Low power white LED back-light The LCD is driven by on-board 5V parallel interface chipset KS0108 and KS0107. They are extremely common and theyll documented Existing Arduino library over at...
We can dispatch today: - units (delivered by -)
We can dispatch in - days: - units (delivered by -)

Description

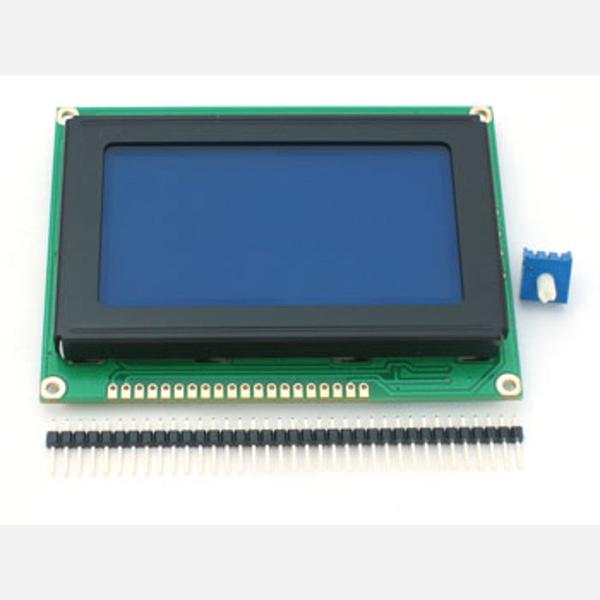

A big, bold, beautiful blue LCD with white back-lit pixels. This LCD is the graphical upgrade to those popular 16x2 LCDs, but allows full graphical control.

  • Blue background with 128 x 64 'monochrome' white pixels
  • Low power white LED back-light
  • The LCD is driven by on-board 5V parallel interface chipset KS0108 and KS0107. They are extremely common and theyll documented
  • Existing Arduino library over at the wiki use 'pin out B'
  • PCB is 93mmx70mm (~ 3.66" x 2.75") and the viewing area is 71mmx39mm (2.8" x 1.5")
  • For a datasheet, please refer this one from Vishay which is pretty much identical and a lot easier to read
  • Comes with 36-pin 0.1" header and 10K contrast pot
