GPS Receiver - EM-506 (48 Channel)

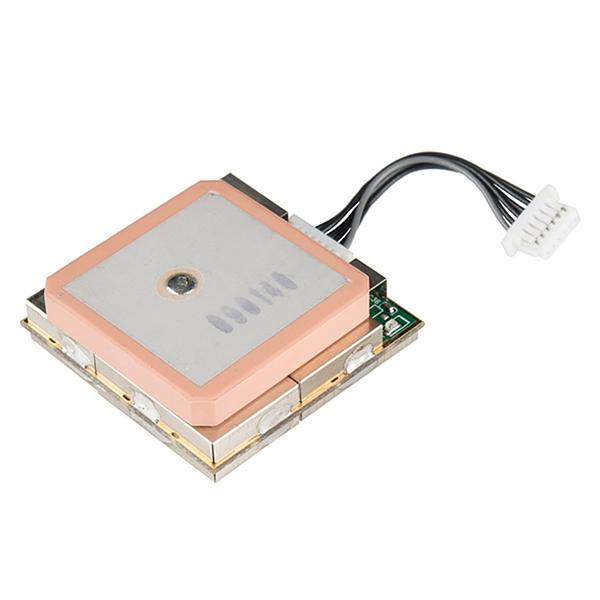

The EM-506 is a 48-channel GPS receiver module from USGlobalSat, powered by the SiRF Star IV chipset. It includes onboard voltage regulation, an LED status indicator, battery-backed RAM, and a built-in patch antenna, making it a complete ready-to-use GPS solution.

With SiRF CGEE (Client Generated Extended Ephemeris) technology, the module predicts satellite positions for up to 3 days and achieves start times under 15 seconds in most conditions without network assistance. Its high sensitivity makes it suitable for use in urban canyons and dense foliage environments.

Key Features

• 48-Channel Receiver – SiRF Star IV chipset for fast satellite acquisition
• High Sensitivity – −163 dBm tracking sensitivity
• 2.5 m Positional Accuracy – Reliable location data for most applications
• Fast Start Times – Hot start: 1 s; warm/cold start: 35 s (15 s with CGEE)
• Built-In Patch Antenna – No external antenna required
• Battery-Backed RAM – Retains satellite data for faster reacquisition
• LED Status Indicator – Visual fix status feedback
• Onboard Voltage Regulation – Accepts 4.5–6.5 V input

Specifications

• Chipset – SiRF Star IV
• Channels – 48
• Sensitivity – −163 dBm
• Positional Accuracy – 2.5 m
• Power – 45–55 mA at 4.5–6.5 V
• Dimensions – 30 × 30 × 10.7 mm
• Weight – 16 g (including cable)

Package Contents

• 1× EM-506 GPS receiver module
• 1× 6-pin interface cable

Resources

• EM-506 Datasheet (PDF)
