GoodFET v42 by Travis Goodspeed [v4.2]

$97.02

Part Number:  AF-1279
Brand:  Adafruit Australia

DescriptionThe GoodFET is an open-source JTAG adapter, loosely based upon the TI MSP430 FET UIF and EZ430U boards, as described in their documentation. It has expanded to be useful as a microcontroller multitool, with 'clients' for programming/debugging MSP430 JTAG, Nordic RF, Chipcon 8051/SPI, AVR, PIC, etc. A handy tool for advanced microcontroller work, and especially for MSP430 fans who want their own JTAG debugger for...
We can dispatch today: - units (delivered by -)
We can dispatch in - days: - units (delivered by -)

Description

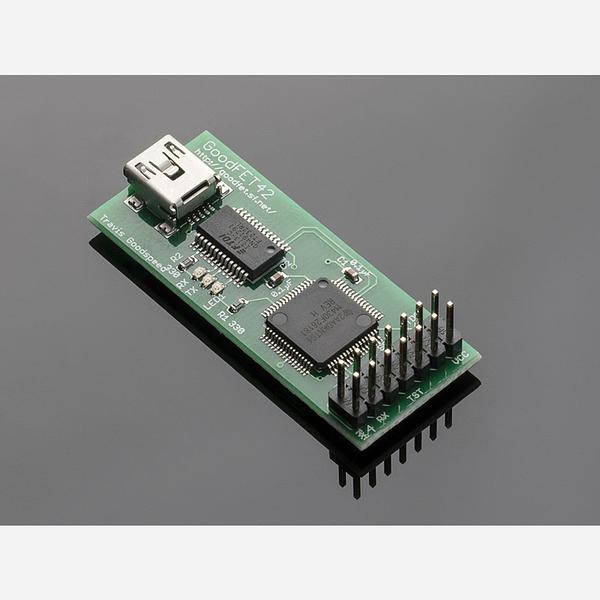

The GoodFET is an open-source JTAG adapter, loosely based upon the TI MSP430 FET UIF and EZ430U boards, as described in their documentation. It has expanded to be useful as a microcontroller multitool, with 'clients' for programming/debugging MSP430 JTAG, Nordic RF, Chipcon 8051/SPI, AVR, PIC, etc.

A handy tool for advanced microcontroller work, and especially for MSP430 fans who want their own JTAG debugger for everyday use. Comes as a fully assembled and tested board. You may also want to pick up some female/male or female/female jumper cables to connect from the 14 pin header to your dev board.

For a lot more information including all schematics, layouts and firmware, check out the goodfet theybsite

GoodFET v42 by Travis Goodspeed (3:40)

Technical Details

Dimensions: 48.15mm/1.9" long x 19.73mm/0.8" wide x 11.67mm/0.5" high (w/header pins)
