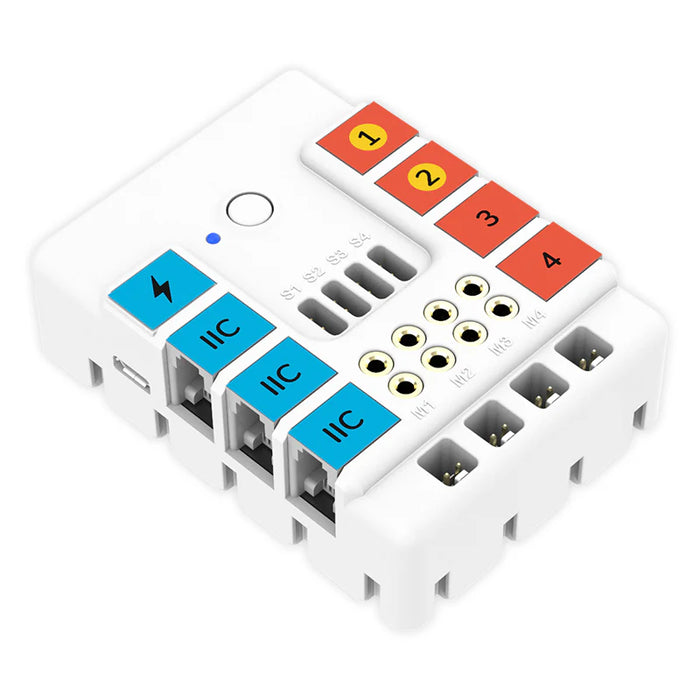

ELECFREAKS Nezha Breakout Board
The Nezha Breakout Board is a feature-packed expansion board for the micro:bit, designed with classroom use in mind. It integrates 4 servo drivers, 4 motor d...
Get notified when back in stock
The Nezha Breakout Board is a feature-packed expansion board for the micro:bit, designed with classroom use in mind. It integrates 4 servo drivers, 4 motor drivers, and 7 sensor ports — all using RJ11 connectors with foolproof anti-reversal design, so students can plug in confidently without damaging anything. The shell is Fischertechnik compatible, allowing electronic modules to combine with physical construction parts for creative builds.
Powered by a built-in 900mAh lithium battery, it charges via Micro-USB and works with MakeCode and Python programming environments.
Key Features
- 4× Servo Drivers – Control up to 4 servos directly from the board
- 4× Motor Drivers – Drive up to 4 DC motors
- 7× Sensor Ports – RJ11 connectors with anti-reversal plugging protection
- Fischertechnik Compatible – Shell interfaces with Fischertechnik structural parts
- Built-in Battery – 900mAh lithium; charges via Micro-USB at 1A
- Programming – MakeCode and Python (ecode) support
Specifications
- Battery Capacity – 900mAh
- Charging Port – Micro-USB
- Input Voltage – 5V
- Charging Current – 1A
- Compatible Board – micro:bit
Ideal For
- STEM classrooms building micro:bit robot projects
- Students combining micro:bit coding with physical construction
- Maker projects requiring multiple servos and motors from a single board
Package Contents
- 1× Nezha breakout board
Resources
Jargon buster
Plain-language definitions for the technical terms used above.
- breakout
- A breakout board carries a small or fine-pitched component and brings its connections out to standard, breadboard- and header-friendly pins. Describing a part as a breakout means it can be wired into a project without soldering directly to the component's tiny contacts.
- DC
- DC means direct current, where electricity flows in one constant direction, as supplied by batteries, USB ports and many plug-pack power supplies. When a product specifies DC, it runs from a DC supply rather than mains AC, so you need to provide the correct voltage and polarity.
- servo
- A servo is a motor with built-in position control, usually told to move to a specific angle by a control signal. It matters when you need repeatable movement, such as steering, arms, flaps, or linkages, rather than continuous spinning.
