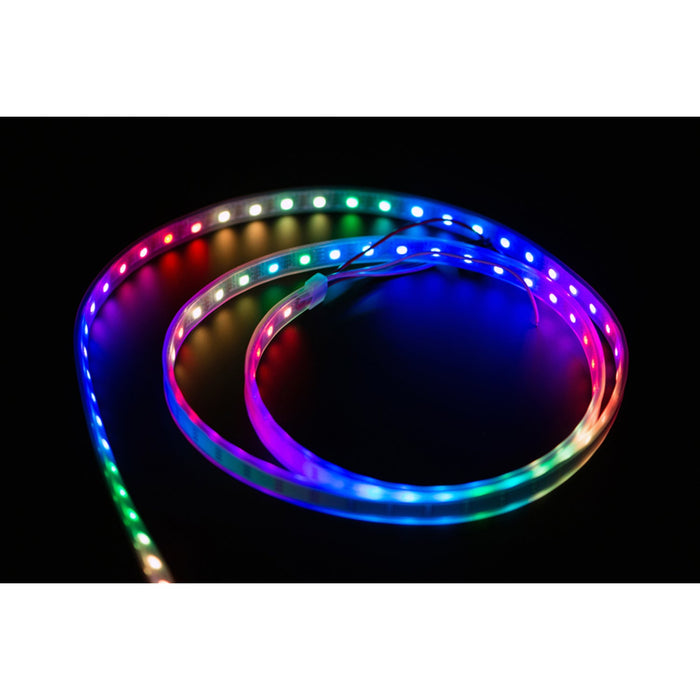

Digital RGB LED Weatherproof Strip 60 LED - (1m)
A 1-metre weatherproof digitally addressable RGB LED strip with 60 WS2812 LEDs. Each LED is individually controllable via a single data line, supporting 256 ...
Get notified when back in stock
A 1-metre weatherproof digitally addressable RGB LED strip with 60 WS2812 LEDs. Each LED is individually controllable via a single data line, supporting 256 brightness levels per channel and over 16 million colours. The integrated control circuit and RGB chip are packaged in standard 5050 components.
Built-in signal reshaping, electric reset, and power-loss reset circuits ensure reliable operation. The weatherproof design makes this strip suitable for both indoor and outdoor use. It operates at 5V (compatible with 3.3V at reduced brightness).
Key Features
- WS2812 Addressable LEDs – Individually control each of the 60 LEDs with a single data line
- Full Colour – 256 brightness levels per channel, 16.7 million colour combinations
- Weatherproof – Suitable for outdoor and indoor applications
- Signal Reshaping – Built-in circuit ensures consistent signal across cascaded strips
- 800Kbps Data Speed – Fast data transfer with scan frequency ≥400Hz
- Long Life – Over 50,000 hours rated lifespan
Specifications
- LED Type: WS2812 (5050 package)
- LED Count: 60 (60 per metre)
- Length: 1 metre
- Power Supply: 5V @ 1A minimum
- Compatible Voltage: 3.3–5V (brightness varies)
- Data Speed: 800Kbps
- Brightness Levels: 256 per channel
- Protection: Weatherproof
Ideal For
- Home and outdoor decorative lighting
- Interactive art installations
- Arduino, Raspberry Pi, and microcontroller projects
- Signage, displays, and architectural lighting
Package Contents
- 1× Digital RGB LED Weatherproof Strip (1m, 60 LEDs)
Resources
Jargon buster
Plain-language definitions for the technical terms used above.
- LED
- A light-emitting diode (LED) is a small electronic component that emits light when current flows through it in the correct direction. Because it only conducts one way, its polarity matters, and a through-hole LED must be soldered the correct way around to light up.
- microcontroller
- A microcontroller is a small computer on a single chip that runs a stored program and controls connected inputs and outputs such as buttons, sensors, displays and communication interfaces. In a device built around one, it is the part that executes the code and coordinates the device's behaviour.
- RGB
- Short for red, green and blue, the three primary colours of light that are mixed in varying amounts to make a wide range of colours. In electronics RGB can refer to an LED or pixel that blends these three colours, or to a colour signal or interface that carries separate red, green and blue channels.
