DC 5.5 x 2.1mm 1-to-3 Power Splitter Cable - 5 Pack
· MPN: FIT0885
This DC power splitter cable lets a single DC 5.5 x 2.1 mm power source feed three compatible devices, making it a handy option for tidy multi-device power s...
Get notified when back in stock
This DC power splitter cable lets a single DC 5.5 x 2.1 mm power source feed three compatible devices, making it a handy option for tidy multi-device power setups.
It uses a tinned oxygen-free copper wire core for stable transmission and to help suppress external signal interference. The PVC outer sheath is insulated, anti-aging, corrosion-resistant and flame-retardant, while the galvanised plug is designed to resist wear and oxidation through repeated use.

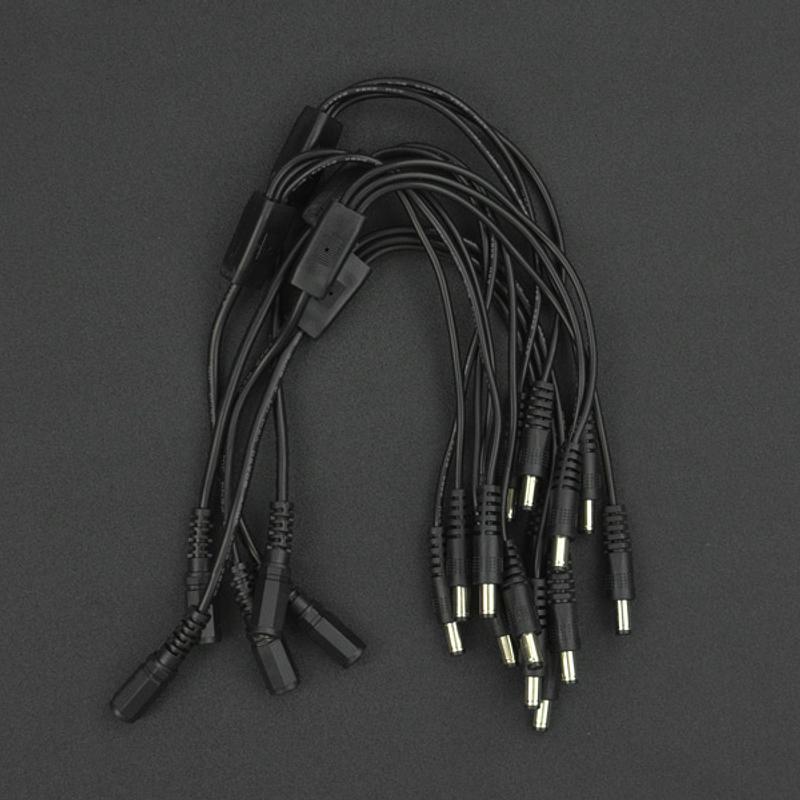

Suitable applications include surveillance cameras, routers, set-top boxes, switches, power adapters and other devices using DC5.5*2.1 connectors. This pack includes five DC5.5*2.1 1 female to 3 male power cables.
Specifications:
- Voltage: 24V
- Current (main line): 5A
- Current (branch line): 1.6A
- Main Line: 0.15m
- Branch Line: 0.2m
- Main Line: 2464 20 awg 28/0.15 OD: 4.3mm
- Branch Line: 2464 24 awg 11/0.15 OD: 3.0mm

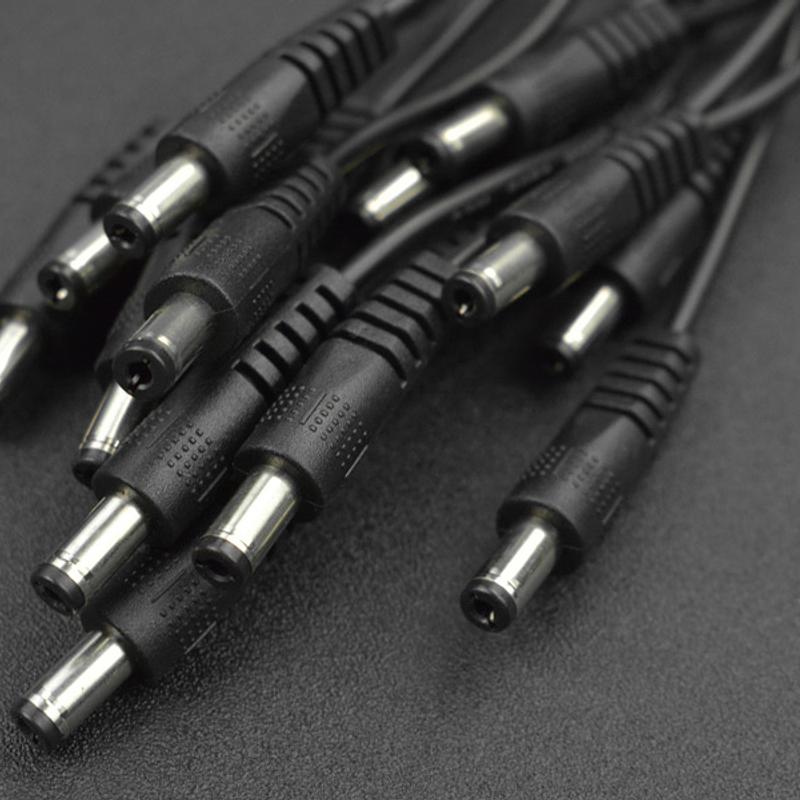

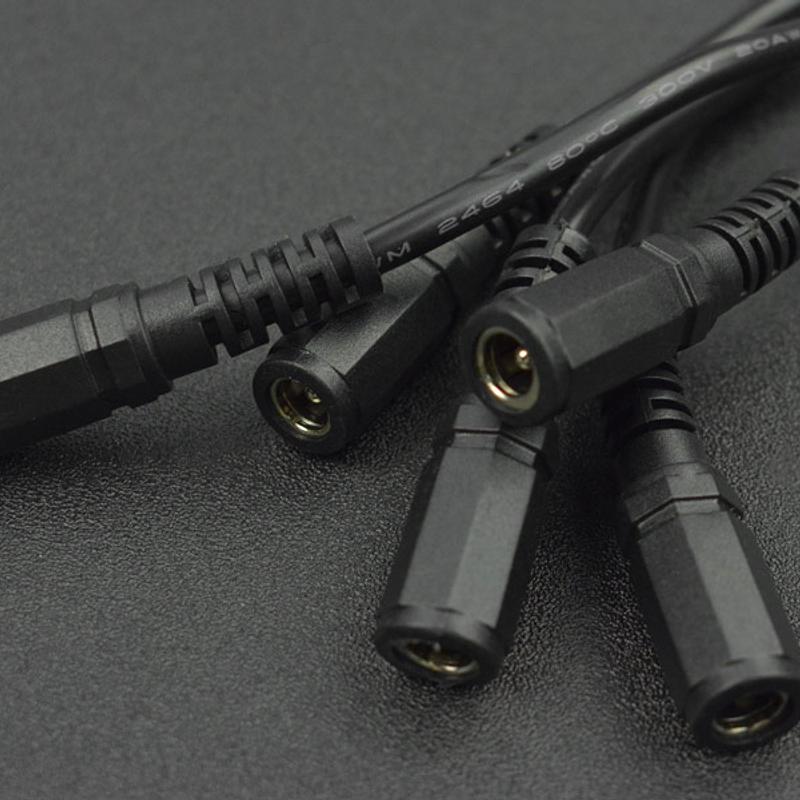

- Plug: DC5.5*2.1 one female to three male connectors
- Wire Color: Black
- Wire Material: PVC
Jargon buster
Plain-language definitions for the technical terms used above.
- AWG
- American Wire Gauge is a numbering system for wire thickness, where a lower number means a thicker wire. The AWG rating matters because thicker wire can usually carry more current with less voltage drop and heating.
- DC
- DC means direct current, where electricity flows in one constant direction, as supplied by batteries, USB ports and many plug-pack power supplies. When a product specifies DC, it runs from a DC supply rather than mains AC, so you need to provide the correct voltage and polarity.
