Surface Mount Magnetic Buzzer Transducer
·
This compact magnetic buzzer transducer is designed for externally driven audio output in space-constrained electronics projects. It takes a zero-peak drive ...
Get notified when back in stock

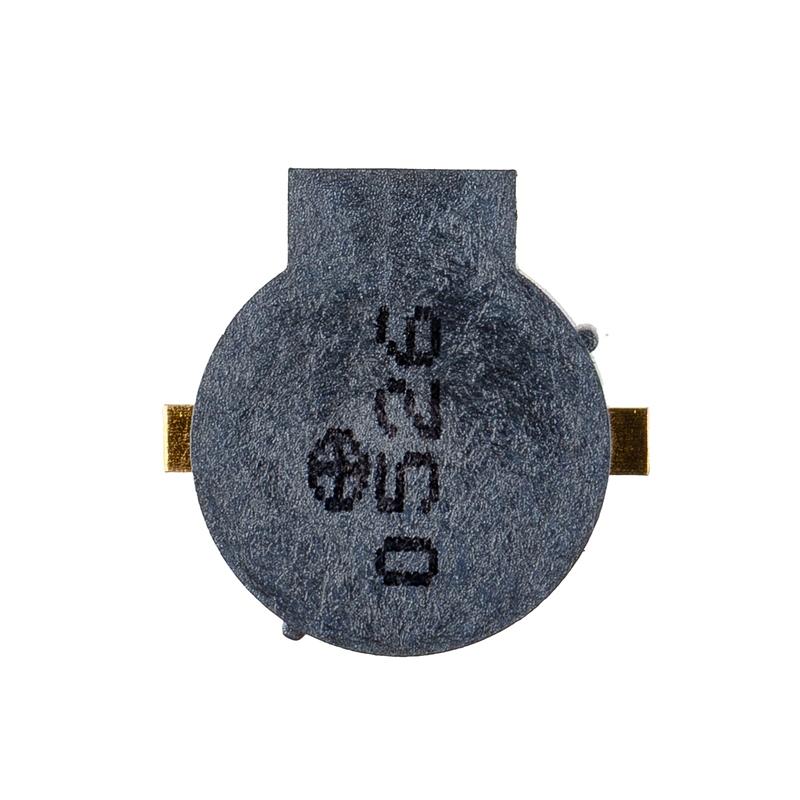

This compact magnetic buzzer transducer is designed for externally driven audio output in space-constrained electronics projects. It takes a zero-peak drive signal and produces a single tone at 2.73kHz.

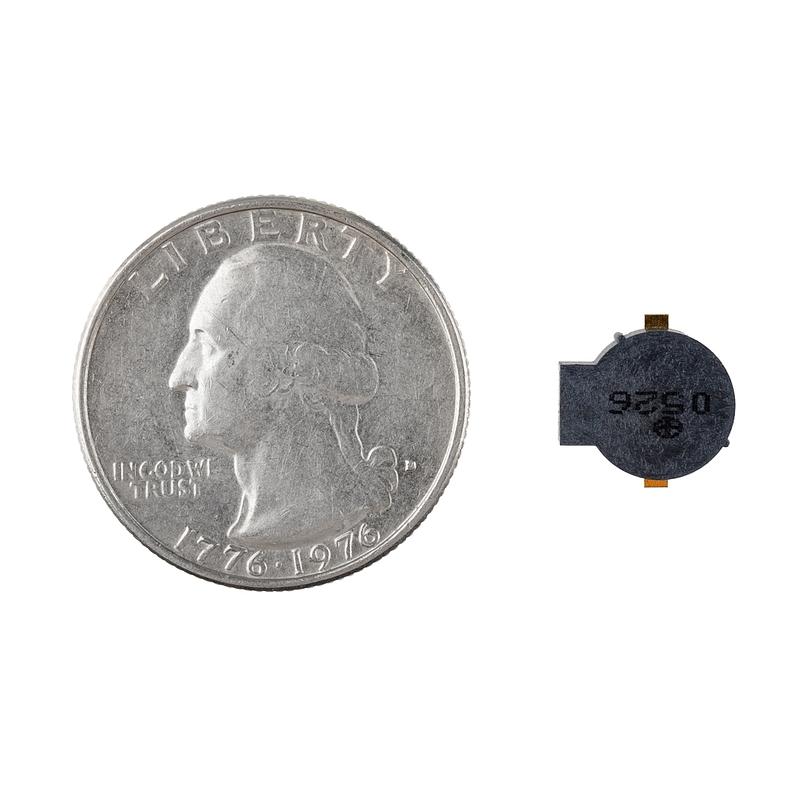

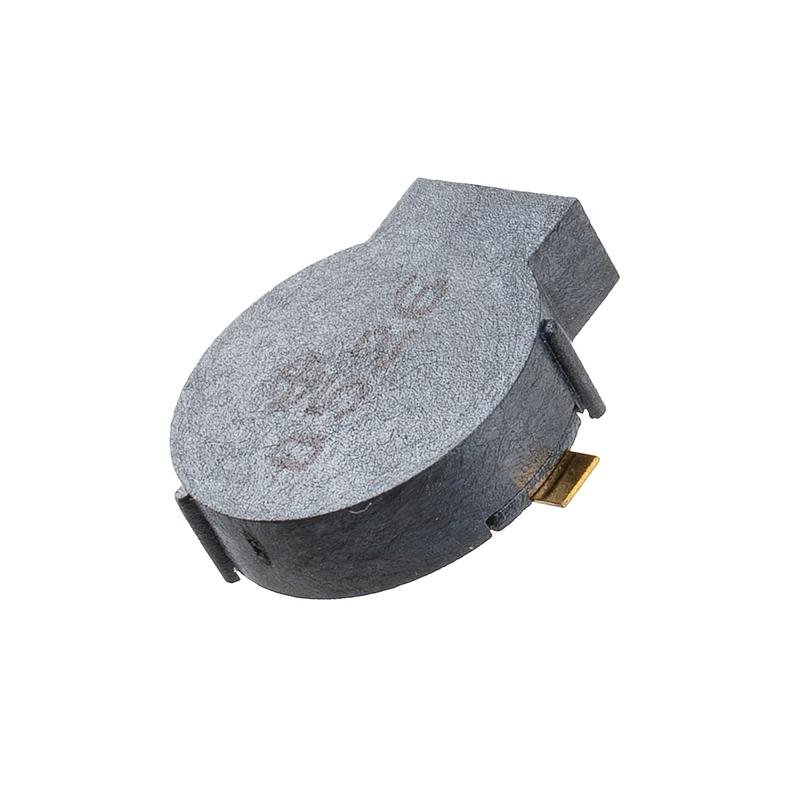

The part is intended for surface mount assembly, with solder pad termination and a side port. Its small 9.00mm diameter footprint makes it useful for compact boards that need simple audible feedback, alerts or beeps.
Specifications:
- Driver Circuitry: Transducer, Externally Driven
- Input Type: Zero-Peak Signal
- Voltage - Rated: 3.6V
- Voltage - Range: 2.5 ~ 4.5V
- Frequency: 2.73kHz
- Technology: Magnetic
- Operating Mode: Single Tone
- Sound Pressure Level (SPL): 83dB @ 3.6V, 10cm
- Current - Supply: 110mA
- Port Location: Side
- Operating Temperature: -40°C ~ 85°C
- Mounting Type: Surface Mount

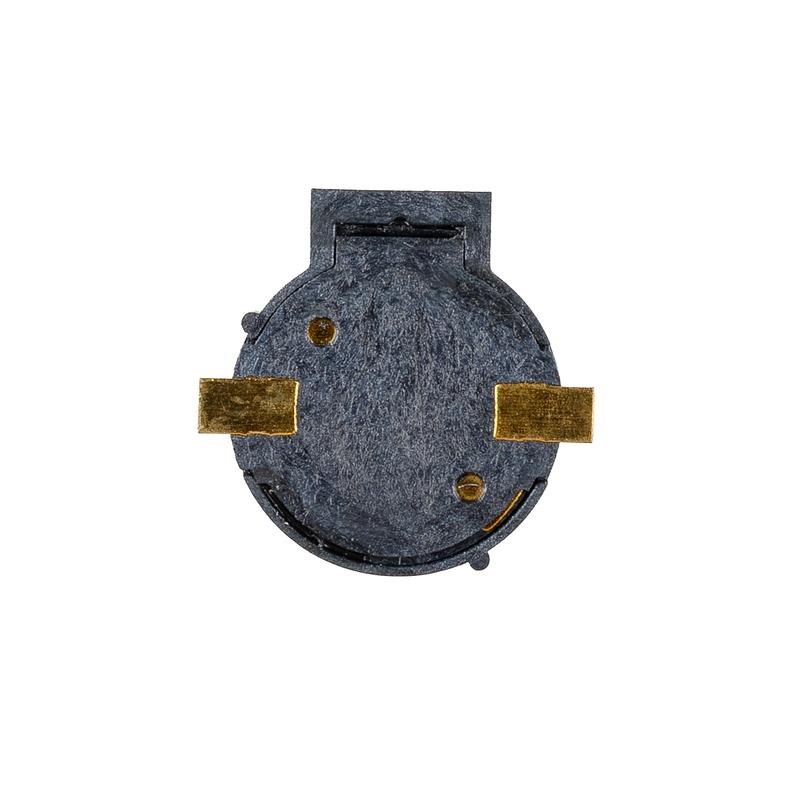

- Termination: Solder Pads
- Size / Dimension: 0.354" Diameter (9.00mm)
- Height - Seated (Max): 0.106" (2.70mm)
