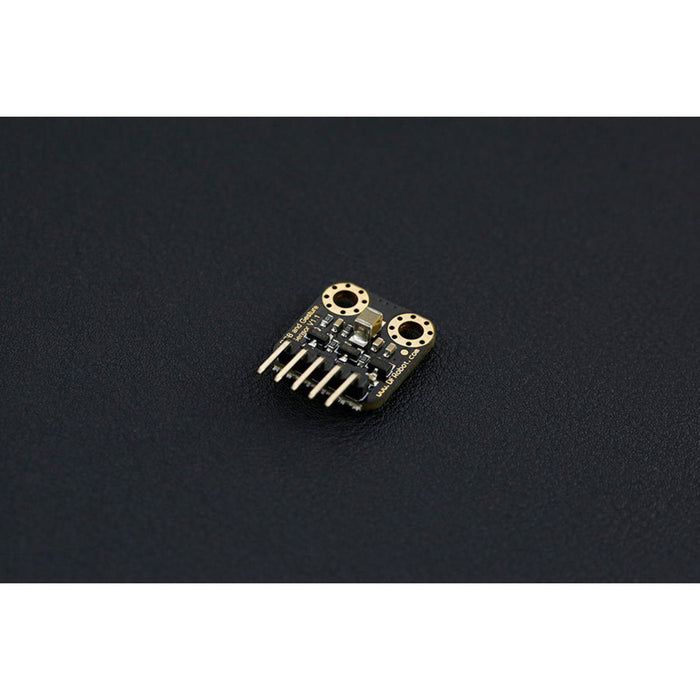

Arduino RGB Color and Gesture Sensor
27 units will be available shortly.
INTRODUCTION
Wave your hands and light turns on. Can you believe this magic turns into reality? This interactive sensor designed by DFRobot offers touchless gesture sensing, which means you can issue orders simply with a swipe of your hand! Furthermore, it supports RGB color detecting and ambient light measuring. With this arduino RGB Color and Gesture Sensor, traditional switch can be replaced. This gesture sensor has a high quality and accuracy: Its gesture sensor module uses the APDS-9960 chip (a single 8 pin package digital RGB, ambient light, short and gesture sensor device); infrared LED helps measuring the short-range and gestures. Moreover, the arduino gesture sensor is able to work under low- light conditions thanks to its RGB and environmental light perception measurement. In addition, integrated UV-IR shading filter can detect ambient light and color temperature.
SPECIFICATION
- Operating Voltage: 3.3-5V
- Interface:
- I2C interface x1
- Interrupt pin x1
- Detecting range: 100mm(3.94")
- Module size: 18.3x16.4mm(0.72x0.65")
DOCUMENTS
SHIPPING LIST
- RGB and Gesture Sensor x1
- PH2.54 5-pin header x1
