Alchitry V2 to V1 Adapter

Name: Alchitry V2 to V1 Adapter
Brand: SparkFun
SKU: SF-PRT-27882
Price: 34.4 AUD
Availability: InStock

· MPN: PRT-27882

Headers & Connectors

$34.40 |

In stock at supplier

No reviews yet

This adapter lets you use new Alchitry V2 boards with older Alchitry V1 add-on boards. It is designed as a bridge between the updated V2 connector layout and...

Add to Wishlist

Compare

Estimated Delivery

Arrives

Disclaimer

View Markdown

Secure checkout

This adapter lets you use new Alchitry V2 boards with older Alchitry V1 add-on boards. It is designed as a bridge between the updated V2 connector layout and the original V1-style add-on ecosystem.

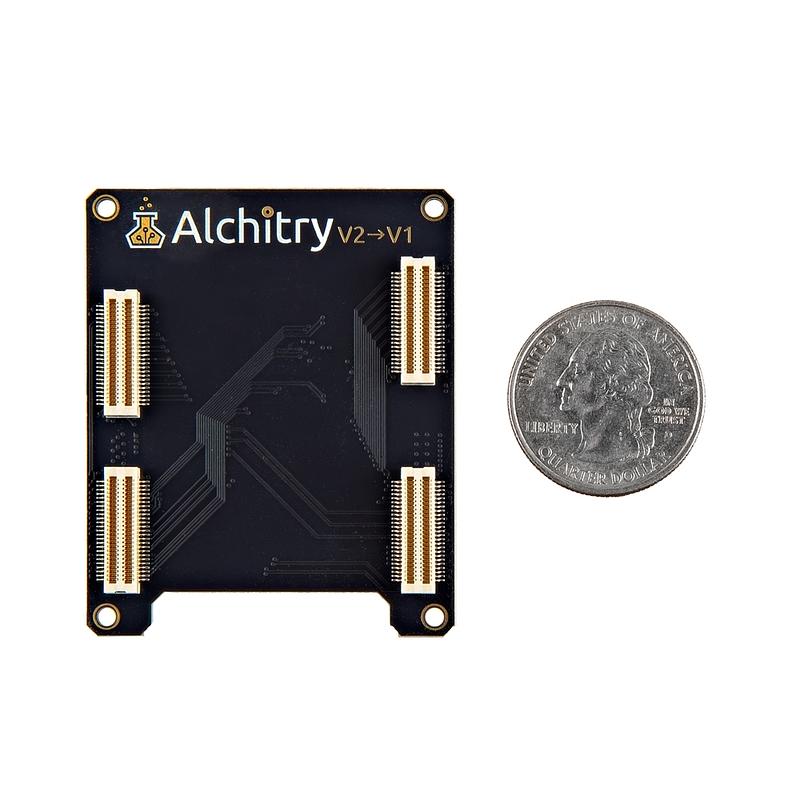

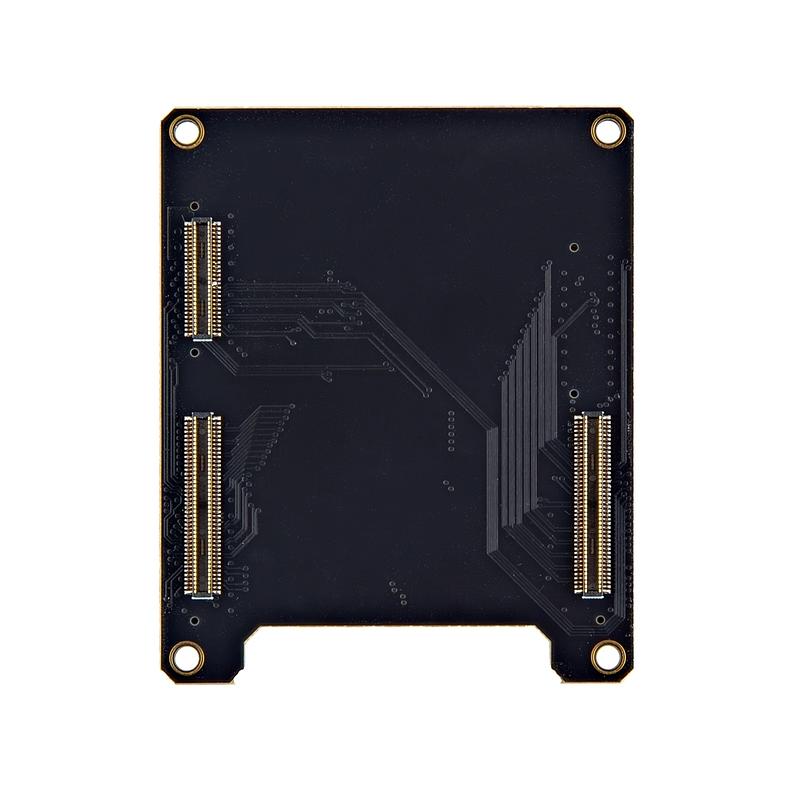

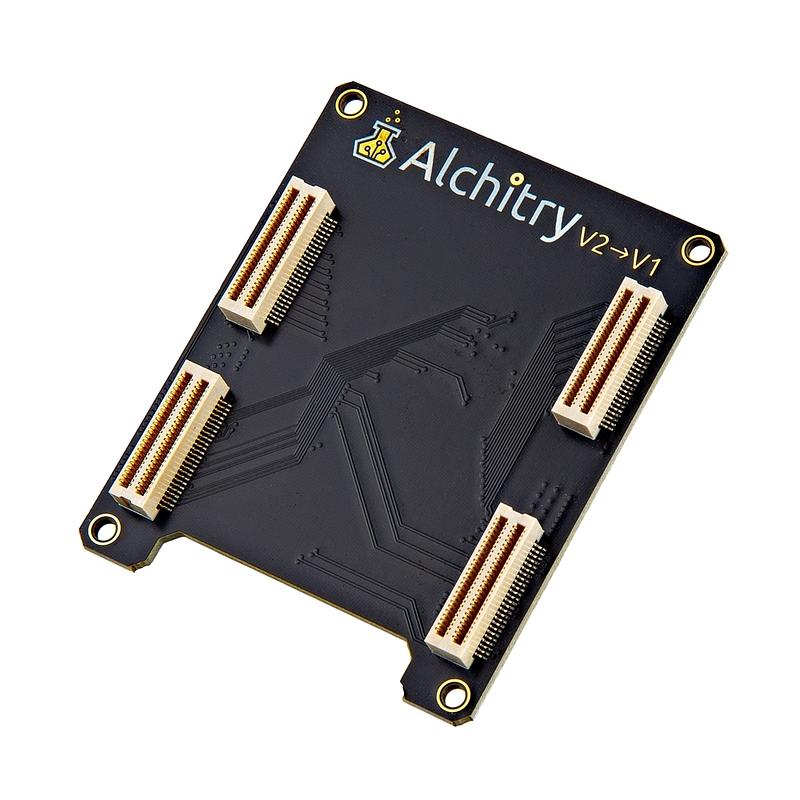

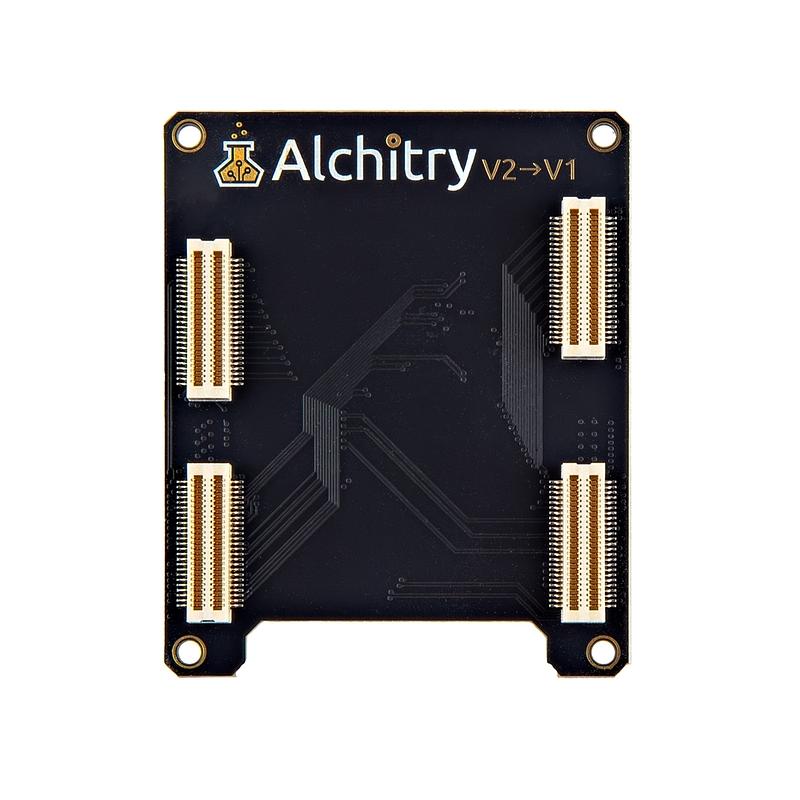

The board has the new style connectors on the bottom for the V2 board, and the old style connectors on the top for V1 add-on boards. A schematic is provided in the documentation for checking connections before you build around it.

Please note that this adapter is not a 100% V1 compatibility layer. The V2 headers no longer expose some signals, the actual pinout is different, and the dual-voltage pins have changed voltage.

Specifications:

Bottom connectors: New style connectors
Top connectors: Old style connectors
Compatibility: Use new Alchitry V2 boards with old V1 add-on boards
V1 compatibility: Not 100% compatible with V1
V2 header signal availability: 100MHz clock signal is no longer exposed
V2 header signal availability: UART Tx and Rx signals are no longer exposed
Pinout: The actual pinout is different
Au global clock inputs: Route to the same spots
Analogue pins: Route to the same spots
Dual voltage pins: Route to the same spots
Dual voltage pin level: Now 2.5V instead of 1.8V
Documentation: Schematic
