Adafruit RS232 Full Breakout with DE9-M
· MPN: ADA6253
All Products
Breakouts
New Arrivals
Adafruit
Brands and Manufacturers
ICs and Microchips
Prototyping & Wiring
$13.65
|
In stock at supplier
The Adafruit RS-232 Full Breakout with DE9-M lets you interface any 3.3 V microcontroller or single-board computer with RS-232 devices using all 8 data/flow-...
Get notified when back in stock
Estimated Delivery
Arrives
Disclaimer
Secure checkout

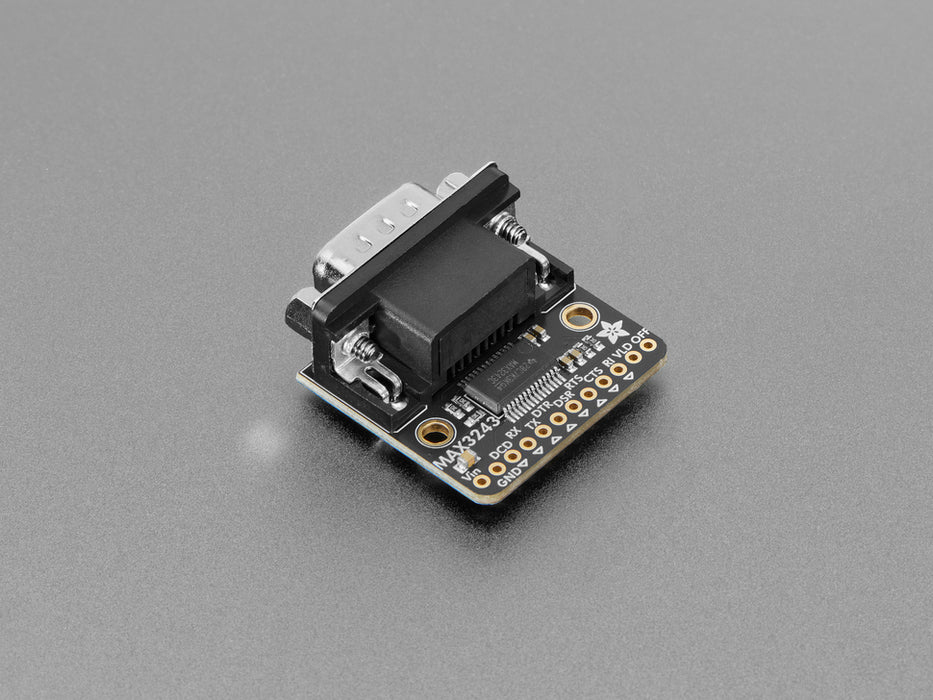

The Adafruit RS-232 Full Breakout with DE9-M lets you interface any 3.3 V microcontroller or single-board computer with RS-232 devices using all 8 data/flow-control signals. Built around the trusted TI MAX3243, it generates the required positive and negative voltages internally and provides 5 input and 3 output channels of level shifting at up to 250 Kbps.

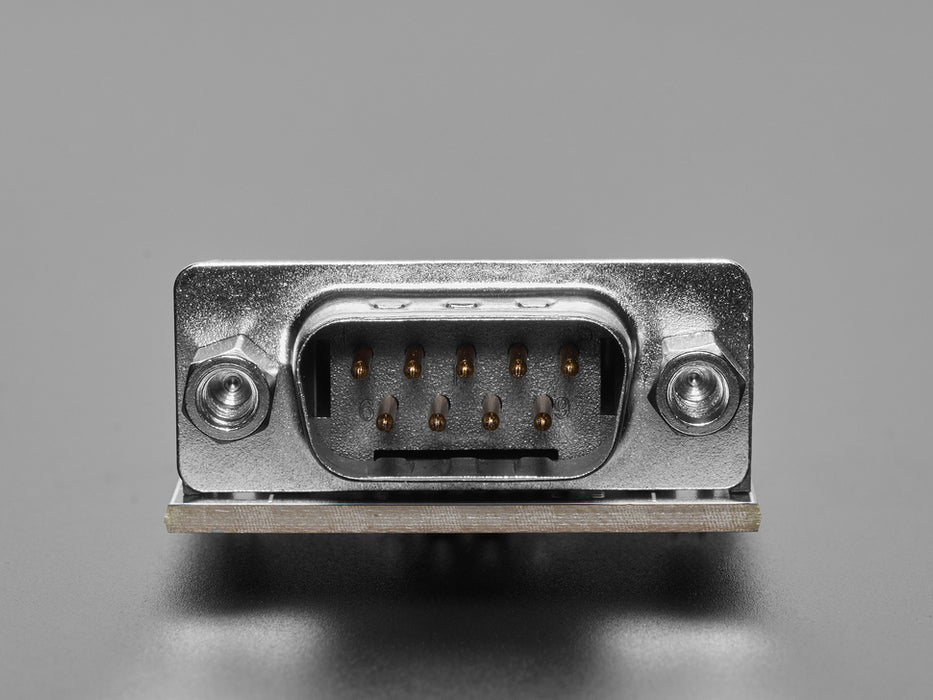

This version features a DE9-M (male pin) connector — check the product photos to confirm it matches the device or cable you want to connect to.
Key Features

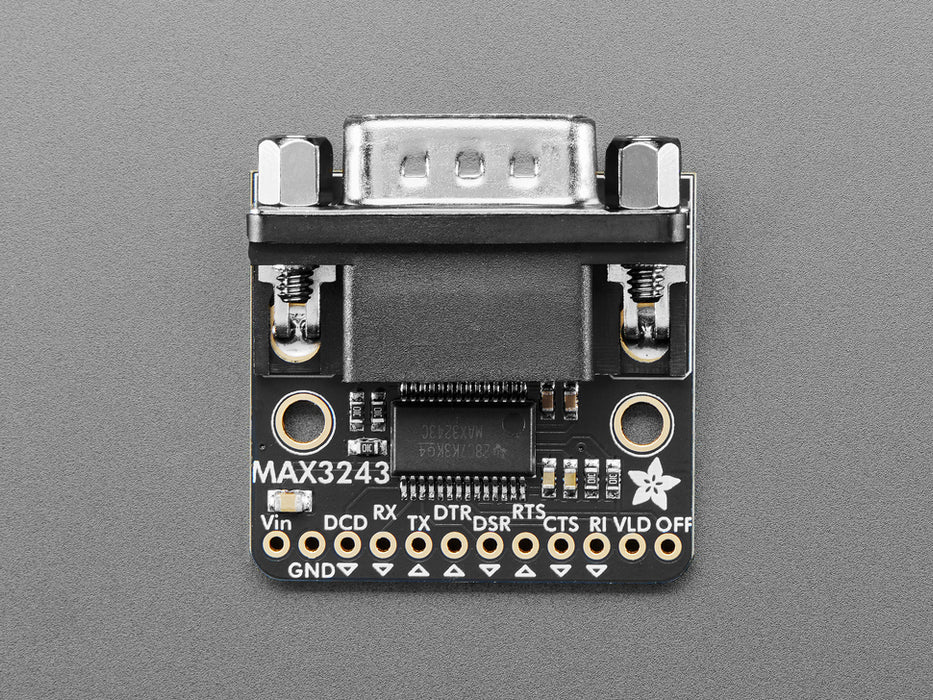

- MAX3243 Level Shifter – 8 channels (5 input, 3 output) for full RS-232 pinout including RTS, CTS, DTR, DSR, DCD, and RI

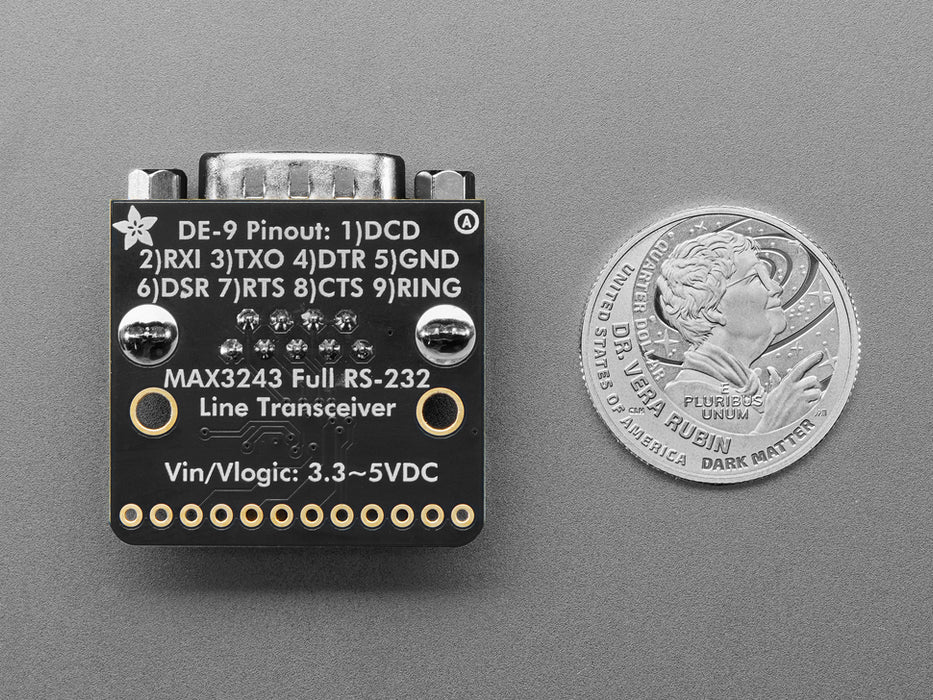

- DE9-M Male Connector – 9-pin D-Sub male connector for direct plug-in to RS-232 devices or cables
- 3.3 V Power & Logic – Runs on 3.3 V, compatible with modern microcontrollers
- Up to 250 Kbps – Suitable for most RS-232 communication needs
- Valid Signal Output – Logic-level output goes high when RS-232 signal voltages are detected (connection indicator)
- Off/Tri-State Pin – Set high to tri-state all pins for power reduction
- Fully Assembled – UART side for low-voltage logic, DE9-M side for RS-232; headers included for breadboard use
Also Consider
- RS-232 Full Pinout Level-Shifter Breakout (DE9-F) – Same board with a female DE-9 connector
Ideal For
- Interfacing with industrial and telco equipment
- Retro computing and legacy device communication
- Barcode scanners, modems, and serial terminals
- Any project requiring full RS-232 flow control signals
Package Contents

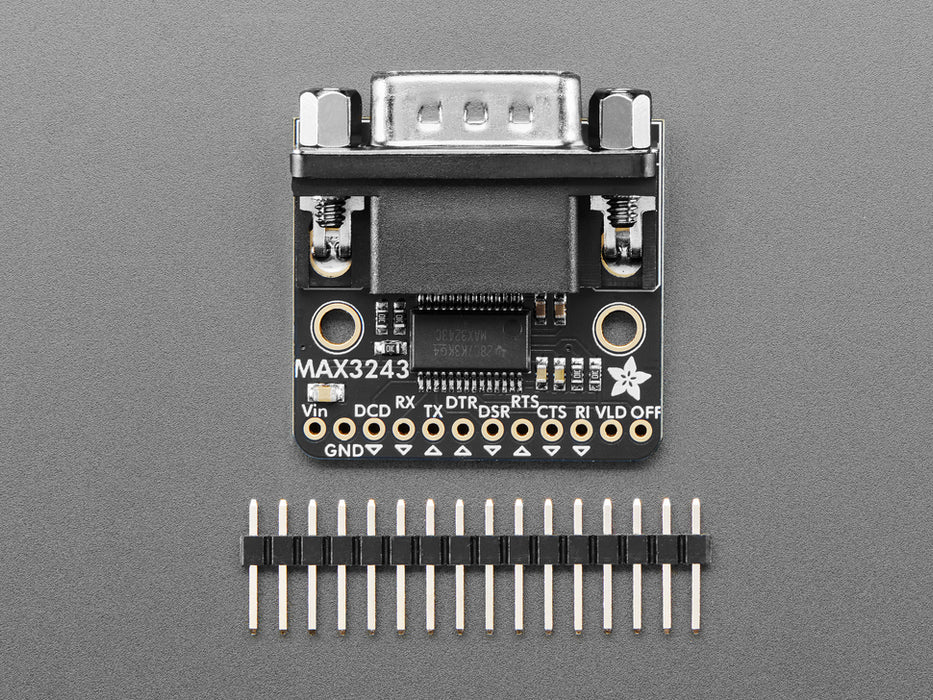

- 1× Adafruit RS-232 Full Breakout with DE9-M (fully assembled)
- 1× Header strip (soldering required for breadboard use)
Jargon buster
Plain-language definitions for the technical terms used above.
- breakout
- A breakout board carries a small or fine-pitched component and brings its connections out to standard, breadboard- and header-friendly pins. Describing a part as a breakout means it can be wired into a project without soldering directly to the component's tiny contacts.
- CTS
- CTS stands for Clear To Send, a serial flow-control signal that tells the other device it may transmit. It matters for reliable high-speed serial communication where buffers could otherwise overflow.
- Headers
- Rows of connector contacts on a fixed pitch (commonly 2.54 mm) used to link a board to a breadboard, jumper wires, or another board. They come as male pin headers and female socket headers; when a module ships with pre-soldered headers it can be used straight away, whereas bare pads require soldering the pins yourself.
- microcontroller
- A microcontroller is a small computer on a single chip that runs a stored program and controls connected inputs and outputs such as buttons, sensors, displays and communication interfaces. In a device built around one, it is the part that executes the code and coordinates the device's behaviour.
- RS-232
- RS-232 is an older serial communication standard that uses higher, inverted signal voltages (typically around plus or minus 3 to 15 volts) rather than the low logic levels of modern microcontroller pins. When connecting RS-232 equipment to a microcontroller, you usually need an RS-232 transceiver or level converter rather than wiring it directly, or you risk damaging the pins.
- RTS
- RTS stands for Request To Send, a serial flow-control signal used to manage when a device is ready to receive data. It matters when moving fast serial streams because flow control can help prevent lost data.
- single-board computer
- A complete computer built onto one circuit board, usually including the processor, memory, ports, and connectors. This matters because accessories like heatsinks must match the board’s layout and mounting holes to fit properly.
- UART
- UART is a simple asynchronous serial interface that sends data over separate transmit and receive wires, usually labelled TX and RX, with both ends set to the same baud rate. It is a common way for microcontrollers and other serial devices to exchange data.
