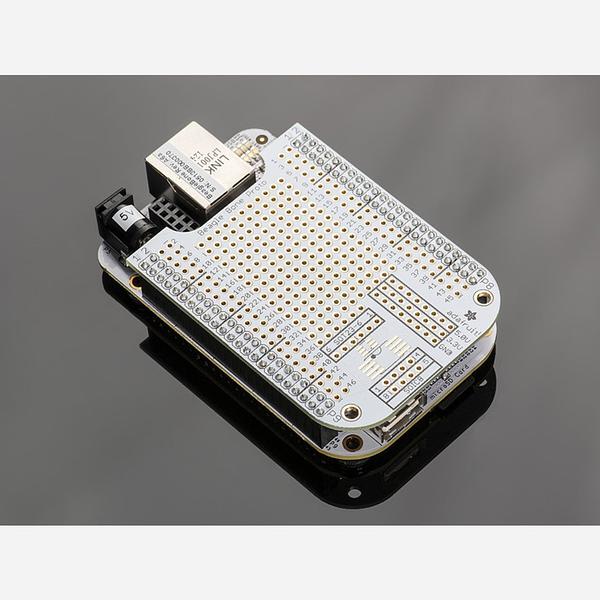

Adafruit Proto Cape Kit for Beagle Bone & Beagle Bone Black

$15.09

Part Number:  AF-572
Brand:  Adafruit Australia

DescriptionAdd some circuitry to your Beagle Bone or Beagle Bone Black with Adafruit's lovely Proto Cape. If you have a 'Bone you need one of these! This PCB fits neatly on top of a Beagle Bone, without getting in the way of the Ethernet jack, and provides a breakout to both 46 pin headers - with individual numbering to keep them straight. Adafruit also threw...
We can dispatch today: - units (delivered by -)
We can dispatch in - days: - units (delivered by -)

Description

Add some circuitry to your Beagle Bone or Beagle Bone Black with Adafruit's lovely Proto Cape. If you have a 'Bone you need one of these! This PCB fits neatly on top of a Beagle Bone, without getting in the way of the Ethernet jack, and provides a breakout to both 46 pin headers - with individual numbering to keep them straight. Adafruit also threw down some strips to access the 5V and 3V power supplies as theyll as two SMT breakouts, one for SOIC-8's and one for SOT-23's.

Kit comes with a double-sided FR4 PCB and 3 sticks of header. You'll need to place the header into the Beagle Bone and then solder the Proto Cape PCB in place, but its very easy and should take only 10 minutes max even for beginners. Beagle Bone is not included! Adafruit do have 'Bones in the shop available for purchase separately.
