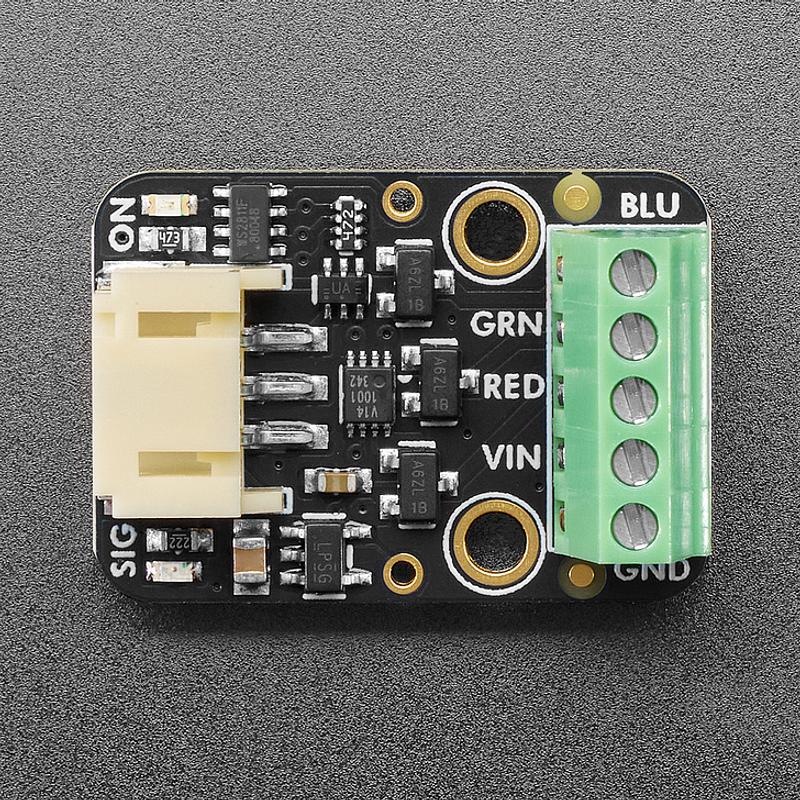

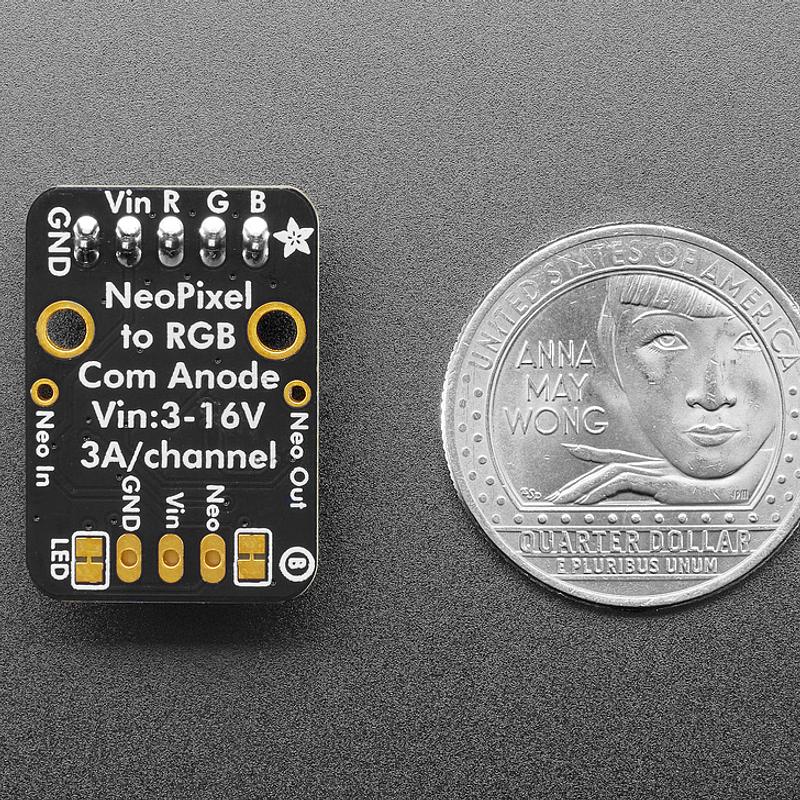

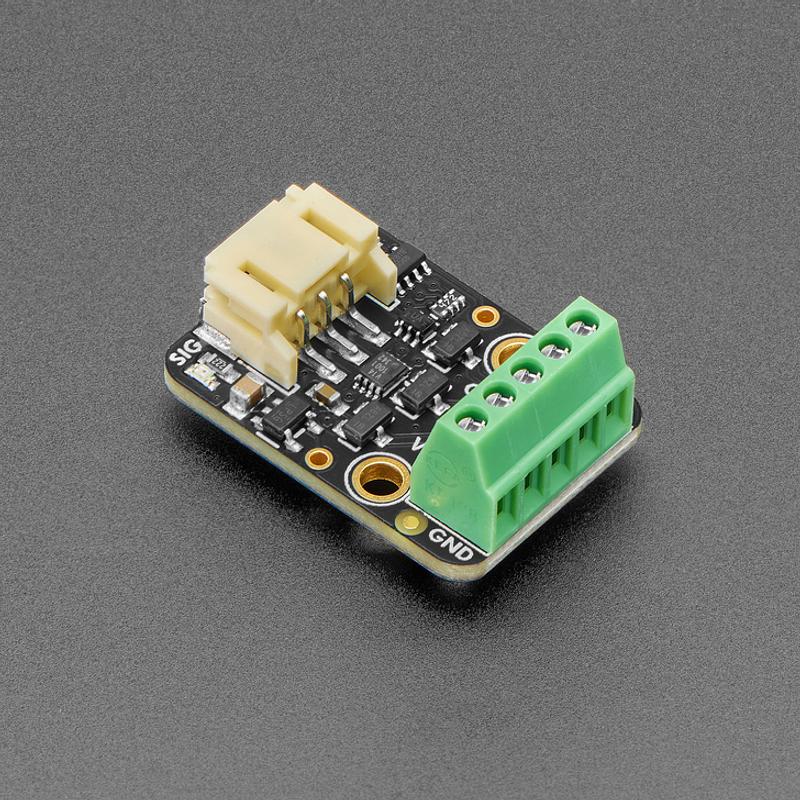

NeoRGB STEMMA NeoPixel to RGB PWM LED & Strip Driver

Jargon buster

Plain-language definitions for the technical terms used above.

AO3406

A small N-channel MOSFET transistor used as an electronic switch for controlling higher-current loads. Its use matters because the microcontroller signal does not power the LED strip directly; the MOSFETs switch the larger LED current safely.

common-anode

A wiring style for multi-colour LEDs where the positive side is shared and each colour channel is controlled on the negative side. This matters because common-anode and common-cathode LED strips are not interchangeable without a suitable driver.

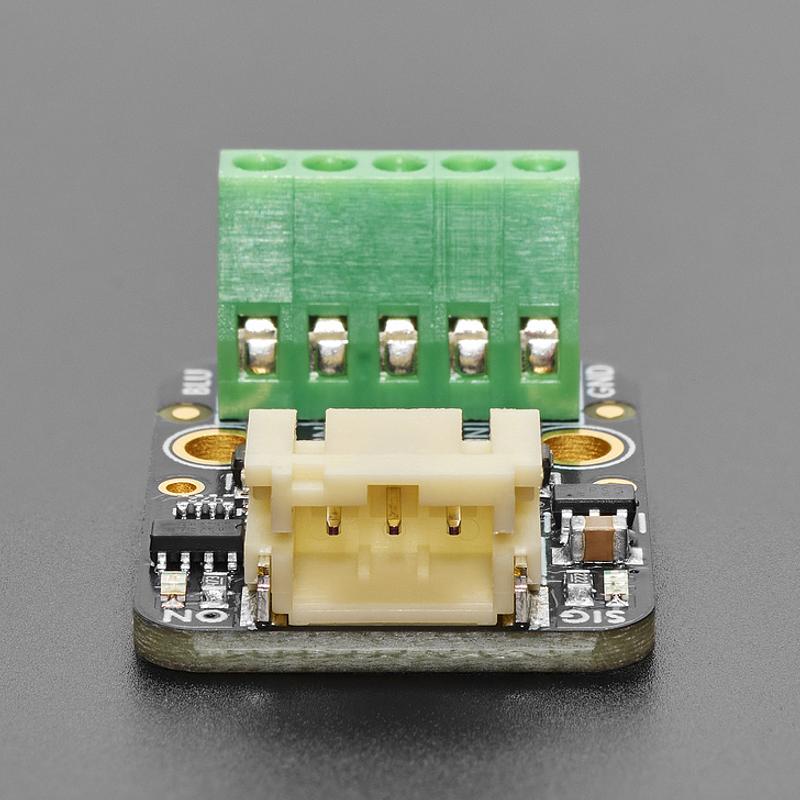

JST PH

A small keyed plug-and-socket connector with 2 mm pin spacing, often used for low-power electronics connections. You need the correct JST PH cable, and its current rating limits how much power should be passed through it.

LED

A light-emitting diode is a small electronic component that lights up when current flows through it in the correct direction. In this kit, LEDs create the flashing effect, so polarity and correct soldering matter for the project to work.

NeoPixel

A type of addressable LED system where colour data is sent along a single digital data line from one LED or controller to the next. Compatibility matters because the timing and signal format must match for the lights or driver board to respond correctly.

pH

A measure of how acidic or alkaline a liquid is, on a scale where 7 is neutral. For a water monitoring kit, pH tells you about water chemistry and whether the included probe matches the range and accuracy your project needs.

PWM

Pulse Width Modulation is a way for a digital pin to simulate variable output power by switching on and off very quickly. It matters for controlling things like LED brightness, motor speed, or servo-style signals from a microcontroller pin.

RGB

Short for red, green and blue, usually referring to an LED that can mix those three colours. It matters because controlling an RGB LED teaches how separate outputs combine to create different colours.

STEMMA

A plug-and-cable connection system used on some maker electronics boards to make wiring simpler. If a product uses STEMMA, you need the matching cable or connector type to plug it in without soldering.

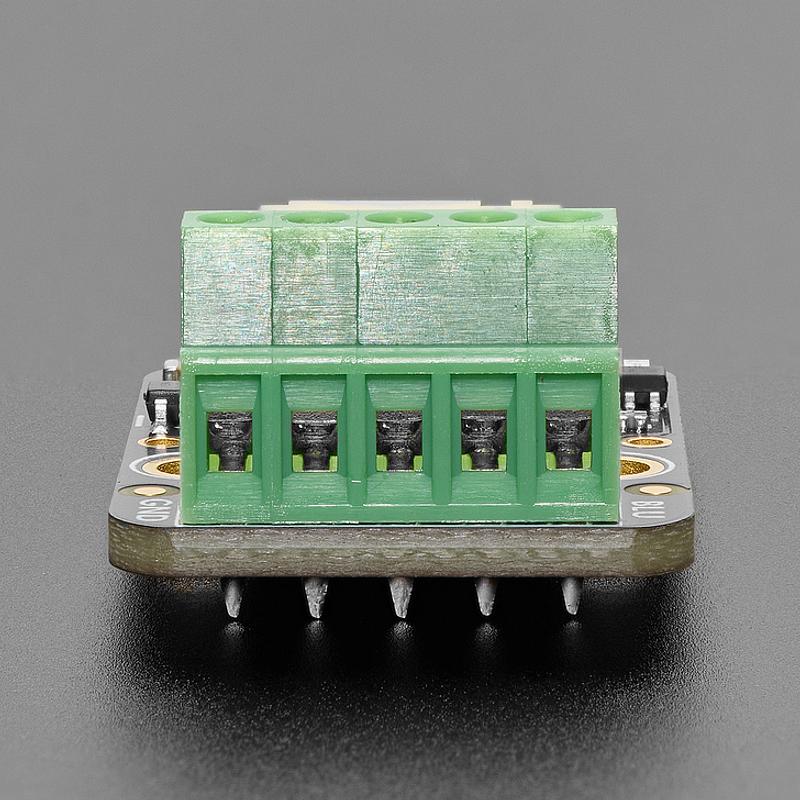

Terminal block

A connector used to join wires together in a neat, removable, or serviceable way. For this product, it helps split one power input into several outputs without soldering.

WS2811F

A controller chip used to receive NeoPixel-style LED data and turn it into three output control channels. In this product it determines that the board can control three channels, such as red, green, and blue, but not four-channel RGBW strips.
