Adafruit
I2C to 8-Channel Solenoid Driver
· MPN: ADA6318

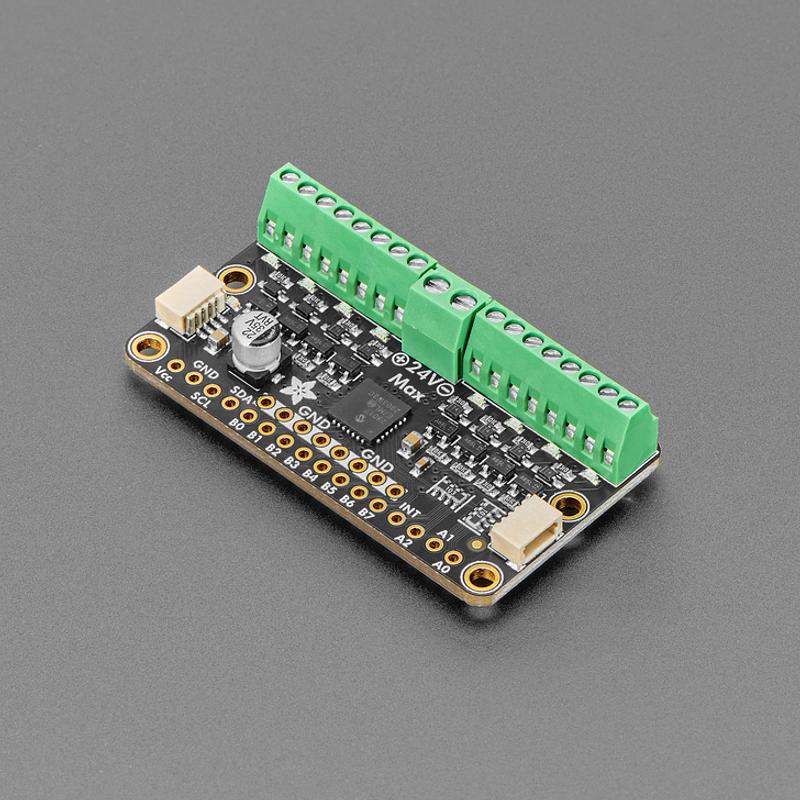

This driver board makes it much easier to control multiple solenoids from a microcontroller over I2C. It uses an MCP23017 GPIO expander so you do not need to...
This driver board makes it much easier to control multiple solenoids from a microcontroller over I2C. It uses an MCP23017 GPIO expander so you do not need to dedicate lots of pins just to switch a bank of clicky, inductive loads.

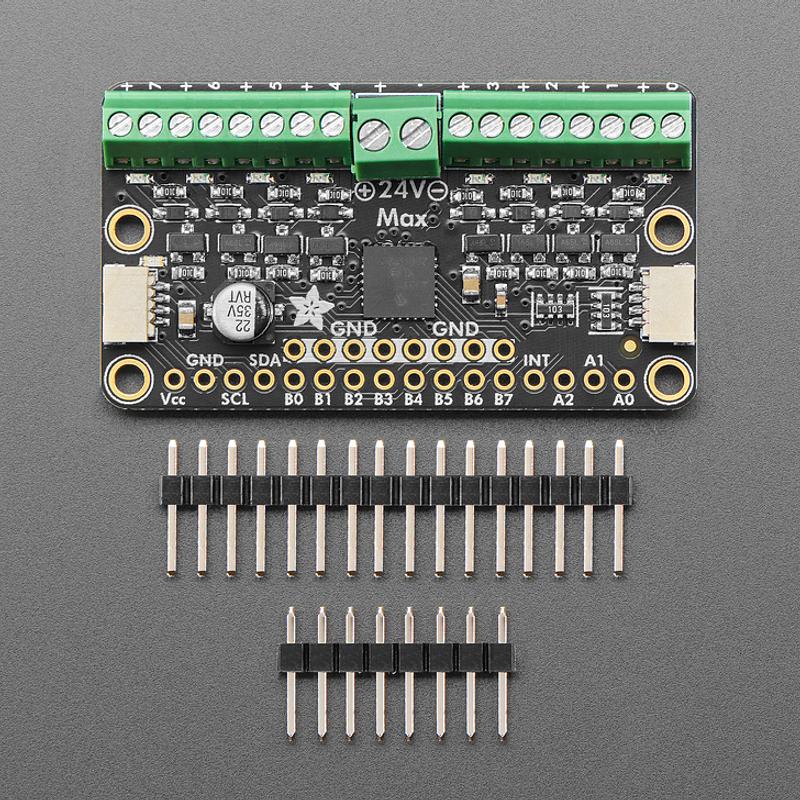

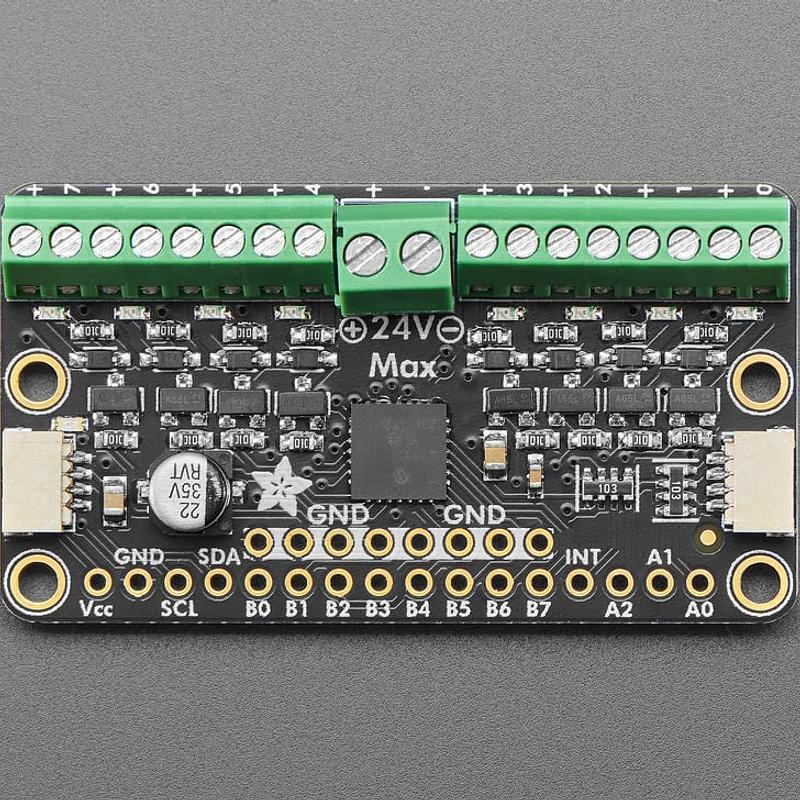

Solenoid power connects through the centre terminal blocks, with each solenoid wired to the remaining terminal blocks. Each channel has its own AO3406 N-Channel MOSFET, flyback diode for inductive kick-back protection, and a red indicator LED that lights when the transistor is on.
The MCP23017 also has its B port broken out for general-purpose I/O such as LED driving or button inputs. Three address pins can be jumpered so up to 8 boards can share the same I2C bus for larger builds.

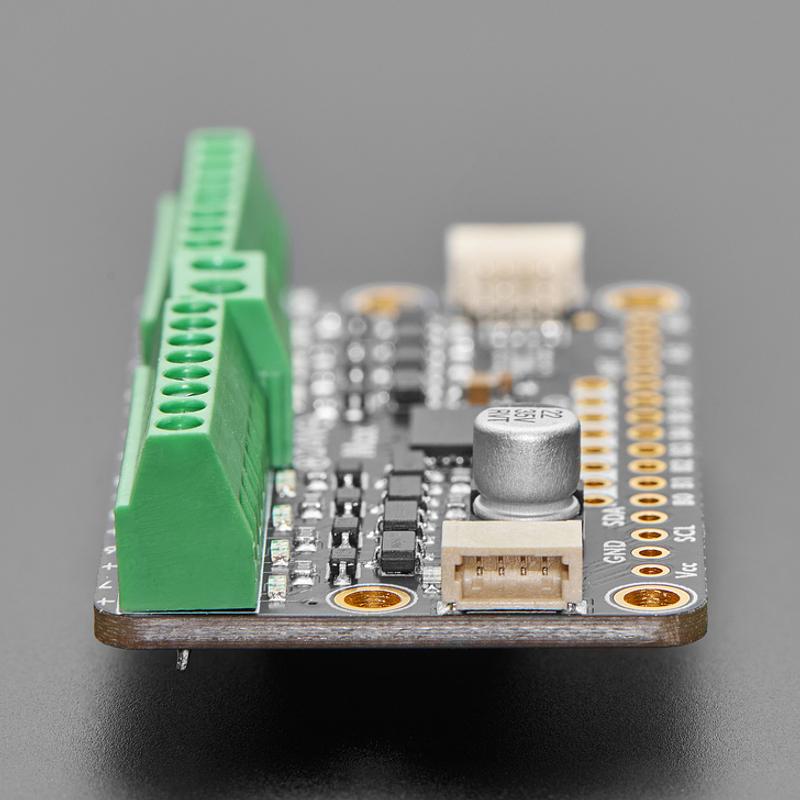

It works with 3V or 5V power and logic, making it suitable for boards ranging from Arduino-compatible Metro 328 projects to Raspberry Pi setups. STEMMA QT / Qwiic compatible JST SH connectors make I2C wiring simple and help share the bus with other STEMMA QT, Qwiic, Grove or compatible devices. A QT cable is not included.
Specifications:
- GPIO expander: MCP23017
- Solenoid channels: 8
- Solenoid power supply: 3V to 24V DC maximum
- Channel MOSFET: AO3406 N-Channel MOSFET
- MOSFET Vds rating: 30Vds
- MOSFET peak current: 3.6A peak
- MOSFET RdsOn: 70mΩ RdsOn
- MCP23017 total IO pins: 16 total IO pins

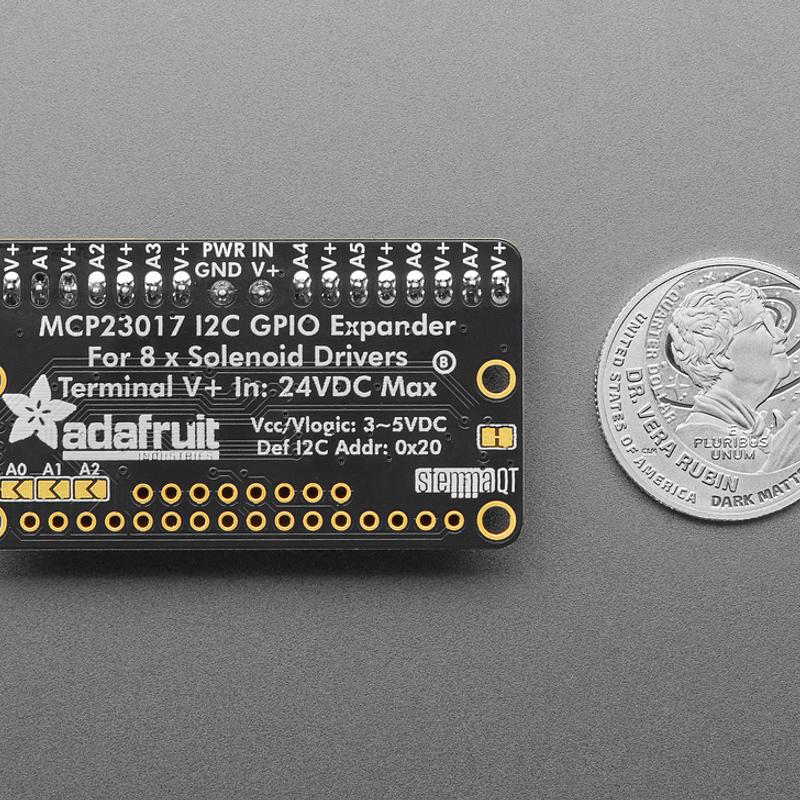

- Address pins: three address pins
- Daisy-chain capacity: up to 8 boards
- Total solenoids when daisy-chained: 64 solenoids
- Power and logic: 3V or 5V power and logic
- Product Dimensions: 51.0mm x 28.0mm x 10.2mm / 2.0" x 1.1" x 0.4"
- Product Weight: 10.7g / 0.4oz
