CharliePlex LED Matrix Bonnet - 8x16 Red LEDs

Name: CharliePlex LED Matrix Bonnet - 8x16 Red LEDs
Brand: Adafruit
SKU: AF-6115
Price: 31.85 AUD
Availability: InStock

· MPN: ADA6115

Displays LED Matrices & Displays Raspberry Pi Hats Raspberry Pi Monitors and Displays

$31.85 |

In stock at supplier

No reviews yet

Add a bright red 16x8 LED matrix to your Raspberry Pi with this Adafruit CharliePlex LED Matrix Display Bonnet. It sits on any Raspberry Pi computer with a 2...

Add to Wishlist

Compare

Estimated Delivery

Arrives

Disclaimer

View Markdown

Secure checkout

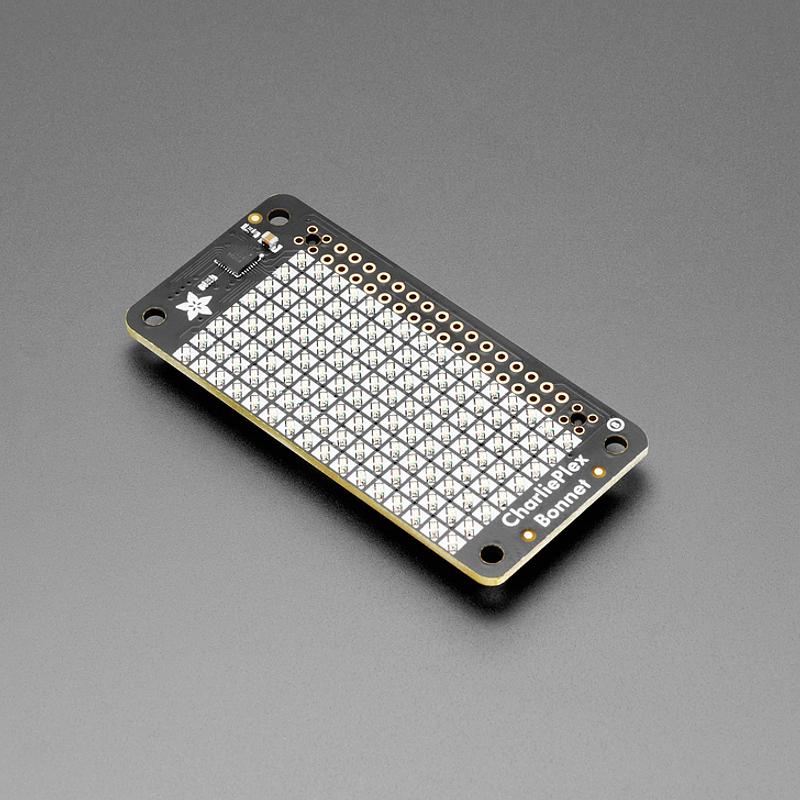

Add a bright red 16x8 LED matrix to your Raspberry Pi with this Adafruit CharliePlex LED Matrix Display Bonnet. It sits on any Raspberry Pi computer with a 2x20 connector, giving you a compact grid of 128 charlieplexed LEDs for patterns, text and simple graphics.

The built-in IS31FL3731 Charlieplex driver runs over I2C, so it only uses the SDA and SCL pins and can share the bus with other I2C devices and sensors. Each LED can be PWM controlled individually, with 8-bit dimming for smooth lighting effects without lots of pin handling.

The driver includes display memory for 8 separate animation frames, letting you prepare multiple frames and switch between them with a single command. The Bonnet comes fully assembled with no soldering required, and Adafruit’s CircuitPython library works on Linux computers such as Raspberry Pi after a pip install.

Features:

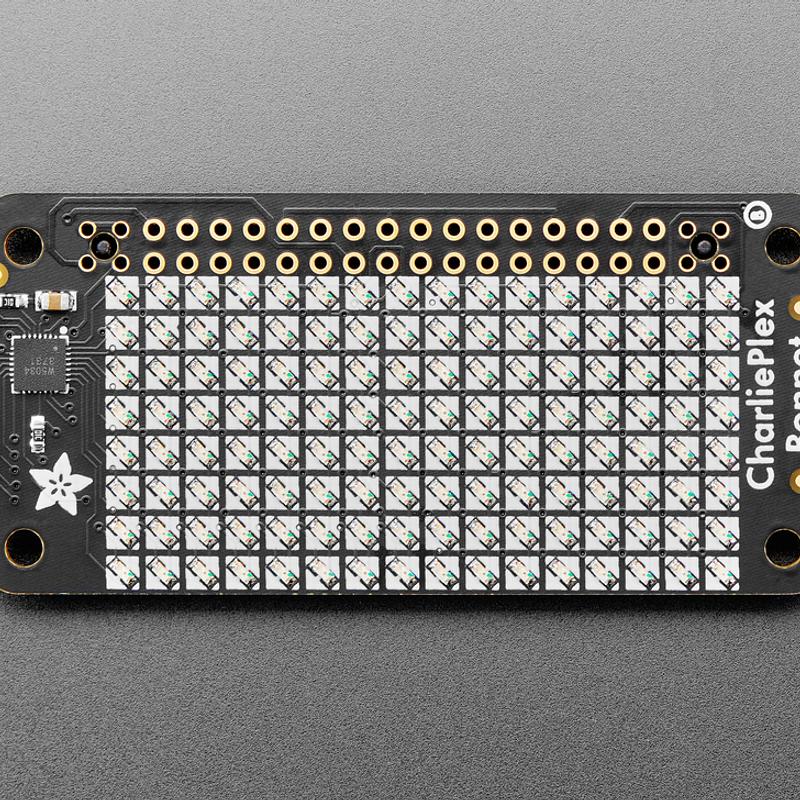

Matrix size: 16x8 LED display with 128 charlieplexed LEDs
LED colour: Red LED matrix
Raspberry Pi fit: Fits any Raspberry Pi computer with a 2x20 connector
Driver: Built-in Charlieplex driver runs over I2C
Individual control: PWM control for each individual LED in the 16x8 grid
Dimming: 8-bit (256 level) dimming for each individual LED

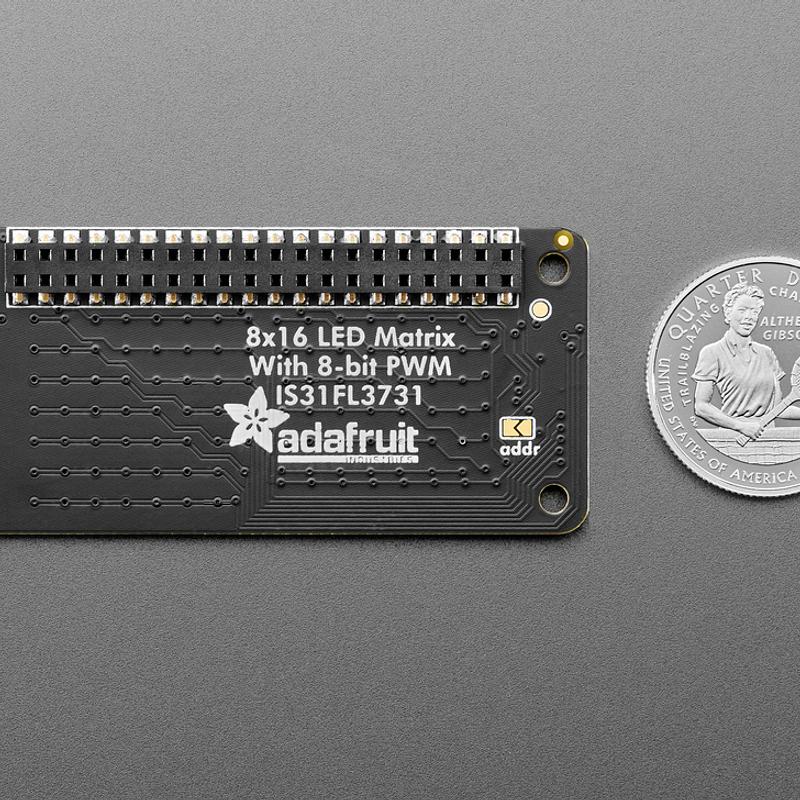

Driver chip: Uses the IS31FL3731
Power: Runs happily over 3.3V power
Animation memory: Enough RAM for 8 separate frames of display memory
I2C pins: Uses only SDA/SCL pins and can share them with other I2C devices and sensors
Assembly: Fully assembled with no soldering required
Software: Uses Adafruit’s CircuitPython library for Linux computers like Raspberry Pi
Examples: Example code is provided for simple graphics or text

Specifications:

Product Dimensions: 65.0mm x 30.6mm x 5.5mm / 2.6" x 1.2" x 0.2"
Product Weight: 8.1g / 0.3oz

Jargon buster

Plain-language definitions for the technical terms used above.

CircuitPython: A beginner-friendly version of Python designed to run directly on microcontroller boards. If a product supports CircuitPython, you can often program it by copying code files onto the board rather than setting up a more complex toolchain.
I2C: I2C is a two-wire communication bus used by many sensors and small modules. It matters because several I2C devices can share the same two wires, but each device needs a compatible address and your controller must support I2C.
LED: A light-emitting diode (LED) is a small electronic component that emits light when current flows through it in the correct direction. Because it only conducts one way, its polarity matters, and a through-hole LED must be soldered the correct way around to light up.
PWM: Pulse Width Modulation is a way for a digital pin to simulate variable output power by switching on and off very quickly. It matters for controlling things like LED brightness, motor speed, or servo-style signals from a microcontroller pin.
RAM: RAM (random-access memory) is fast, temporary memory a device uses for working data while it is running; in its common volatile form, its contents are lost when power is removed. Some devices offer a mode that applies settings to RAM only, which is handy for testing changes temporarily because they are not stored permanently and disappear at power-off.
SDA/SCL: SDA and SCL are the two signal lines used by an I2C bus: data and clock. Seeing these names helps you identify the correct connections when wiring I2C devices, even though Qwiic cables usually hide that wiring for you.
