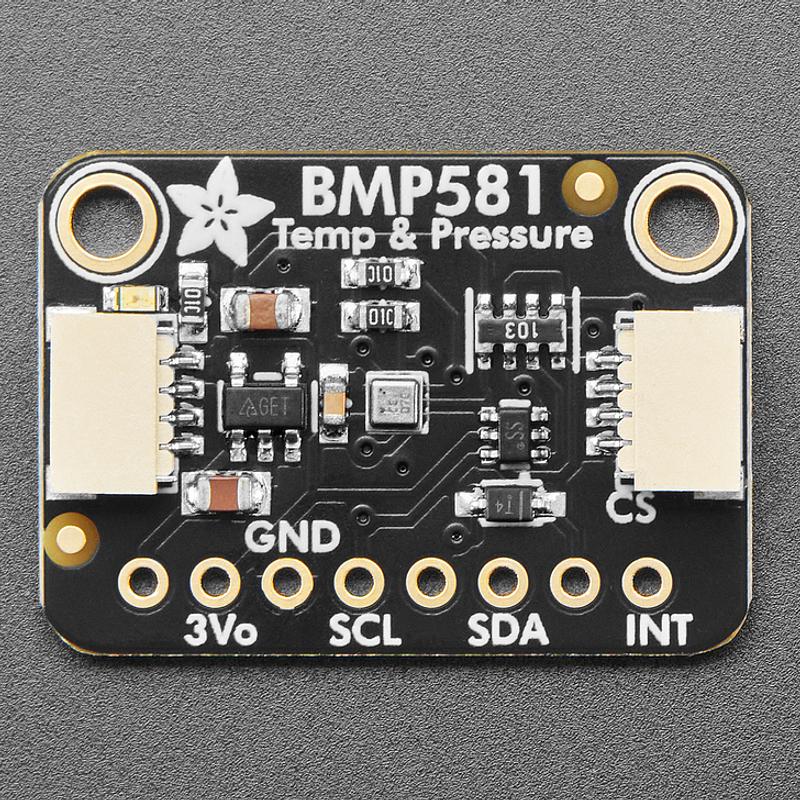

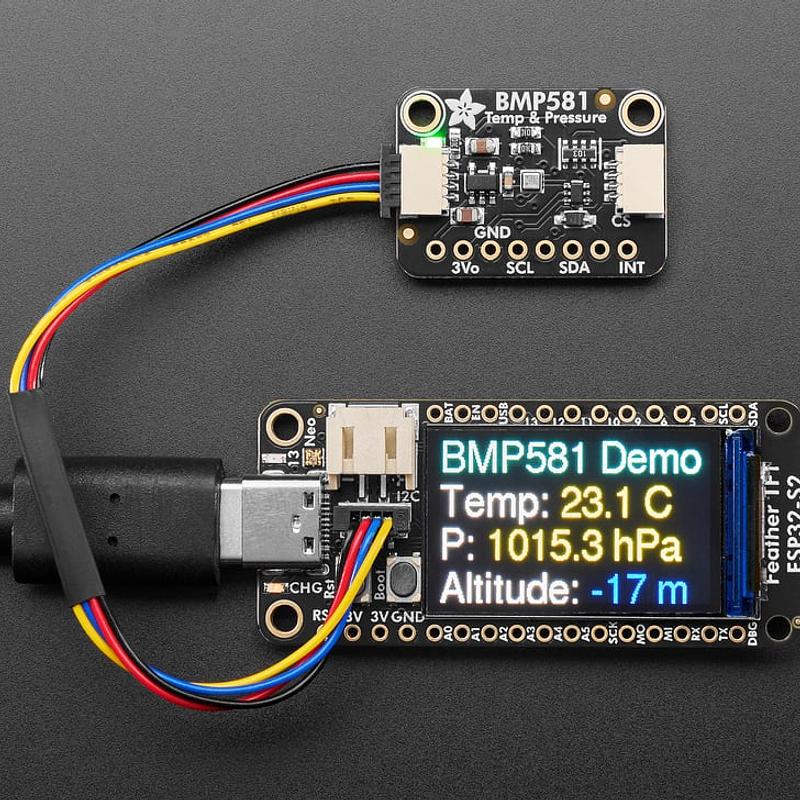

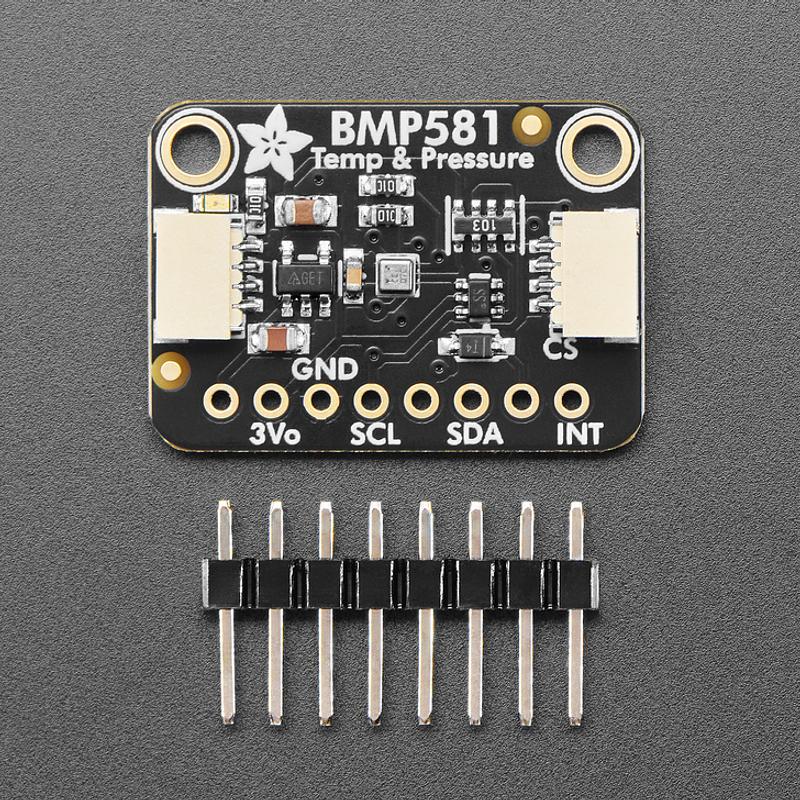

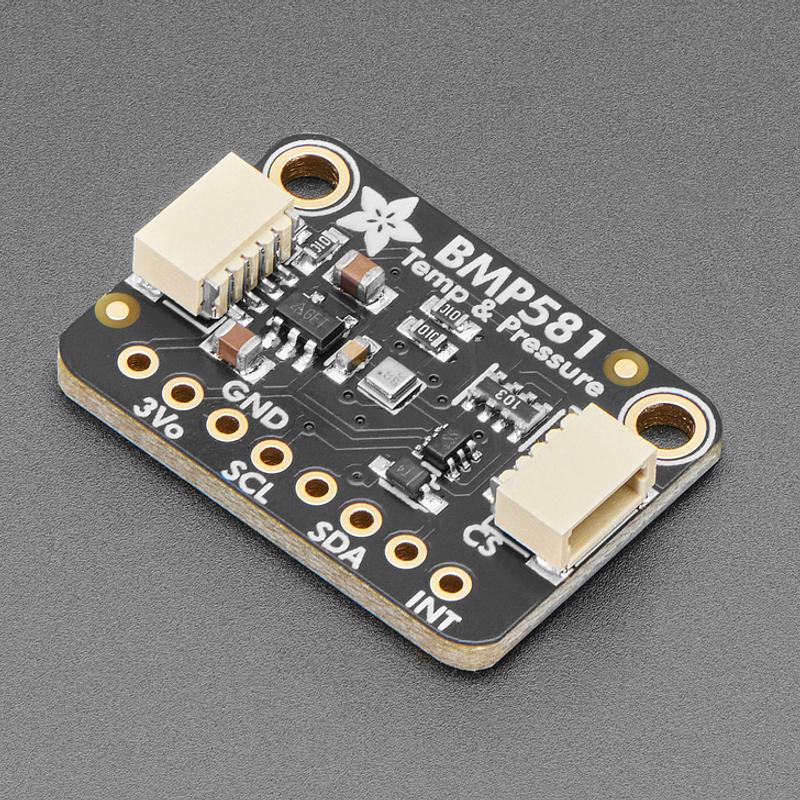

Adafruit BMP581 I2C/SPI Temperature & Pressure Sensor

Jargon buster

Plain-language definitions for the technical terms used above.

3.3V regulator

A 3.3V regulator is a power circuit that provides a steady 3.3 volts for parts that need that supply voltage. On a breakout board, it can let the sensor run safely even when the connected microcontroller or power source uses a higher voltage.

breakout

A breakout board carries a small or fine-pitched component and brings its connections out to standard, breadboard- and header-friendly pins. Describing a part as a breakout means it can be wired into a project without soldering directly to the component's tiny contacts.

I2C

I2C is a two-wire communication bus used by many sensors and small modules. It matters because several I2C devices can share the same two wires, but each device needs a compatible address and your controller must support I2C.

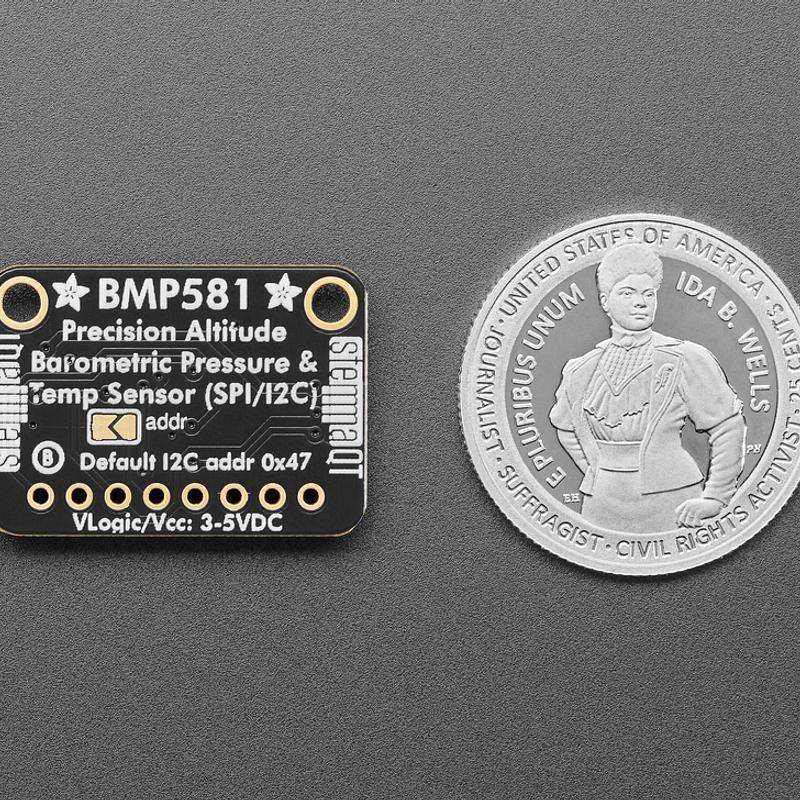

I2C address

An I2C address is the number a device uses so a microcontroller can tell it apart from other devices on the same I2C bus. It matters because two devices with the same fixed address may conflict if used together.

microcontroller

A microcontroller is a small computer on a single chip that runs a stored program and controls connected inputs and outputs such as buttons, sensors, displays and communication interfaces. In a device built around one, it is the part that executes the code and coordinates the device's behaviour.

PCB

A printed circuit board (PCB) is a board, usually rigid, with etched copper tracks that connect electronic components together without loose wiring. Components are mounted on the board and signals route between them through the copper layout.

Qwiic

Qwiic is a plug-in connector system for I2C devices that uses small 4-pin cables, so you can connect compatible sensors without soldering. It matters because your controller or adapter also needs Qwiic, or you will need a cable or breakout to wire it up.

SPI

A fast serial communication bus often used for displays, memory cards, and sensors. It matters because SPI devices need specific pins for clock and data, plus a separate chip-select line for each device.

STEMMA

A plug-and-cable connection system used on some maker electronics boards to make wiring simpler. If a product uses STEMMA, you need the matching cable or connector type to plug it in without soldering.

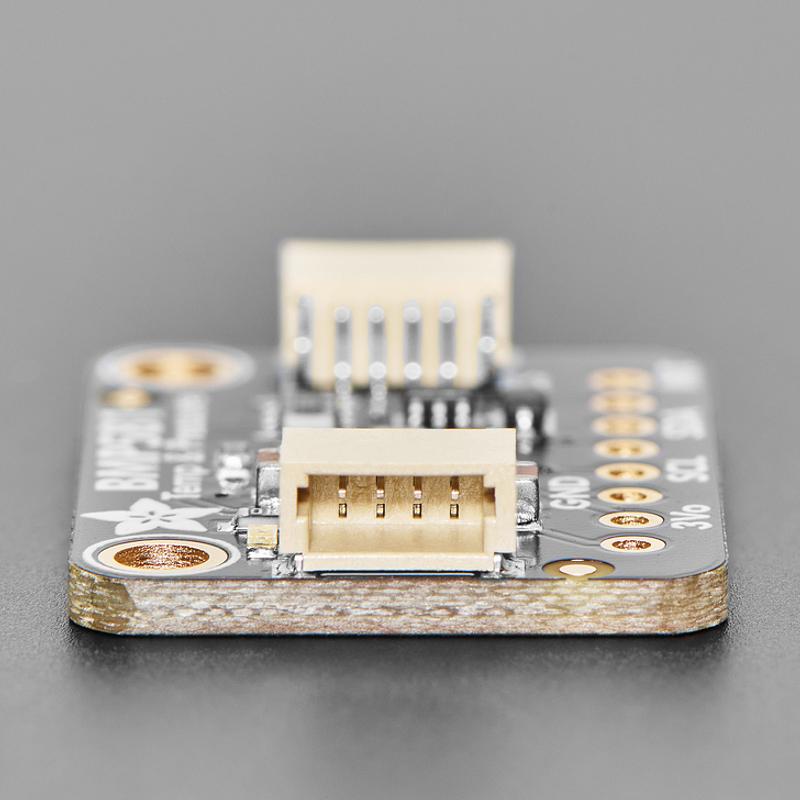

STEMMA QT

A small plug-in connector system for I2C boards that lets you connect compatible sensors and controllers without soldering. It matters because it can make wiring faster and less error-prone, especially when adding several small modules to a project.
