Adafruit AVR ATmegaXX8 Pinout Sticker - 10 pcs
Discontinued

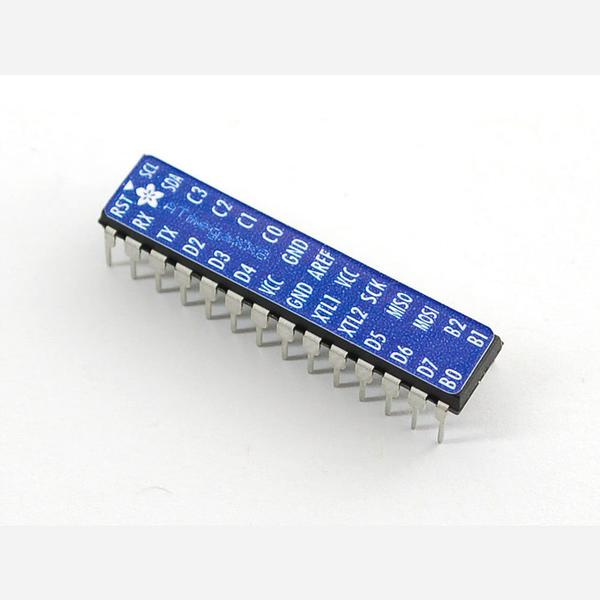

These pinout stickers are designed to fit directly on top of a 28-pin DIP ATmegaXX8 chip, clearly labelling every pin by port name and common function (including I2C and SPI pins). No more looking up the datasheet or schematic mid-project.
Made from tough vinyl (the same material used for bumper stickers), these stickers won't fade, scratch, or wrinkle. Each sticker is die-cut into a rounded rectangle that fits precisely on top of the AVR chip package.
Key Features
- Pin-by-Pin Labelling – Port names and common functions (I2C, SPI) clearly marked
- Durable Vinyl Material – Won't fade, scratch, or wrinkle
- Die-Cut to Fit – Rounded rectangle sized for 28-pin DIP packages
- 10-Pack – Plenty of stickers for multiple projects
Compatible Chips
- ATmega328 / ATmega328P
- ATmega168 / ATmega168P
- ATmega88 / ATmega88P
- ATmega48 / ATmega48P
- ATmega8
Also Available
- AVR Sticker for Breadboard Arduino-Compatibles – Labels pins using Arduino IDE naming conventions
Ideal For
- Breadboard and through-hole AVR projects
- Quick pin identification without datasheets
- Workshop and lab chip labelling
Package Contents
- 10× AVR ATmegaXX8 Pinout Stickers
Note: AVR chips are not included.
